Meraki MA-ANT-3-D6 | Downtilt Omni Antenna, 6x RP-TNC, MR46E/MR53E

MA-ANT-3-D6

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

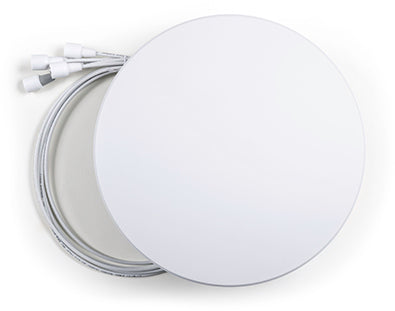

The MA-ANT-3-D6 is an indoor dual-band downtilt panel omnidirectional antenna from the Meraki modular antenna range. It is built for Meraki modular-antenna access points and is certified for the MR46E and MR53E. It suits medium-density indoor deployments with ceiling heights of 8-25 ft, such as cube office space and vestibules, where a low-profile look matters.

The D6 variant provides six RP-TNC connectors and covers 2.400-2.500 GHz and 5.150-5.875 GHz. Gain per element is 2.4 dBi on 2.4 GHz and 3.7 dBi on 5 GHz. Coverage is omni-directional with a 360 degree horizontal beamwidth and a 60 degree vertical beamwidth centred at a 45 degree down angle. It uses 1 m RG316 cables and is housed in PC-ABS, measuring 225 mm x 37 mm.

This is a passive antenna with no power requirement, as power comes from the host access point. The antenna itself needs no licence, although the MR46E or MR53E it connects to needs a Meraki cloud licence. It mounts to walls, poles and ceiling tiles, and a flush-mount solution is included. Optional horizontal (MA-MNT-ANT-3) and vertical (MA-MNT-ANT-4) mounting brackets are available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Suited to medium ceiling (8-25 ft) installations where aesthetics matter
- Dual-band coverage across 2.4 GHz and 5 GHz
- Omni-directional 360 degree horizontal coverage with downtilt pattern
- Mounts to walls, poles and ceiling tiles
- Flush-mount solution included
- Optional horizontal (MA-MNT-ANT-3) and vertical (MA-MNT-ANT-4) mounting brackets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omni-directional
- Connectors: 6 x RP-TNC
- Frequency range: 2.400-2.500 GHz, 5.150-5.875 GHz
- Gain per element: 2.4 dBi (2.4 GHz) / 3.7 dBi (5 GHz)
- Polarisation: Linear, vertical/horizontal
- Horizontal beamwidth: 360 degrees
- Vertical beamwidth: 60 degrees / 60 degrees
- Down angle: centred at +/- 45 degrees
- Cables: Aliner RG316, 1 m
- Dimensions: 225 mm x 37 mm (8.86 in x 1.46 in)
- Weight: 0.59 kg (20.81 oz)
- Material: PC-ABS
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5% to 93%
- Mounting: walls, poles and ceiling tiles
- Certified for: MR46E and MR53E

FAQs

Q: Which access points is the MA-ANT-3-D6 certified for?
A: It is certified for use with the Meraki MR46E and MR53E modular-antenna access points.

Q: Does this antenna need a licence?
A: No, the antenna itself needs no licence. The host MR46E or MR53E access point needs a Meraki cloud licence.

Q: Does the antenna need power?
A: No. It is a passive antenna and power comes from the host access point.

Q: How does the D6 differ from the D5?
A: The D6 is the six-port version for the MR46E and MR53E. The D5 is the five-port version for the MR42E.

Q: What ceiling heights is it designed for?
A: It suits medium ceiling heights of 8-25 ft, such as cube office space and vestibules.

Q: What mounting options are available?
A: It mounts to walls, poles and ceiling tiles, and a flush-mount solution is included. Optional brackets are the MA-MNT-ANT-3 horizontal and MA-MNT-ANT-4 vertical mounts.
