• Meraki MA-ANT-3-D5 indoor dual-band downtilt omni antenna with 5 RP-TNC
1 1

Meraki

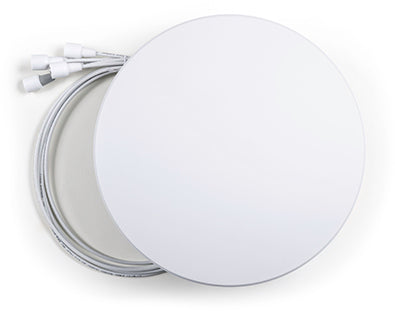

Meraki MA-ANT-3-D5 | Modular 5-Port Dual-Band Downtilt Omni Antenna

MA-ANT-3-D5

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MA-ANT-3-D5 is an indoor dual-band downtilt omnidirectional antenna for Meraki modular-antenna access points such as the MR42E. It suits deployments where the access point is mounted high, for example on a ceiling or in a warehouse, and coverage needs to be directed downward.

The antenna covers both the 2.4 GHz and 5 GHz bands, with a stated gain of 3.7 dBi and a downtilt omni pattern. It provides five RP-TNC connectors, one for each antenna port on the host access point. It is a passive antenna, so no power supply is required. The antenna itself needs no licence, although the host MR42E requires a Meraki cloud licence.

This is the downtilt omni, 5-port variant of the Meraki modular antenna range, which sets it apart from other antenna patterns offered for the same access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band operation across 2.4 GHz and 5 GHz
- Downtilt omni pattern directs coverage downward from high mounting positions
- Five RP-TNC connectors match the antenna ports on the host access point
- Passive design with no external power needed
- Designed for indoor deployments such as ceilings and warehouses

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Indoor downtilt omnidirectional antenna
- Frequency bands: 2.4 GHz and 5 GHz dual-band
- Gain: 3.7 dBi
- Connectors: 5 x RP-TNC
- Pattern: Downtilt omni
- Power: Passive, no power required
- Intended host: Meraki modular-antenna access points (MR42E)

FAQs

Q: Does this antenna need a licence?
A: No licence is required for the antenna itself. The host access point, such as the MR42E, needs a Meraki cloud licence.

Q: Does it need power?
A: No. It is a passive antenna and draws no power. The host access point supplies the radio.

Q: Which access points does it work with?
A: It is intended for Meraki modular-antenna access points, specifically the MR42E.

Q: How does this differ from other Meraki modular antennas?
A: This is the downtilt omni, 5-port, dual-band 3.7 dBi variant, designed to direct coverage downward when the access point is mounted high.
