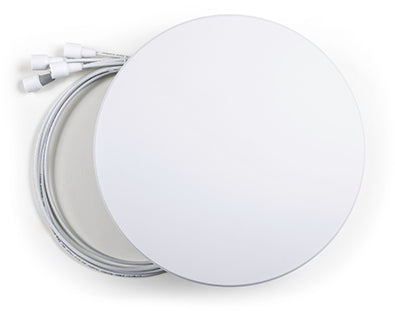

Meraki MA-ANT-3-C6 | Indoor Dual-Band Panel Omni Antenna, 6x RP-TNC, 4.9 dBi

MA-ANT-3-C6

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Meraki indoor dual-band panel omni antenna is a low-profile ceiling antenna for Meraki modular-antenna access points, specifically the MR46E and MR53E. It suits low-ceiling, aesthetics-conscious installations and areas where wall penetration or extended reach matters, such as schools and hotels where access points mounted in hallways cover the adjacent rooms.

The antenna provides six RP-TNC connectors, one for each radio chain of the modular access point, and operates across both the 2.4 GHz and 5 GHz bands. Gain is 4.9 dBi per element on each band. It is an omnidirectional panel design with linear vertical and horizontal polarisation and a 60 degree vertical half-power beamwidth. The antenna is passive and needs no power. It measures 300 mm x 35 mm, weighs 1.05 kg and is built from PC-ABS.

This 6-port C6 antenna is the match for the MR46E and MR53E. It is a different part from the C5 antenna used with the MR42E.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-profile design suited to low-ceiling, aesthetics-conscious installations
- Good where wall penetration or extended reach is important
- Suited to low-density, best-effort deployments such as schools and hotels
- Typically used with access points mounted in hallways to cover adjacent rooms
- Six RP-TNC connections cover all radio chains of the modular access point
- Dual-band operation across 2.4 GHz and 5 GHz

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Omni (panel)
- Connectors: 6 x RP-TNC
- Frequency range: 2.400-2.500 GHz and 5.150-5.875 GHz
- Gain per element: 4.9 dBi (2.4 GHz) / 4.9 dBi (5 GHz)
- Polarisation: Linear, vertical/horizontal
- Horizontal beamwidth: Omni
- Vertical half-power beamwidth: 60 degrees
- Dimensions: 300 mm x 35 mm (11.81 in x 1.38 in)
- Weight: 1.05 kg (37.04 oz)
- Material: PC-ABS
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5% to 95%
- Power: Passive, no power required
- Compatible access points: Meraki MR46E and MR53E

FAQs

Q: Which access points does the MA-ANT-3-C6 work with?
A: It is the 6-port C6 antenna for the Meraki modular-antenna access points MR46E and MR53E.

Q: Does the antenna need power?
A: No. It is a passive antenna, so it needs no power supply or PoE of its own.

Q: Can I use this antenna with an MR42E?
A: No. The MR42E uses the MA-ANT-3-C5 antenna. The MA-ANT-3-C6 is for the MR46E and MR53E.

Q: Which bands and what gain does it provide?
A: It covers 2.4 GHz and 5 GHz, with 4.9 dBi gain per element on each band.

Q: Where is this antenna best deployed?
A: It suits indoor, low-density deployments such as schools and hotels, and low-ceiling areas where appearance matters. Access points in hallways can cover adjacent rooms.
