• Meraki MA-ANT-3-C5 indoor dual-band panel omni antenna for MR42E APs
1 1

Meraki

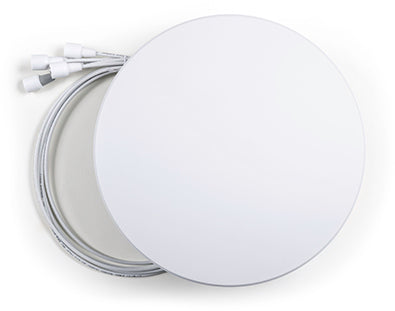

Meraki MA-ANT-3-C5 | Indoor Dual-Band Panel Omni Antenna, 5-Port, 4.9 dBi

MA-ANT-3-C5

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MA-ANT-3-C5 is an indoor dual-band panel omnidirectional antenna built for the modular-antenna Meraki MR42E (Wi-Fi 5) access point. It suits offices, classrooms and similar indoor spaces with low to medium client density, where omnidirectional coverage is needed from ceiling-mounted access points.

The antenna covers both the 2.4 GHz and 5 GHz bands with an equal gain of 4.9 dBi on each. It provides five RP-TNC connectors to match the MR42E antenna ports, and a 360 degree horizontal beamwidth with a 60/60 degree vertical beamwidth. The recommended ceiling height is 8 to 15 ft (2.5 to 4.5 m).

It belongs to the Meraki A to F modular antenna range, which lets installers pick the pattern that suits the environment. The five-port C5 is for the MR42E only, while the six-port C6 is the equivalent for the MR46E and MR53E. It is a passive antenna, so it needs no power and no licence of its own.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Panel-style omnidirectional pattern with 360 degree horizontal coverage for indoor use
- Equal 4.9 dBi gain on both 2.4 GHz and 5 GHz bands
- Five-port design matches the MR42E antenna connectors
- Suited to low to medium density environments
- Passive design with no power draw
- Part of the Meraki A to F modular antenna range for choosing the right pattern per environment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Panel Omni
- Bands: Dual-band 2.4 GHz and 5 GHz
- 2.4 GHz gain: 4.9 dBi
- 5 GHz gain: 4.9 dBi
- Connectors: 5 x RP-TNC
- Half-power beamwidth: 360 deg horizontal, 60/60 deg vertical
- Recommended ceiling height: 8-15 ft (2.5-4.5 m)
- Client density: Low to Medium
- Power: Passive, no power required
- Compatible access point: Meraki MR42E (3x3:3)

FAQs

Q: Which access point does the MA-ANT-3-C5 work with?
A: It is made for the Meraki MR42E, the 3x3:3 modular-antenna Wi-Fi 5 access point with five antenna connectors. The six-port C6 antenna is the equivalent for the MR46E and MR53E.

Q: Does this antenna need a licence?
A: No. The antenna is passive and needs no licence. The host MR42E access point needs a Meraki Enterprise or Advanced AP licence to be managed in the Meraki dashboard.

Q: Does it need power?
A: No. It is a passive antenna and draws no power. The connected access point supplies power to the radios.

Q: What ceiling height and environment is it suited to?
A: It is recommended for ceiling heights of 8 to 15 ft (2.5 to 4.5 m) in low to medium density indoor spaces such as offices and classrooms.

Q: Can I use it with the CW9174E?
A: No. The CW9174E uses DART8 connectors and its own CW-ANT tri-band antennas, so it is not compatible with this RP-TNC antenna.
