Meraki MA-ANT-3-B6 | MR Dual-Band Dipole Antenna 6-Pack, 3/5.7 dBi, MR46E/MR53E
SKU:MA-ANT-3-B6
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

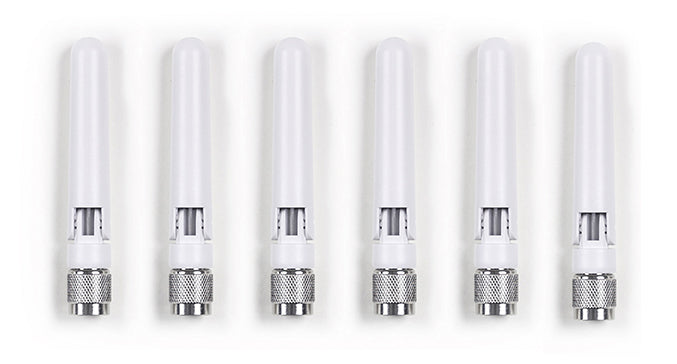

The Meraki MA-ANT-3-B6 is a pack of six bendable indoor dual-band omnidirectional dipole antennas for Meraki MR46E and MR53E access points. It suits low-ceiling installations such as schools and hotels, where access points are often mounted in hallways to cover adjacent rooms, or on walls and uneven surfaces.
Each antenna covers 2.4 GHz and 5 GHz with 3 dBi gain on 2.4 GHz and 5.7 dBi gain on 5 GHz. The omnidirectional pattern gives 360-degree horizontal coverage, with a 40 degree vertical beamwidth. Antennas connect via RP-TNC connectors, and the bendable design allows the angle to be adjusted to suit the mounting position. The MR46E and MR53E each use six antennas, so one pack covers one access point.
These are passive antennas and need no power or licence of their own. The host MR46E or MR53E access point requires a Meraki cloud-management licence. The 5-pack MA-ANT-3-B5 is the equivalent part for the MR42E.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Bendable dipole design for installs on walls or uneven surfaces
- 360-degree horizontal omnidirectional coverage
- Dual-band operation on 2.4 GHz and 5 GHz
- Suited to low-ceiling installs where wall penetration or extended reach matter
- Designed for indoor use
- Certified for use with the MR46E and MR53E
- Passive design, no power required
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Antenna type: Dipole, omnidirectional
- Frequency range: 2.400-2.500 GHz and 5.150-5.875 GHz
- Gain: 3 dBi (2.4 GHz) / 5.7 dBi (5 GHz)
- Polarisation: Linear, vertical/horizontal
- Horizontal beamwidth: Omnidirectional
- Vertical half power beamwidth: 40 degrees
- Connector: RP-TNC
- Pack quantity: 6 antennas
- Dimensions: 89.3 mm x 14.5 mm
- Weight: 20.19 g per antenna
- Material: PC-ABS
- Operating temperature: 0 to 40 C
- Humidity: 5% to 95%
- Environment: Indoor use
- Compatibility: Meraki MR46E and MR53E
FAQs
Q: Which access points does this antenna pack work with?
A: It is designed for the Meraki MR46E and MR53E. Each of these access points uses six antennas, so one 6-pack covers one access point.
Q: Is the MA-ANT-3-B6 suitable for the MR42E?
A: No. The MR42E uses the 5-pack MA-ANT-3-B5. The MA-ANT-3-B6 is the 6-pack for the MR46E and MR53E.
Q: Do these antennas need a licence or power?
A: No. They are passive antennas and need neither. The host MR46E or MR53E access point requires a Meraki cloud-management licence.
Q: What connector do the antennas use?
A: They use RP-TNC connectors, matching the external antenna ports on the MR46E and MR53E.
Q: Can these antennas be used outdoors?
A: No. They are designed for indoor use, with an operating temperature range of 0 to 40 C.
