Meraki MA-ANT-3-B5 | MR Dual-Band Bendable Dipole Antenna 5-Pack, 5.7 dBi
SKU:MA-ANT-3-B5
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

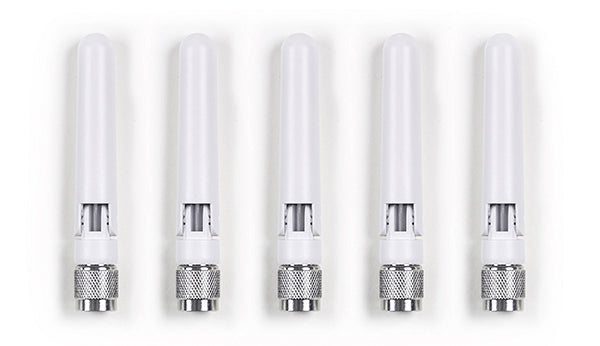

The MA-ANT-3-B5 is a pack of five bendable dual-band omni-directional dipole antennas from the Meraki MR External Antennas range, certified for the Meraki MR42E access point. It suits low-density, best-effort indoor deployments such as schools and hotels, where access points are mounted on walls or uneven surfaces and basic connectivity is needed.
Each antenna covers both the 2.4 GHz and 5 GHz bands, with 3.0 dBi gain at 2.4 GHz and 5.7 dBi at 5 GHz. The omni-directional horizontal pattern has a 40 degree vertical beamwidth, and the bendable base lets installers adjust the antenna angle to tune coverage. Each antenna uses an RP-TNC connector, measures 89.3 x 14.5 x 14.5 mm and weighs 20.2 g.
The antennas are passive and need no power or licence of their own. They attach directly to the external antenna connectors on the MR42E. The connected access point requires its own Meraki cloud licence.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Bendable, adjustable base for optimum signal control
- Dual-band omni-directional coverage on 2.4 GHz and 5 GHz
- Certified for use with the Meraki MR42E access point
- Flexible indoor installation on walls or uneven surfaces
- Passive design with no power or software requirements
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Antenna type: Dipole
- Quantity: 5 antennas per pack
- Frequency range: 2.400-2.500 GHz and 5.150-5.875 GHz
- Gain: 3.0 dBi (2.4 GHz) / 5.7 dBi (5 GHz)
- Polarisation: Linear, vertical/horizontal
- Horizontal beamwidth: Omni-directional
- Vertical beamwidth: 40 degrees
- Connector: RP-TNC
- Operating temperature: 0 to 40 C
- Operating humidity: 5 to 95% RH, non-condensing
- Mounting: Attaches directly to the MR42E antenna connectors
- Dimensions (each): 89.3 x 14.5 x 14.5 mm
- Weight (each): 20.2 g
- Colour: White
- Power: Passive, no power required
FAQs
Q: Which access point is this antenna pack certified for?
A: The MA-ANT-3-B5 is certified for the Meraki MR42E, which has RP-TNC external antenna connectors.
Q: Does this antenna need a licence?
A: No. The antenna is a passive accessory. The connected MR42E access point needs a Meraki cloud licence.
Q: Does the antenna need power?
A: No. It is a passive antenna and needs no power supply.
Q: Where is this antenna best deployed?
A: It suits low-density, best-effort indoor deployments such as schools and hotels, particularly where access points are mounted on walls or uneven surfaces.
Q: Is the MA-ANT-3-B5 suitable for the MR53E?
A: No. The MR53E uses a different antenna part, MA-ANT-3-A1/6. The MA-ANT-3-B5 is intended for the MR42E.
