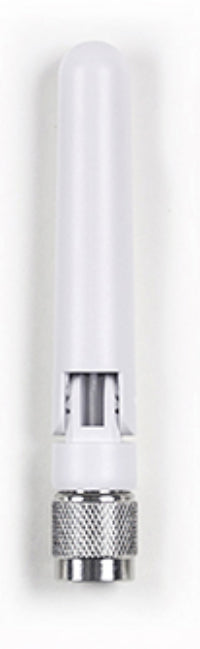

Meraki MA-ANT-3-B1 | MR Dual-Band Dipole Antenna, 3/5.7 dBi, RP-TNC
SKU:MA-ANT-3-B1
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Meraki Indoor Bendable Dual-band Omni Dipole Antenna is a single-unit antenna for Meraki MR access points that use external antenna connectors. It gives 360-degree omnidirectional coverage and suits low-density indoor deployments such as schools and hotels, particularly where ceilings are low and access points are mounted on walls or uneven surfaces.
The antenna covers both the 2.4 GHz and 5 GHz bands, from 2.400 to 2.500 GHz and 5.150 to 5.875 GHz. Peak gain is 3 dBi on 2.4 GHz and 5.7 dBi on 5 GHz, with a 40-degree vertical beamwidth and linear polarisation. It connects through an RP-TNC connector, and the bendable dipole design lets the radiating element be angled to suit the mounting position. This listing is for a single unit (1-pack).
It is a passive accessory, so it needs no power and no licence. It is certified for use with the Meraki MR42E and MR53E.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 360-degree omnidirectional coverage
- Dual-band operation across 2.4 GHz and 5 GHz
- Bendable dipole design for walls or uneven surfaces
- Suited to low-ceiling installations where wall penetration or extended reach is important
- Passive design with no power requirement
- Positioned for low-density deployments such as schools and hotels
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Antenna type: Dipole
- Frequency range: 2.400-2.500 GHz, 5.150-5.875 GHz
- Gain: 3 dBi (2.4 GHz) / 5.7 dBi (5 GHz)
- Polarisation: Linear, vertical/horizontal
- Horizontal beamwidth: Omni (360 degrees)
- Vertical beamwidth: 40 degrees
- Directivity: Omni-directional
- Connector: RP-TNC
- Dimensions: 89.3 mm x 14.5 mm (3.51 in x 0.57 in)
- Weight: 20.19 g (0.71 oz)
- Material: PC-ABS
- Operating temperature: 0 to 40 C (32 to 104 F)
- Operating humidity: 5% to 95%
- Placement: Indoor
- Compatible access points: Meraki MR42E, MR53E
FAQs
Q: Which Meraki access points does this antenna work with?
A: It is certified for use with the Meraki MR42E and MR53E, the models with external antenna connectors.
Q: Does this antenna need a licence or power?
A: No. It is a passive accessory, so it needs no power and no licence.
Q: What connector does it use?
A: It uses an RP-TNC connector.
Q: Is this a single antenna or a multi-pack?
A: This listing is for a single unit (1-pack). The same antenna is also sold as MA-ANT-3-B5 (5-pack) and as a 6-pack.
Q: Where is this antenna best used?
A: It is designed for indoor use and suits low-ceiling, low-density deployments such as schools and hotels, where the bendable dipole can be angled to suit wall or uneven-surface mounting.
