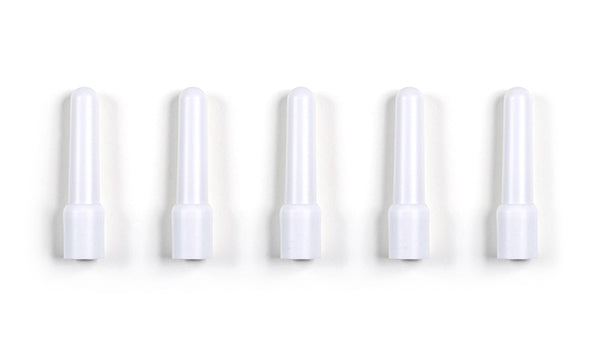

• Meraki MA-ANT-3-A5 indoor dual-band dipole antennas 5-pack
1 1

Meraki

Meraki MA-ANT-3-A5 | MR Dual-Band Dipole Antenna 5-Pack, 5.5 dBi, RP-TNC

MA-ANT-3-A5

5 in stock

$189.00 inc. GST
$171.82 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This is a Meraki MR Access Point Accessories pack of five indoor dual-band dipole antennas, built for the Meraki MR42E access point, which takes external antennas. It suits indoor Wi-Fi deployments where antenna placement or orientation matters, such as environments where the access point needs to be positioned away from the area being served.

Each antenna covers both Wi-Fi bands, 2.400-2.500 GHz and 5.150-5.875 GHz, with a gain of 3.8 dBi at 2.4 GHz and 5.5 dBi at 5 GHz. The pattern is omni-directional in the horizontal plane with a 40 degree vertical half power beamwidth, and polarisation is linear, vertical or horizontal. All five antennas use RP-TNC connectors and are finished in white.

The antennas are passive, so they need no power, and no licence is required for the antennas themselves. The host access point still needs a Meraki cloud licence. They are certified for use with the Meraki MR42E.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Certified for use with the Meraki MR42E access point
- Dipole antenna design for indoor deployments
- Dual-band coverage for 2.4 GHz and 5 GHz Wi-Fi
- Omni-directional horizontal pattern for even coverage around the antenna
- Passive design with no power or configuration needed
- Five antennas per pack for fitting several external-antenna access points

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: MA-ANT-3-A5
- Type: Dipole
- Antennas per pack: 5
- Frequency range: Dual band 2.400-2.500 GHz and 5.150-5.875 GHz
- Antenna gain, 2.4 GHz band: 3.8 dBi
- Antenna gain, 5 GHz band: 5.5 dBi
- Polarisation: Linear, vertical/horizontal
- Half power beamwidth, horizontal: Omni-directional
- Half power beamwidth, vertical: 40 degrees
- Connector: RP-TNC
- Colour: White
- Power: Passive, no power required

FAQs

Q: Which Meraki access point does this antenna pack work with?
A: It is certified for the Meraki MR42E, the MR model that takes external antennas.

Q: Does the antenna pack need a licence?
A: No licence is needed for the antennas themselves. The access point they connect to still needs a Meraki cloud licence.

Q: Do the antennas need power?
A: No. They are passive antennas and draw no power.

Q: What gain do the antennas provide?
A: Each antenna provides 3.8 dBi at 2.4 GHz and 5.5 dBi at 5 GHz.
