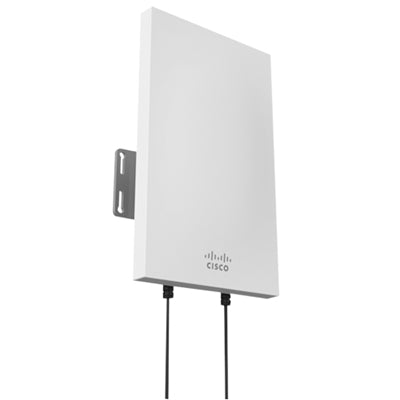

• Meraki MA-ANT-27 dual-band sector antenna with white Cisco access point
1 1

Meraki

Meraki MA-ANT-27 | Dual-Band Sector Antenna, 12 dBi, N-Type, 2.4/5 GHz

MA-ANT-27

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The MA-ANT-27 is a dual-band sector antenna for the 2.4 GHz and 5 GHz bands, designed for use with Meraki MR74 series outdoor access points. A sector antenna focuses coverage into a defined area, which suits outdoor and high-density wireless deployments where directional coverage is needed.

It offers 12 dBi of gain on 2.4 GHz and 9 dBi on 5 GHz, covering 2.4 to 2.5 GHz and 5.15 to 5.875 GHz. Horizontal beamwidth is 65 degrees on 2.4 GHz and 86 degrees on 5 GHz, while vertical beamwidth is 18 degrees and 34 degrees respectively. Connection is by N-Type connector, and the antenna is a passive unit that needs no power supply.

The antenna can be wall mounted or pole mounted and is suitable for indoor or outdoor deployment alongside compatible Meraki MR74 series access points.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band 2.4 GHz and 5 GHz sector coverage
- Directional pattern suited to high-density and outdoor deployments
- N-Type connector for the access point antenna ports
- Passive design with no power supply required
- Wall or pole mounting options
- Suitable for indoor or outdoor deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Dual-band sector antenna
- Gain: 12 dBi (2.4 GHz), 9 dBi (5 GHz)
- Frequency range: 2.4 to 2.5 GHz and 5.15 to 5.875 GHz
- Horizontal beamwidth: 65 degrees (2.4 GHz), 86 degrees (5 GHz)
- Vertical beamwidth: 18 degrees (2.4 GHz), 34 degrees (5 GHz)
- Connector: N-Type
- Mounting: Wall or pole mount
- Deployment: Indoor or outdoor
- Compatible with: Meraki MR74 series

FAQs

Q: Which Meraki access points does this antenna work with?
A: The MA-ANT-27 is designed for use with Meraki MR74 series outdoor access points.

Q: Does the antenna need power?
A: No. It is a passive antenna and does not require a separate power supply.

Q: Which frequency bands does it cover?
A: It covers 2.4 to 2.5 GHz and 5.15 to 5.875 GHz.

Q: How can it be mounted?
A: It can be wall mounted or mounted on a pole.

Q: What connector does it use?
A: It uses an N-Type connector.
