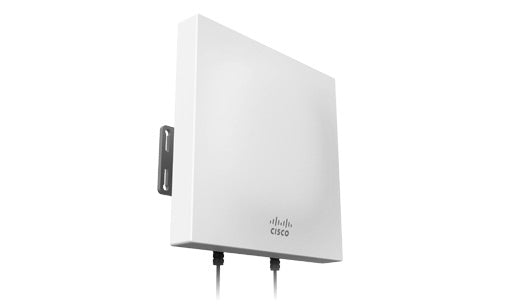

• Meraki MA-ANT-25 dual-band 8 dBi directional patch antenna with white access point
1 1

Meraki

Meraki MA-ANT-25 | Dual-Band Patch Antenna, 8 / 6.5 dBi, 2x N-Type

MA-ANT-25

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MA-ANT-25 is a MIMO dual-band patch antenna from the Meraki Outdoor AP Antennas range. It is a directional sector antenna suited to client coverage over focused areas, as well as point-to-point or point-to-multipoint backhaul links with Meraki outdoor access points that have N-type connectors.

It operates across 2.4 GHz and 5 GHz, with 8 dBi gain on 2.4 GHz and 6.5 dBi on 5 GHz paired with linear vertical and horizontal polarisation. Half power beamwidth is 60 degrees on one band and 75 degrees on the other. Two N-type connectors support 4x4:4 access points, where two antennas are used. The housing is UV resistant plastic, rated for operation from -40 to 70 degrees Celsius, and the antenna mounts to walls and poles.

This antenna is certified for use with the Meraki MR72, MR74, MR76, MR84 and MR86 outdoor access points. It is a passive accessory, so it needs no power and no licence of its own. The connected access point carries its own Meraki licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- MIMO dual-band 2.4 GHz and 5 GHz operation
- Directional patch design for focused client coverage
- Suited to point-to-point and point-to-multipoint backhaul links
- Designed for Meraki access points with N-type connectors
- UV resistant plastic housing for outdoor use
- Mounts to walls and poles
- Passive antenna with no power or licence requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: sector (directional patch)
- Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz
- Gain: 8 / 6.5 dBi
- Polarisation: linear, vertical / horizontal
- Half power beamwidth (horizontal): 60° / 75°
- Connector: 2 x N-type
- Weight: 512 g (1.1 lbs)
- Material: UV resistant plastic
- Operating temperature: -40 to 70 °C (-40 to 158 °F)
- Mounting: wall and pole
- Power: passive, no power required
- Certified for: MR72, MR74, MR76, MR84, MR86

FAQs

Q: Does this antenna need a licence?
A: No. It is a passive antenna accessory and needs no licence. The access point it connects to requires its own Meraki licence.

Q: Which Meraki access points is it designed for?
A: It is certified for the MR72, MR74, MR76, MR84 and MR86 outdoor access points, which use N-type connectors.

Q: How many antennas do I need per access point?
A: Use a quantity of 2 with 4x4:4 access points. Each antenna provides two N-type connectors.

Q: Does it need any power?
A: No. It is a passive antenna and draws no power.

Q: What is the difference between the 8 dBi and 6.5 dBi figures?
A: It is a dual-band antenna. The two figures are the gain for each of its two frequency bands, 2.4 GHz and 5 GHz.
