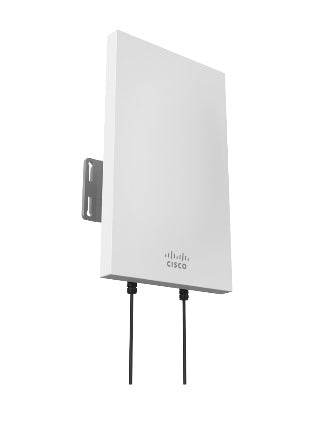

• Meraki MA-ANT-23 2.4 GHz outdoor sector antenna with 11 dBi gain
1 1

Meraki

Meraki MA-ANT-23 | Outdoor Antenna, 2.4 GHz, 11 dBi, Sector, N-type

MA-ANT-23

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MA-ANT-23 is a 2.4 GHz sector antenna from the Meraki Outdoor Antennas range. It focuses RF energy in one direction, which suits targeted client coverage over a defined area as well as wireless mesh and point-to-point backhaul links on Meraki outdoor access points that use N-type connectors.

It delivers 11 dBi of gain across the 2.4 to 2.5 GHz band in a 2x2 MIMO design, with a half-power beamwidth of 70 degrees horizontal by 40 degrees vertical. The housing is outdoor-rated and measures 233 x 140 x 40 mm, weighing 0.525 kg, with an operating temperature range of -40 to 70 C. Being a passive antenna, it needs no power supply or PoE.

Meraki documentation lists the ANT-23 as supported on the MR74 and MR76 outdoor access points. It is not listed for the MR84 or MR86, and it is not intended for the Wi-Fi 6E CW9163E, which uses its own dedicated antennas.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Focuses 2.4 GHz RF energy in one direction for client coverage over targeted areas
- Suited to wireless mesh and point-to-point backhaul links
- 2x2 MIMO sector design for Meraki outdoor access points with N-type connectors
- Lightweight, rugged outdoor-rated housing
- Operating temperature range of -40 to 70 C
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Sector (directional)
- Band: 2.4 GHz (2.4 to 2.5 GHz)
- Gain: 11 dBi at 2.4 GHz
- MIMO: 2x2
- Connector: N-type
- Half-power beamwidth: 70 degrees horizontal x 40 degrees vertical
- Dimensions: 233 x 140 x 40 mm
- Weight: 0.525 kg
- Operating temperature: -40 to 70 C
- Power: Passive, no power supply or PoE required

FAQs

Q: Which Meraki access points does the MA-ANT-23 work with?
A: Meraki documentation lists the ANT-23 as supported on the MR74 and MR76 outdoor access points. It is not listed as supported on the MR84 or MR86.

Q: Does it need power or PoE?
A: No. It is a passive antenna, so no power supply or PoE is required.

Q: Can it be used with indoor access points or the MR70 and MR78?
A: No. Indoor access points, the MR70 and the MR78 use integrated antennas and do not support external antennas.

Q: Can I use it with the Wi-Fi 6E CW9163E?
A: No. The CW9163E uses the CW-ANT-O1-NS-00 and CW-ANT-D1-NS-00 antennas instead.

Q: Does it cover the 5 GHz band?
A: No. The MA-ANT-23 is a 2.4 GHz-only antenna and has no 5 GHz or 6 GHz gain.
