• Meraki MA-ANT-21 5GHz outdoor sector antenna with 13dBi gain
1 1

Meraki

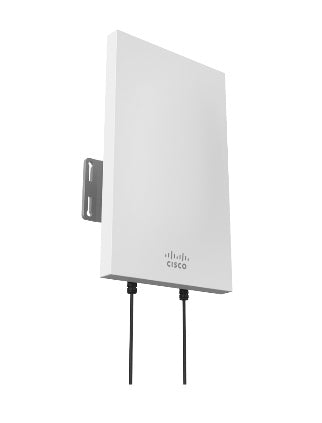

Meraki MA-ANT-21 | 5 GHz 13 dBi Sector Antenna, 2x N-Type, 2x2 MIMO

MA-ANT-21

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 5 GHz sector antenna is a directional external antenna for Meraki access points with N-type antenna connectors. It suits focused client coverage over outdoor or large indoor areas, and can also be used to build wireless backhaul links.

It delivers 13 dBi of gain across 5.150 to 5.875 GHz, with 2x2 MIMO and linear vertical/horizontal polarisation. Two N-type connectors link it to the access point. As a passive antenna it needs no power of its own. Its 5 GHz, 13 dBi sector design separates it from other Meraki external antennas by frequency band and beam pattern.

It works with Meraki access points that have N-type external antenna connectors, including the MR66, MR72, MR74, MR76, MR84 and MR86. Check the Meraki documentation for the exact supported model list before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 13 dBi directional gain for focused coverage areas
- Suitable for point-to-point and point-to-multipoint backhaul links
- 2x2 MIMO support for dual-chain access points
- Dual N-type connectors for external antenna ports
- Linear vertical/horizontal polarisation
- Passive design with no power requirement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Sector
- Frequency range: 5.150 - 5.875 GHz
- Gain: 13 dBi
- MIMO: 2x2
- Polarisation: Linear, vertical/horizontal
- Connectors: 2 x N-type
- Dimensions (H x W x D): 9.2 x 5.5 x 1.6 in
- Weight: 1.20 lb (approx. 18.6 oz)
- Colour: White
- Power: Passive antenna, no power required

FAQs

Q: Which Meraki access points does it work with?
A: It works with Meraki access points that have N-type external antenna connectors, such as the MR66, MR72, MR74, MR76, MR84 and MR86. Check the Meraki documentation for the exact supported model list.

Q: Does it need power or a licence?
A: No. It is a passive antenna, so it needs no power supply and no licence.

Q: What is it typically used for?
A: It is used for focused client coverage over outdoor or large indoor areas, and for building wireless backhaul links such as point-to-point or point-to-multipoint.

Q: Which frequency band does it cover?
A: It covers the 5 GHz band, from 5.150 to 5.875 GHz. It does not cover 2.4 GHz.

Q: How does it differ from other Meraki external antennas?
A: This model is a 13 dBi sector antenna for 5 GHz. Other Meraki antennas differ in frequency band, gain and beam pattern, so choose by the coverage area you need.
