Meraki

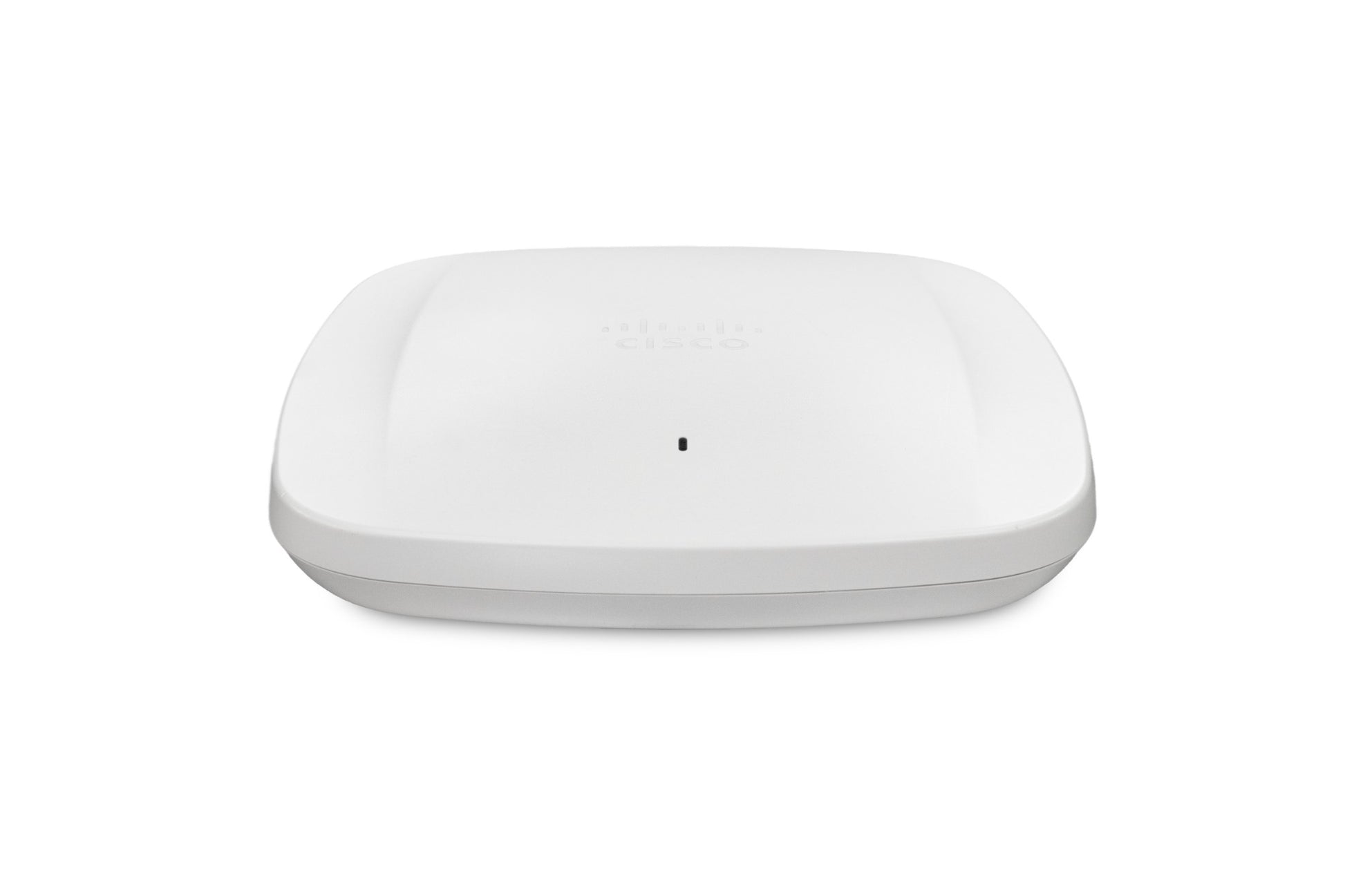

Meraki CW9166I-MR | Wi‑Fi 6E tri‑band (2.4/5/6 GHz), 4x4 MIMO, internal omni antennas, 2.5GbE mGig PoE‑in (802.3at/bt), secondary 1GbE, cloud‑managed

SKU:CW9166I-MR

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Enterprise Wi‑Fi 6E access point with tri‑band radios and 4x4 MIMO for high‑density indoor deployments. Internal omnidirectional antennas provide broad, uniform coverage with OFDMA, MU‑MIMO, BSS Coloring, and TWT for efficient airtime utilization. A 2.5G mGig PoE‑in uplink and a secondary 1G port enable multigig backhaul and local device connectivity. Full functionality with 802.3bt PoE; operates with reduced features on 802.3at. Integrated BLE/802.15.4 IoT radio and enterprise security (WPA3, 802.1X) included.

Features

- Tri‑band Wi‑Fi 6E with 4x4 MIMO for high client capacity
- Cloud‑managed with zero‑touch provisioning and analytics
- Efficient airtime via OFDMA/MU‑MIMO and BSS Coloring
- WPA3 enterprise‑grade security with 802.1X
- Integrated BLE/802.15.4 for IoT use cases
- Multigig 2.5GbE uplink prevents throughput bottlenecks
- Adaptive RF tuning for changing environments
- Compact, low‑profile internal‑antenna design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is a cloud license required?
A: Yes, an active cloud management license is required to configure and operate the AP.

Q: Will it work with PoE+ switches?
A: Yes, it can run on 802.3at PoE+, but 802.3bt PoE++ is recommended for full performance and features.

Q: Does it support the 6 GHz band?
A: Yes, it supports Wi‑Fi 6E on the 6 GHz band where allowed by local regulations.

Q: What is the uplink speed?
A: The primary uplink is 2.5GbE mGig with PoE‑in, plus a secondary 1GbE port.

Technical Specifications

- Wi‑Fi standard: 802.11a/b/g/n/ac/ax (Wi‑Fi 6E)
- Bands: concurrent 2.4 GHz, 5 GHz, 6 GHz (regulatory permitting)
- Spatial streams: 4x4 MIMO
- Antenna: internal omnidirectional (I)
- Ethernet: 1x 100/1000/2.5G BASE‑T (PoE‑in), 1x 10/100/1000 BASE‑T (secondary)
- PoE: 802.3bt recommended; 802.3at supported with reduced feature set
- Cloud management: supported
- Performance: OFDMA, MU‑MIMO, BSS Coloring, Target Wake Time
- Security: WPA3/WPA2, 802.1X
- IoT: integrated BLE and 802.15.4
- Mounting: ceiling/wall with standard bracket
