Meraki

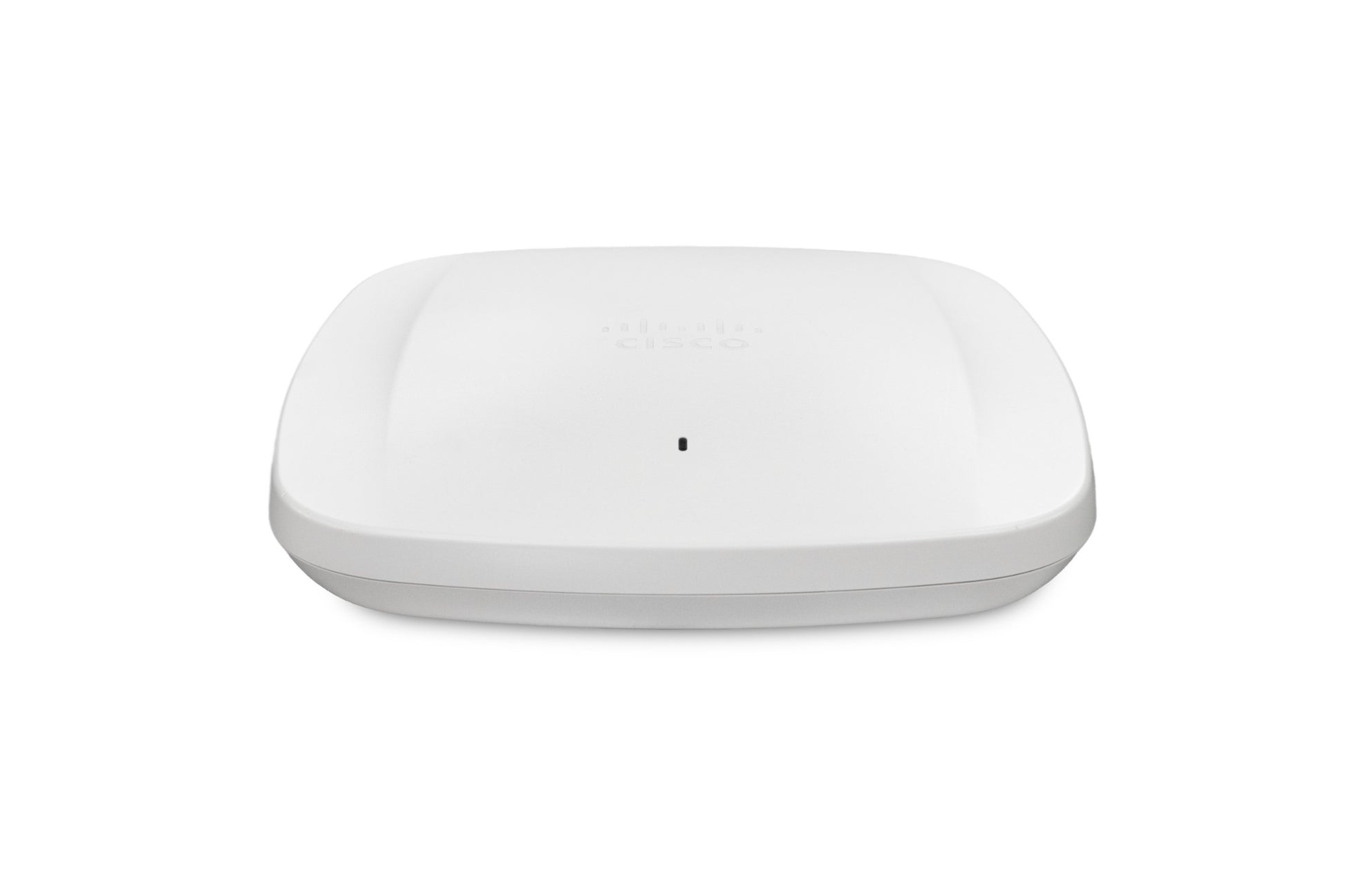

Meraki CW9164I-MR | Catalyst 9164I Wi-Fi 6E Tri-Band Access Point, 2x2/4x4

CW9164I-MR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki CW9164I-MR is a high-performance Wi-Fi 6E tri-band indoor access point designed for demanding enterprise environments. Featuring 2x2 radio on 2.4 GHz and 4x4 MU-MIMO on both 5 GHz and 6 GHz bands, it delivers aggregate wireless speeds up to 7.5 Gbps. With cloud management via Meraki Dashboard, integrated Bluetooth Low Energy, dedicated security and RF optimization radio, and a multigigabit Ethernet uplink, the CW9164I-MR is ideal for high-density deployments in offices, schools, hospitals, and hospitality venues.

Features

Wi-Fi 6E tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz bands for maximum capacity and performance
- 4x4:4 MU-MIMO on both 5 GHz and 6 GHz bands for simultaneous multi-user communication
- Dedicated scanning radio for real-time wireless intrusion detection and prevention (WIDS/WIPS), spectrum analysis, and location analytics
- Integrated Bluetooth Low Energy (BLE) radio with beacon and scanning support for IoT applications
- OFDMA and BSS Coloring support for improved efficiency in high-density environments
- Target Wake Time (TWT) technology to reduce power consumption for IoT and mobile devices
- 1024-QAM modulation for higher data throughput
- Multigigabit Ethernet uplink supporting 100M/1G/2.5G speeds
- USB 2.0 Type-A port (4.5W) for IoT peripherals and electronic shelf labels
- WPA3-Personal and WPA3-Enterprise encryption for enhanced security
- Advanced network access control with RADIUS authentication and 802.1X support
- Cloud-based zero-touch provisioning and automated firmware updates via Meraki Dashboard
- Advanced traffic shaping, QoS, and application visibility and control
- Guest access with customizable splash pages and social login options
- Remote diagnostics and troubleshooting tools for simplified network management
- Ceiling, wall, and T-rail mounting options with included hardware

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: Wi-Fi 6E (802.11ax) with backward compatibility for 802.11a/b/g/n/ac
- Frequency Bands: Tri-band operation - 2.4 GHz, 5 GHz, and 6 GHz
- Radios: 2x2:2 spatial streams on 2.4 GHz, 4x4:4 spatial streams on 5 GHz, 4x4:4 spatial streams on 6 GHz
- Additional Radios: Dedicated tri-band scanning radio for WIDS/WIPS, spectrum analysis, and location analytics; integrated Bluetooth Low Energy radio
- Maximum Aggregate Data Rate: Up to 7.5 Gbps
- Uplink Port: 1x multigigabit Ethernet (100M/1G/2.5G BASE-T) RJ-45
- USB Port: 1x USB 2.0 Type-A with 4.5W power budget for IoT peripherals
- Power Options: 802.3at PoE+ (Class 4), 802.3bt UPOE, or DC power input (54V)
- Power Consumption: 30W typical (with all radios enabled at 2.5G uplink)
- Antennas: Internal omnidirectional - 3 dBi at 2.4 GHz, 5 dBi at 5 GHz, 4 dBi at 6 GHz
- Dimensions: 9.5 x 9.5 x 2.24 in (241.3 x 241.3 x 56.9 mm)
- Weight: 3.54 lb (1.60 kg)
- Management: Cloud-managed via Meraki Dashboard or on-premises management via Catalyst controllers

FAQs

Q: What is Wi-Fi 6E and how does it benefit my network?
A: Wi-Fi 6E extends Wi-Fi 6 capabilities into the 6 GHz band, providing additional spectrum for faster speeds, lower latency, and reduced interference. The CW9164I-MR leverages this new band alongside 2.4 GHz and 5 GHz to deliver aggregate speeds up to 7.5 Gbps, making it ideal for high-density environments with many simultaneous users and bandwidth-intensive applications.

Q: Can this access point be managed with both Meraki Dashboard and Catalyst controllers?
A: Yes, the CW9164I-MR offers flexible management options. It can be managed via the cloud-based Meraki Dashboard for simplified zero-touch provisioning and centralized network monitoring, or it can be managed on-premises using Cisco Catalyst wireless controllers, giving you the flexibility to choose the management platform that best fits your network architecture.

Q: What power source is required for the CW9164I-MR?
A: The access point can be powered via PoE+ (802.3at) or UPOE (802.3bt) from a compatible network switch, or by using a separate power injector such as the MA-INJ-6. DC power input at 54V is also supported. For full feature operation including all radios and the 2.5G uplink speed, PoE+ or higher is recommended.

Q: Does this access point require a separate license to operate?
A: Yes, the CW9164I-MR requires a Meraki Enterprise or Advanced license for cloud management and operation. Licenses are sold separately on a per-device, per-year basis and provide access to the Meraki cloud platform, automatic firmware updates, and advanced feature sets including network access control, RADIUS authentication, and guest access.

Q: What deployment scenarios is the CW9164I-MR best suited for?
A: The CW9164I-MR is designed for indoor high-density environments such as large corporate offices, educational campuses, healthcare facilities, retail stores, hotels, and convention centers. Its tri-band design, MU-MIMO technology, and dedicated security radio make it ideal for locations with numerous concurrent clients and demanding application requirements like video conferencing, HD streaming, and IoT device connectivity.
