Cisco

Cisco CW-ANT-T-O3-N | Tri-Band Omnidirectional Antenna, 5/6/5 dBi, 8x N-Type

CW-ANT-T-O3-N

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

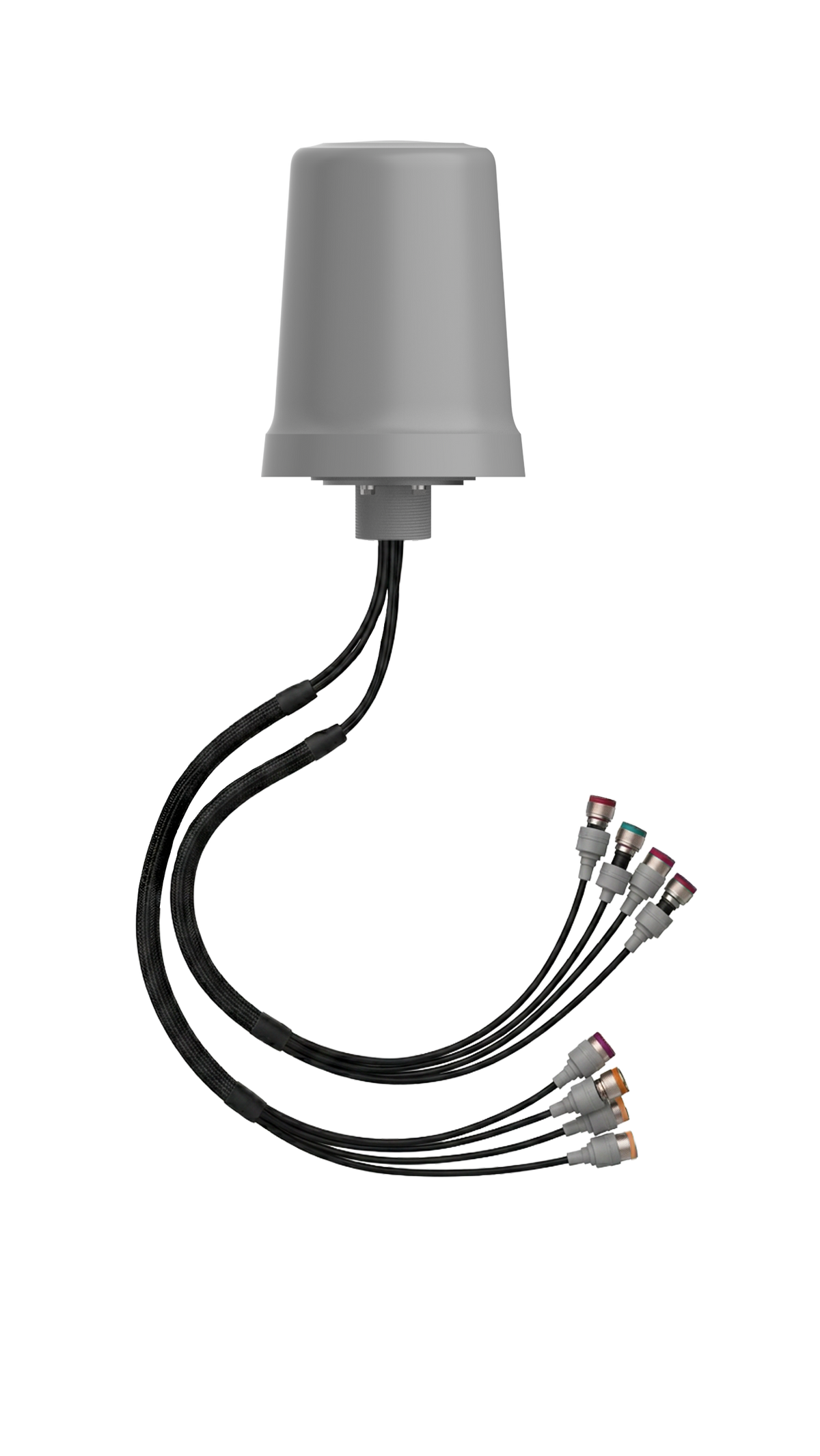

The CW-ANT-T-O3-N is an 8-port, tri-band omnidirectional antenna from the Cisco Wireless 9177 antenna range, built for Wi-Fi 7 outdoor access points. It covers the 2.4, 5 and 6 GHz bands and is suited to outdoor coverage at campuses, stadiums, warehouses, logistics sites and public spaces.

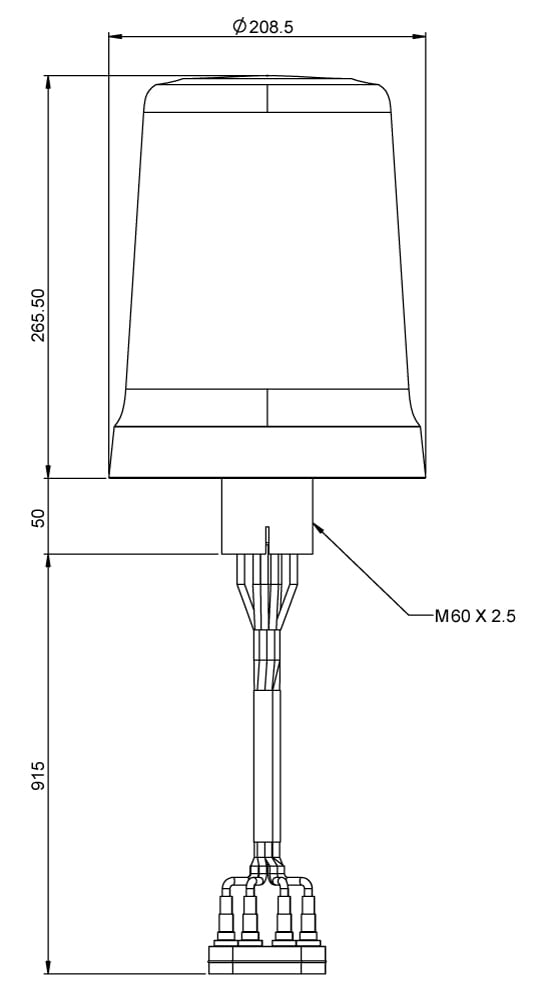

The antenna delivers a nominal gain of 5/6/5 dBi across the three bands and connects through eight N-Type male connectors on 3 ft (915 mm) LMR-200 LSZH cables. Polarisation is vertical and horizontal, nominal impedance is 50 ohms and VSWR is below 2:1. It stands 265.5 mm high with a 208.5 mm diameter and weighs 1.57 kg without the mount. The enclosure is IP67-rated with an integrated pressure vent and operates from -40 to 65 C.

Self-identifying circuitry and an accelerometer allow the antenna's orientation to be detected, and a surface mount bracket supports flexible deployment. It is a supported external antenna for the Cisco Wireless CW9177E outdoor access point. The antenna is passive and needs no power of its own.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Connectorized design with eight N-Type male connectors and 3 ft LMR-200 LSZH cables
- Supports 2.4, 5 and 6 GHz bands for Wi-Fi 7 access points
- Integrated self-identifying circuitry and accelerometer for orientation detection
- IP67-rated with integrated pressure vent for outdoor deployment
- Surface mount bracket for flexible installation
- Wide operating temperature range of -40 to 65 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: 8-port, omnidirectional
- Frequency bands: 2.4 GHz, 5 GHz and 6 GHz
- Operating frequency range: 2400-2500 MHz, 5150-5850 MHz, 5925-7125 MHz
- Nominal gain: 5/6/5 dBi (2.4/5/6 GHz)
- Polarisation: Vertical and horizontal
- Nominal input impedance: 50 ohms
- VSWR: less than 2:1
- Front-to-back ratio: greater than 20 dB
- Connectors: 8 x N-Type male
- Cable: 3 ft (915 mm) LMR-200 (LSZH)
- Self-identifying antenna (SIA): Yes, with accelerometer
- Environmental rating: IP67
- Environmental sensors: Integrated pressure vent
- Operating temperature: -40 to 65 C (-40 to 149 F)
- Height: 265.5 mm (10.45 in)
- Diameter: 208.5 mm (8.21 in)
- Weight (without mount): 1.57 kg (3.47 lb)

FAQs

Q: Which access point does this antenna work with?
A: It is a supported external antenna for the Cisco Wireless CW9177E Wi-Fi 7 outdoor access point. Alternative antennas for that access point are CW-ANT-T-D4-N and CW-ANT-T-D3-N.

Q: Does the antenna need a licence?
A: No licence is required for the antenna itself. The host access point, the CW9177E, needs its own Cisco or Meraki licence.

Q: Does the antenna need power?
A: No. It is a passive antenna with no power requirement of its own.

Q: Can I use it with older Wi-Fi access points?
A: It is designed for Wi-Fi 7 access points. Wi-Fi 6E and Wi-Fi 7 antennas should not be mixed with older access points.

Q: How does this model differ from the other 9177 antennas?
A: This is the omnidirectional model with 5/6/5 dBi gain and eight N-Type connectors, intended for 360 degree outdoor coverage. The CW-ANT-T-D4-N and CW-ANT-T-D3-N are alternative antennas for the same access point.
