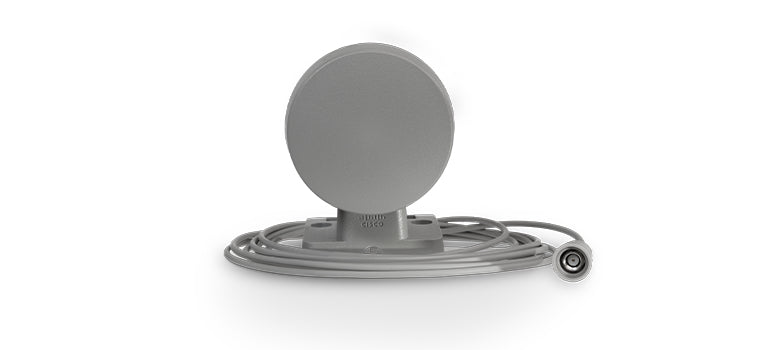

• Meraki CW-ANT-GPS2-S-00 GNSS GPS antenna with silver dish and coiled SMA cable
1 1

Cisco

Cisco CW-ANT-GPS2-S-00 | Outdoor GNSS/GPS Antenna, L1/L5 RHCP, 2 dBi, 10 ft SMA

CW-ANT-GPS2-S-00

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This outdoor GNSS/GPS antenna is an optional external accessory for Meraki and Cisco Catalyst outdoor Wi-Fi access points. It lets you mount the GNSS receiver input where it has a clear view of the sky, away from the access point itself. That suits campuses, stadiums, warehouses and pole or roof-mounted sites that need location and timing data, including 6 GHz AFC compliance.

The antenna is an active dual-band L1/L5 design with right-hand circular polarisation (RHCP). It combines a patch element, SAW filter and combined LNA, delivering a maximum gain of +2 dBi with an omnidirectional azimuth pattern. A 10 ft (3 m) low-loss RF pigtail cable terminates in an SMA male connector, which plugs into the GPS antenna port on the access point. The antenna draws its power from that port, so no separate power supply is needed.

The housing is outdoor-rated and can be fixed to a pole or wall. The Meraki accessories page lists the CW9163E as the compatible access point, and the pole-mount and wall-mount installation steps are covered in the CW9163E installation guide. The antenna itself needs no licence or subscription. The host access point carries its own Meraki cloud licence or Catalyst licensing.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-band L1/L5 GNSS reception with RHCP for accurate location and timing
- Active design with SAW filter and combined LNA
- Outdoor-rated housing for roof, pole or wall mounting
- 10 ft low-loss cable lets the antenna sit away from the access point for a better sky view
- Supports AFC compliance for 6 GHz outdoor operation
- Powered from the access point, so no separate power supply is needed

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Active external GNSS/GPS antenna (L1/L5 patch, SAW filter, combined LNA)
- Frequency bands: GNSS/GPS L1 and L5 dual-band
- Polarisation: Right-hand circular (RHCP)
- Azimuth: Omnidirectional
- Maximum gain: +2 dBi
- Connector: SMA male
- Cable: 10 ft (3 m) low-loss RF pigtail
- Environment: Outdoor
- Mounting: Pole mount or wall mount
- Intended use: Navigation, GNSS timing and location
- Compliance: Supports 6 GHz AFC (Automated Frequency Coordination)
- Power: Supplied from the host access point GNSS/GPS port
- Compatible access point: CW9163E

FAQs

Q: Does this antenna need a licence or subscription?
A: No. It is a passive accessory with no licence or subscription. The access point it connects to needs its own Meraki cloud licence or Catalyst licensing.

Q: How is the antenna powered?
A: It is an active antenna powered from the GNSS/GPS port on the host access point, so it needs no separate power supply.

Q: Which access point does it work with?
A: The Meraki accessories page lists the CW9163E as the compatible access point. It connects to the SMA GPS antenna port on the access point.

Q: Why use an external GNSS antenna?
A: The 10 ft cable lets you place the antenna where it has a clear view of the sky, away from the access point. This gives better location and timing data and supports 6 GHz AFC compliance on outdoor deployments.

Q: Can it be mounted outdoors?
A: Yes. It has an outdoor-rated housing and can be mounted on a pole or a wall. The CW9163E installation guide covers both methods.
