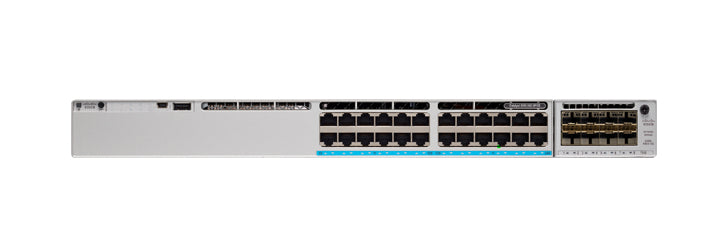

Meraki C9300L-24T-4X-M | Catalyst 9300L 24-Port Gigabit Switch, 4x 10G SFP+

C9300L-24T-4X-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco C9300L-24T-4X-M is a Catalyst 9300L-M switch combining enterprise-grade hardware with Meraki cloud management. Featuring 24 Gigabit Ethernet ports and four 10G SFP+ uplinks, it delivers 128 Gbps switching capacity and 95.23 Mpps forwarding rate for high-performance campus and enterprise deployments. Built on the UADP 2.0 ASIC with 8GB memory and 16GB flash, this 1U switch supports optional StackWise-320 hardware stacking and integrates seamlessly with Meraki Dashboard for centralized network management.

Features

Meraki Dashboard cloud management for centralized visibility and zero-touch provisioning
- Cisco UADP 2.0 ASIC with programmable pipeline and microengine capabilities
- x86 CPU architecture with 8GB memory and 16GB flash for application hosting
- Optional StackWise-320 hardware stacking (up to 8 switches, 320 Gbps bandwidth)
- Wire-speed, non-blocking performance for IPv4 and IPv6 traffic
- Layer 2 and Layer 3 switching with dynamic routing protocols
- Advanced QoS with template-based configurable allocation
- Flexible hardware-based ACL support for security policies
- Hardware-based Flexible NetFlow (FNF) for traffic visibility
- Dual-stack IPv4/IPv6 support with dynamic forwarding table allocation
- IEEE 802.1ba Audio Video Bridging (AVB) for multimedia applications
- Jumbo frame support up to 9,198 bytes
- Hot-swappable dual power supply capability for redundancy
- Three field-replaceable fans with N+1 redundancy
- USB 2.0 and 3.0 ports for system images and external storage
- Optimized for high-density Wi-Fi 6 and 802.11ac Wave 2 access point deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

24x 10/100/1000 Mbps Ethernet ports (RJ-45)
- 4x 10G SFP+ uplink ports (fixed)
- Switching capacity: 128 Gbps (448 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (333.33 Mpps with stacking)
- Memory: 8GB DRAM
- Flash storage: 16GB
- Stacking: Optional StackWise-320 (C9300L-STAK-KIT2-M required, sold separately)
- Stacking bandwidth: 320 Gbps (up to 8 switches per stack)
- MAC address table: 32,000 entries
- VLANs supported: 4,094
- Switched Virtual Interfaces (SVIs): 1,000
- Power supply: PWR-C1-350WAC-P-M (350W AC, dual redundant capable)
- Dimensions: 1.73 x 17.5 x 17.7 inches (4.4 x 44.5 x 44.9 cm)
- Weight: 14.93 lbs (6.78 kg)
- Form factor: 1U rack-mount
- Operating temperature: -5°C to 45°C
- Humidity: 5% to 90% non-condensing
- Management: Meraki Dashboard cloud management
- Licensing: Requires Catalyst 9300-M Enterprise or Advanced license

FAQs

Q: What licensing is required for the C9300L-24T-4X-M?
A: This switch requires a Catalyst 9300-M license to operate with Meraki Dashboard. Licenses are available in Enterprise and Advanced tiers, with terms of 1, 3, 5, 7, or 10 years. The license must be purchased separately and is mandatory for activation.

Q: Does this switch support PoE?
A: No, the C9300L-24T-4X-M is a non-PoE model with data-only ports. For PoE requirements, consider the C9300L-24P-4X-M which provides PoE+ capability.

Q: Can I stack multiple C9300L-24T-4X-M switches?
A: Yes, the switch supports StackWise-320 stacking with up to 8 switches per stack and 320 Gbps stacking bandwidth. However, stacking ports are not included by default—you must order the C9300L-STAK-KIT2-M for each switch you plan to stack.

Q: What is the difference between Catalyst 9300L-M and standard Catalyst 9300L?
A: The C9300L-24T-4X-M is a Catalyst 9300L switch managed through the Meraki cloud Dashboard, combining enterprise Catalyst hardware with simplified cloud-based management. It integrates with Meraki's centralized network management platform rather than traditional on-premises IOS XE management.

Q: What SFP modules are compatible with the uplink ports?
A: The four 10G SFP+ uplink ports support a wide range of Cisco and Meraki SFP/SFP+ transceivers including 1G and 10G modules, as well as direct attach copper (DAC) and active optical cables (AOC). Refer to the Meraki SFP datasheet for complete compatibility details.
