Meraki

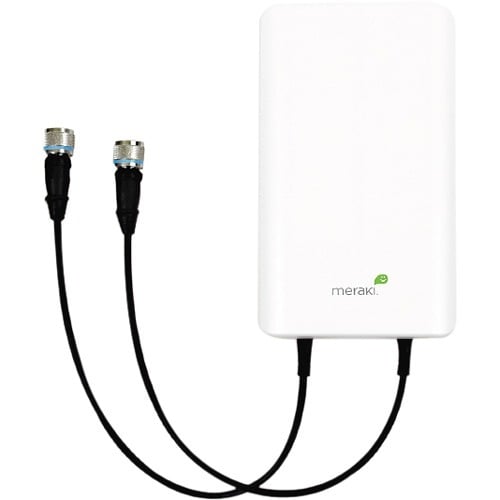

Meraki ANT-11 | MR Antenna 5 GHz Sector, 14 dBi, 2x2 MIMO, N-type

ANT-11

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 5 GHz sector antenna delivers 14 dBi of gain with dual-polarized 2x2 MIMO, providing focused client coverage or point-to-point backhaul links. It operates across the 5.150 to 5.850 GHz range with an 80 degree horizontal beamwidth and two N-type connectors for use with compatible Meraki access points. The UV-resistant housing suits outdoor deployments, and the included N-type cables and mounting hardware allow installation on walls, poles or directly on the access point.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Focused sector coverage for client access or backhaul links
- Dual-polarized 2x2 MIMO for improved throughput and reliability
- Mounts to walls, poles, or directly to the access point
- Mounting hardware and N-type cables included
- UV-resistant housing for outdoor use
- 5 GHz only, no 2.4 GHz support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: sector (directional)
- Frequency range: 5.150 to 5.850 GHz
- Gain: 14 dBi
- Polarization: vertical / horizontal (2x2 MIMO)
- Half power beamwidth (horizontal): 80 degrees
- Connectors: 2 x N-type
- Dimensions: 215 x 122 x 35 mm
- Weight: 120 g
- Material: UV-resistant plastic
- Operating temperature: -40°C to 80°C
- Two N-type cables included
- Mounting hardware included

FAQs

Q: Which frequency band does this antenna support?
A: It supports the 5 GHz band only, covering 5.150 to 5.850 GHz. It does not support 2.4 GHz.

Q: What connector type does it use?
A: It has two N-type connectors, so it is intended for Meraki access points that use N-type antenna connections.

Q: Can it be used outdoors?
A: Yes. The UV-resistant plastic housing and an operating range of -40°C to 80°C make it suitable for outdoor installation.

Q: Are cables and mounting hardware included?
A: Yes. Cables with two N-type connectors and mounting hardware are included for installation on walls, poles or directly on the access point.

Q: What is the coverage pattern?
A: It is a directional sector antenna with 14 dBi gain and an 80 degree horizontal half power beamwidth, suited to focused coverage areas or backhaul links.
