• Meraki ANT-10 dual-band omni antennas 2.4/5GHz 5/7dBi N-type set of 2
1 1

Meraki

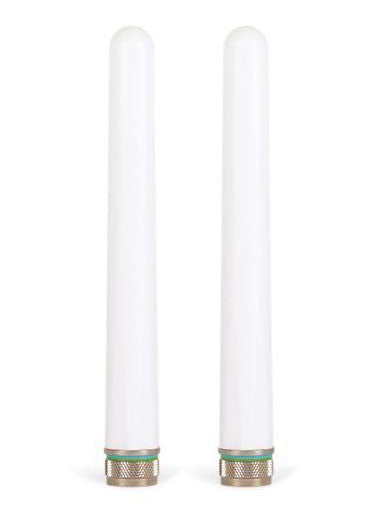

Meraki ANT-10 | Dual-Band 5/7 dBi Omni Antenna, N-Type, Set of 2

ANT-10

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This set of two dual-band omnidirectional antennas covers the 2.4 GHz and 5 GHz bands with 5 dBi and 7 dBi gain respectively. Fitted with N-type connectors, the antennas mount directly to the access point without cables, making them a straightforward way to extend or tune coverage on compatible Meraki MR58, MR62 and MR66 deployments. A 360 degree horizontal pattern suits open-plan offices, warehouses and other areas where broad, even coverage is needed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multi-band omnidirectional design suitable for a broad range of applications
- Designed for Meraki access points with N-type connectors
- Direct mount to the access point, no cable required
- Supplied as a set of two antennas
- 360 degree horizontal coverage pattern

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Set of 2 omnidirectional antennas
- Dual-band: 2.4 GHz (2.400-2.500 GHz) and 5 GHz (5.150-5.875 GHz)
- Gain: 5 dBi (2.4 GHz) and 7 dBi (5 GHz)
- Connector: N-type
- Polarisation: vertical (linear)
- Half power beamwidth: 360 degrees horizontal, 30 degrees vertical
- Direct mount form factor
- Approx. dimensions: 7 in height x 0.90 in diameter
- Approx. weight: 2.40 oz
- Certified for use with Meraki MR58, MR62 and MR66

FAQs

Q: Which Meraki access points are these antennas certified for?
A: The ANT-10 antenna set is certified for use with the Meraki MR58, MR62 and MR66 access points.

Q: Which frequency bands and gain levels do the antennas support?
A: They are dual-band, covering 2.4 GHz (2.400-2.500 GHz) with 5 dBi gain and 5 GHz (5.150-5.875 GHz) with 7 dBi gain.

Q: What connector type is used and is a cable required?
A: The antennas use N-type connectors and mount directly to the access point, so no antenna cable is required.

Q: How many antennas come in the set?
A: The ANT-10 is supplied as a set of two omnidirectional antennas.

Q: What is the radiation pattern of these antennas?
A: They are omnidirectional with vertical linear polarisation, a 360 degree horizontal beamwidth and a 30 degree vertical beamwidth.
