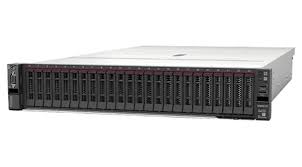

Lenovo SR650-V2 | ThinkSystem SR650 V2 2U Dual-Socket Rack Server

SR650-V2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The Lenovo ThinkSystem SR650 V2 is a versatile 2U dual-socket rack server powered by 3rd generation Intel Xeon Scalable processors, supporting up to 32 DDR4-3200 memory modules and offering exceptional scalability for enterprise workloads. With PCIe 4.0 expandability, flexible storage configurations supporting up to 40 x 2.5-inch or 20 x 3.5-inch drive bays including NVMe, and OCP 3.0 networking, the SR650 V2 is engineered for virtualization, cloud computing, databases, and HPC. XClarity management and hot-swap redundant power supplies deliver reliability and simplified administration.

Features

Dual 3rd Gen Intel Xeon Scalable processors (Ice Lake) with up to 40 cores each
- Up to 32 DDR4-3200 DIMM slots with up to 12TB memory capacity
- Intel Optane DC Persistent Memory 200 Series support
- PCIe 4.0 architecture with up to 8 expansion slots
- OCP 3.0 dedicated networking slot
- Lenovo AnyBay technology for flexible SAS/SATA/NVMe drive mixing
- Support for up to 40 x 2.5-inch or 20 x 3.5-inch hot-swap drive bays
- Up to 32 NVMe drives with NVMe switch adapters
- Support for up to 8 GPUs including three 300W GPUs
- Hot-swap redundant 80 PLUS power supplies
- Single Device Data Correction (SDDC) and Adaptive Double-Device Data Correction (ADDDC) memory protection
- Memory mirroring for redundancy
- Lenovo XClarity Controller embedded management engine
- Lenovo XClarity Administrator centralized management support
- Light path diagnostics with LEDs for rapid fault isolation
- Hot-swap drives with RAID redundancy support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 2U rack server
- Processor Support: Dual 3rd generation Intel Xeon Scalable processors (Ice Lake), up to 40 cores per CPU, up to 270W TDP
- Memory: Up to 32 x DDR4-3200 DIMM slots, supports up to 12TB total memory, Intel Optane DC Persistent Memory 200 Series support
- Storage: Up to 40 x 2.5-inch or 20 x 3.5-inch drive bays, AnyBay technology for mixing SAS/SATA HDD/SSD and NVMe drives, support for up to 32 NVMe drives with switch adapters
- Expansion Slots: Up to 8 x PCIe 4.0 slots (rear-access), OCP 3.0 dedicated slot for networking, internal bay for cabled RAID adapter or HBA
- GPU Support: Up to 8 GPUs, supports up to three 300W GPUs
- Management: Lenovo XClarity Controller embedded management, XClarity Administrator support
- Power Supplies: Hot-swap redundant 80 PLUS power supplies
- Dimensions: 86.5mm (H) x 445-482.1mm (W) x 763.7mm (D)
- Workloads: Virtualization, cloud computing, databases, VDI, HPC, streaming media, hyperconverged infrastructure (HCI), software-defined storage (SDS)

FAQs

Q: What processors does the SR650 V2 support?
A: The SR650 V2 supports dual 3rd generation Intel Xeon Scalable processors (Ice Lake), with up to 40 cores per processor and TDP ratings up to 270W. The platform offers 128 PCIe 4.0 lanes total with both processors installed.

Q: How much memory can the SR650 V2 accommodate?
A: The SR650 V2 supports up to 32 DDR4-3200 DIMM slots, offering up to 12TB of total memory capacity. It also supports Intel Optane DC Persistent Memory 200 Series for enhanced data center workload performance.

Q: What storage configurations are available?
A: The server offers flexible storage with up to 40 x 2.5-inch or 20 x 3.5-inch drive bays. Lenovo AnyBay technology allows mixing of SAS/SATA HDDs/SSDs and NVMe SSDs in the same drive bays, and the platform supports up to 32 NVMe drives with NVMe switch adapters.

Q: What expansion options does the SR650 V2 offer?
A: The SR650 V2 provides up to 8 PCIe 4.0 slots with rear access, a dedicated OCP 3.0 slot for networking adapters, and an internal bay for RAID adapters or HBAs. It supports up to 8 GPUs, including three 300W GPUs, for compute-intensive workloads.

Q: What workloads is the SR650 V2 designed for?
A: The SR650 V2 is designed for a wide range of enterprise workloads including virtualization, cloud computing, databases, virtual desktop infrastructure (VDI), high-performance computing (HPC), streaming media, hyperconverged infrastructure, and software-defined storage.
