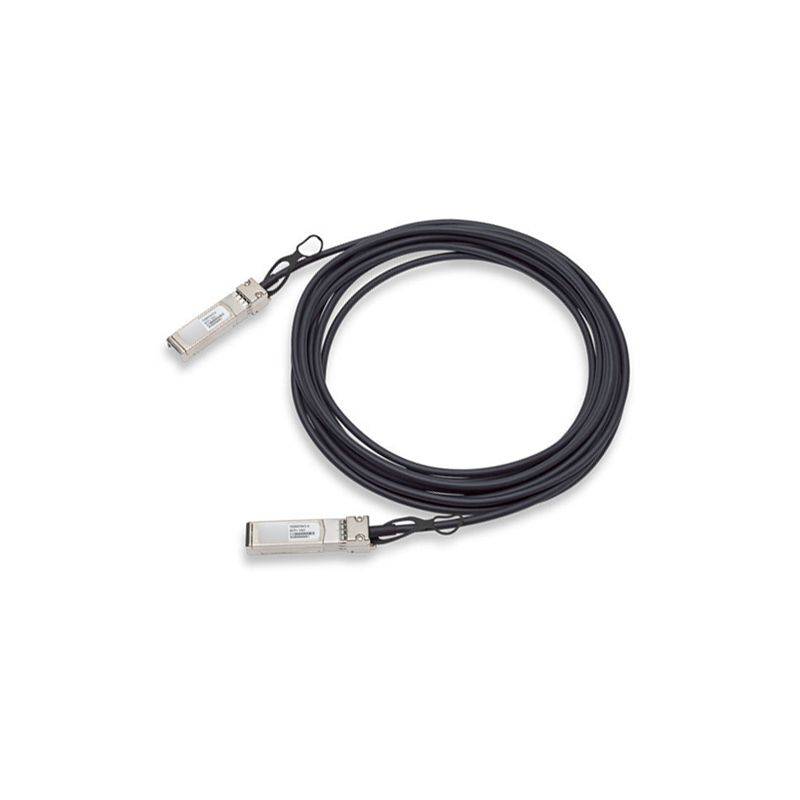

Juniper QFX-QSFP-DAC-1M | 40G QSFP+ to QSFP+ DAC Cable, Passive Copper, 1m

SKU:QFX-QSFP-DAC-1M

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Juniper QFX-QSFP-DAC-1M is a passive twinax copper direct attach cable that links two 40GbE QSFP+ ports over a 1 metre run. It is intended for short-reach 40GbE connections between Juniper QFX and EX switches, such as top-of-rack and intra-rack links in a data centre.

The cable is terminated with a QSFP+ connector at each end and uses passive copper construction, so no separate transceivers are needed to bring up a link between two QSFP+ ports. It is rated for 40GBASE-CR4 operation at a length of 1 m, which makes it a straightforward option for connecting adjacent switches or a switch to a server or storage port in the same rack.

This cable is listed as a supported 40GbE DAC option in the Juniper QFX5100, QFX5210, EX4300 and EX4600 switch datasheets. Confirm the exact platform and software release against Juniper's Hardware Compatibility Tool before deployment.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive twinax copper construction
- Connects two 40GbE QSFP+ ports directly with no separate optics
- Suited to short top-of-rack and intra-rack 40GbE links
- Listed as a supported 40GbE DAC option in Juniper QFX5100, QFX5210 and EX4600 datasheets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Also Known As

FAQs

Technical Specifications

- Cable type: Direct attach copper (twinax), passive
- Connector type: QSFP+ to QSFP+
- Data rate: 40GbE
- Standard: 40GBASE-CR4
- Length: 1 m

Also Known As

740-038623, 740-038624, 740-038625

FAQs

Q: Does this cable need separate transceivers?
A: No. It is a direct attach cable with QSFP+ connectors fitted at both ends, so it plugs straight into two QSFP+ ports.

Q: What distance does this cable cover?
A: This cable is 1 m long and is intended for short connections within a rack or between adjacent racks.

Q: Which Juniper switches does it work with?
A: It is listed as an option in the Juniper QFX5100, QFX5210, EX4300 and EX4600 datasheets. Check Juniper's Hardware Compatibility Tool to confirm your platform and software release.

Q: Is this an active or passive cable?
A: It is a passive copper cable. It has no powered signal conditioning in the connectors, which suits it to short-reach links.
