HPE S3U30C | NVIDIA H200 NVL 141GB HBM3e PCIe Gen5 GPU Accelerator

SKU:S3U30C

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

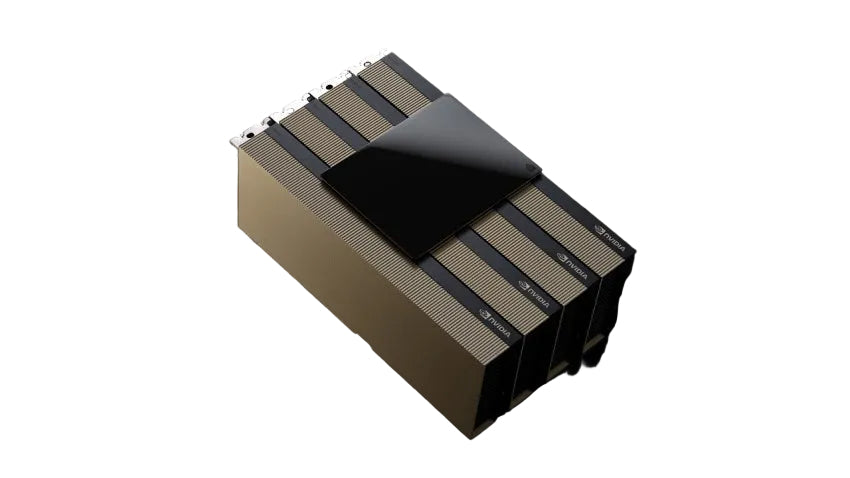

The NVIDIA H200 NVL 141GB PCIe Accelerator is a dual-slot, air-cooled GPU accelerator built on the NVIDIA Hopper architecture, with 141GB of HBM3e memory and 4.8 TB/s of memory bandwidth. It is designed for generative AI, large language model inference and HPC workloads in enterprise rack servers. A PCIe Gen5 x16 host interface and optional 2-way or 4-way NVLink bridging allow flexible multi-GPU configurations in HPE ProLiant Gen10, Gen10 Plus, Gen11 and Gen12 servers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Suited to air-cooled enterprise rack designs that need flexible configurations
- With up to four GPUs connected by NVLink and a 1.5x memory increase, LLM inference is up to 1.7x faster and HPC up to 1.3x faster than H100 NVL
- Includes a five-year NVIDIA AI Enterprise subscription
- Third-generation NVLink doubles GPU-to-GPU direct bandwidth
- Third-generation RT cores
- NVIDIA Qualified and NVIDIA Certified HPE servers, with thermal, mechanical, power and signal integrity qualification
- HPE iLO management for configuring, monitoring and updating the accelerator, using HPE Silicon Root of Trust

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- HPE part number: S3U30C
- NVIDIA Hopper architecture, H200 NVL GPU
- 1 accelerator per card
- 141 GB HBM3e memory per board
- 4.8 TB/s memory bandwidth
- Peak single precision performance: 60 TFLOPS
- PCIe Gen5 x16 host interface
- Optional 2-way or 4-way NVLink bridge, up to 900GB/s (bridges sold separately)
- Up to 600W maximum TDP (configurable)
- Passive air cooling, dual-slot full-height form factor
- Dimensions: 15.49 x 26.6 x 6.19 cm
- Weight: 1.3 kg
- Supported platforms: HPE ProLiant ML/DL Gen10, Gen10 Plus, Gen11 and Gen12 servers; HPE Alletra Storage 4110/4120; compatible with ProLiant DL380a Gen12

FAQs

Q: How much memory does the H200 NVL accelerator have?
A: It has 141 GB of HBM3e memory per board with 4.8 TB/s of memory bandwidth, suited to large language model inference and memory-intensive HPC workloads.

Q: Can multiple H200 NVL cards be linked together?
A: Yes. The card supports optional 2-way or 4-way NVLink bridges with up to 900GB/s of GPU-to-GPU bandwidth. The NVLink bridges are sold separately.

Q: Which servers is this accelerator compatible with?
A: It is supported in HPE ProLiant ML/DL Gen10, Gen10 Plus, Gen11 and Gen12 servers, as well as HPE Alletra Storage 4110/4120, and is compatible with the ProLiant DL380a Gen12.

Q: Does this card need liquid cooling?
A: No. It uses passive air cooling in a dual-slot, full-height form factor, so it suits standard air-cooled enterprise rack designs with adequate chassis airflow.

Q: What host interface and power envelope does it use?
A: It connects over PCIe Gen5 x16 and has a maximum TDP of up to 600W, which is configurable. Ensure the host server supplies suitable power and cooling for the card.
