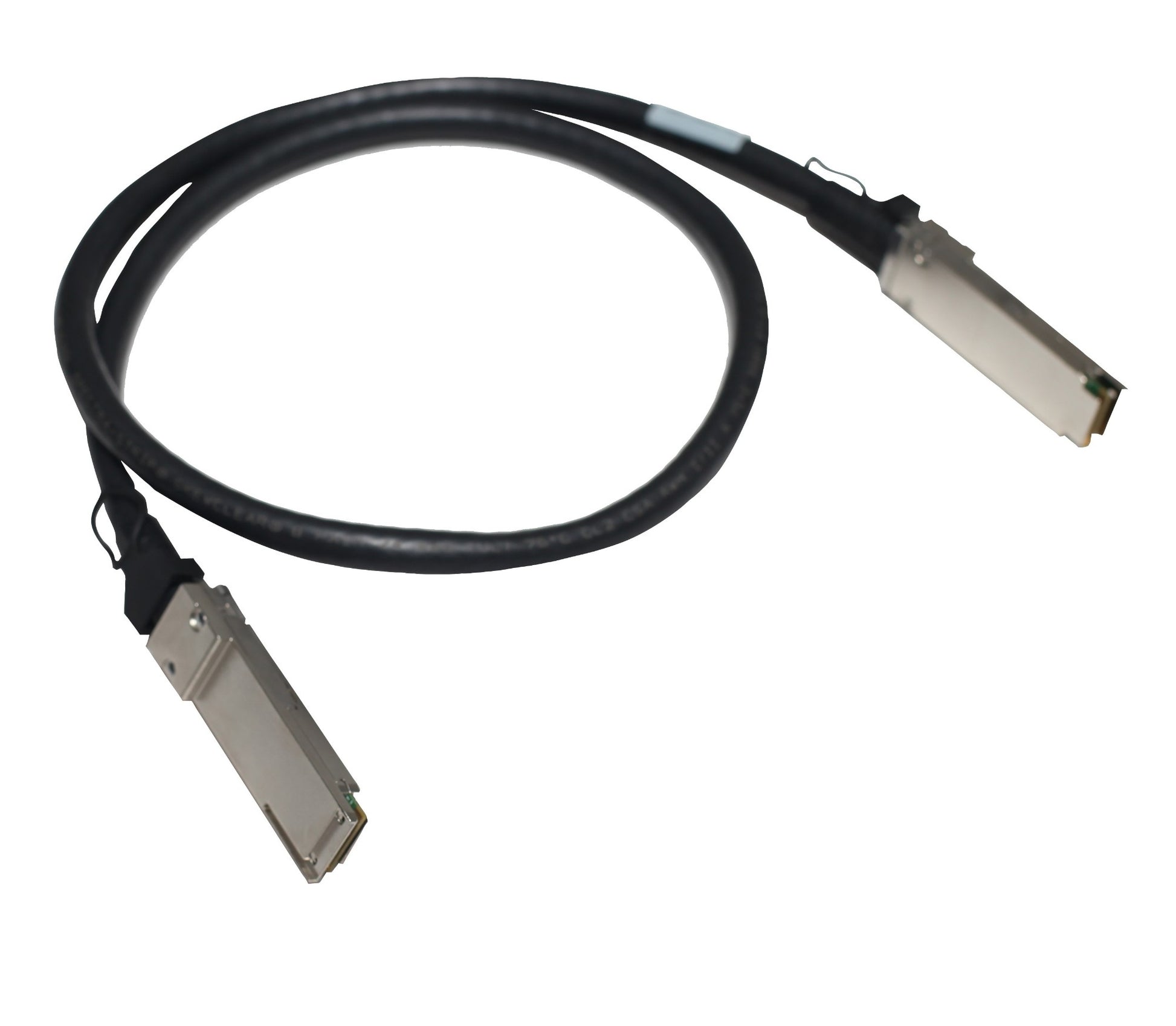

HPE R8M59A | 100G QSFP28 DAC Cable, 100GBASE-CR4, 0.5m
SKU:R8M59A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This passive 100GbE direct attach copper cable has a QSFP28 connector on each end and a length of 0.5 m. It is built for very short-reach links between top-of-rack switches, servers, NICs and storage, either within a rack or between adjacent racks.
The cable carries 100 Gb/s over four 25G NRZ lanes using passive twinax copper, so no external power is required. Maximum power draw is 0.1 W per cable and the maximum operating temperature is 70 C. The QSFP28 end measures 18.3 x 8.5 x 72.4 mm, or around 120 mm long including the pull tab. Copper DAC links give a cost-effective, low-latency alternative to optical transceivers where distances are short, which suits switch-to-switch uplinks and ISL or stacking connections.
The 0.5 m length is intended for tightly packed racks. It is designed for 100GbE QSFP28 ports on HPE and Aruba switches, HPE servers and adapters, and storage. Check the HPE networking transceiver QuickSpecs for specific platform compatibility.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper DAC with a QSFP28 connector on each end
- Delivers 100GbE over four 25G NRZ lanes
- Very low power draw, 0.1 W max per cable
- No external power required
- Cost-effective, low-latency short-reach interconnect
- Suited to links within a rack or between adjacent racks
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- HPE part number: R8M59A
- Type: Direct attach copper (DAC) cable
- Category: 100GbE
- Connectors: QSFP28 on both ends
- Media: Passive copper twinax
- Speed: 4 x 25 Gb/s NRZ (100 Gb/s)
- Length: 0.5 m
- Power (max): 0.1 W
- Temperature (max): 70 C
- QSFP28 end form factor: 18.3 x 8.5 x 72.4 mm (W x H x L)
- Length with pull tab: approximately 120 mm
- TX/RX power and wavelength: not applicable (passive copper)
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper cable and draws 0.1 W maximum through the host port.
Q: What is the maximum distance for this cable?
A: This cable is 0.5 m long, so it is intended for very short links within a rack or between adjacent racks.
Q: What ports does it connect to?
A: It has QSFP28 connectors on both ends and is designed for 100GbE QSFP28 ports on HPE and Aruba switches, HPE servers and adapters, and storage.
Q: Can it be used for switch-to-switch links?
A: Yes. It suits switch-to-switch uplinks and ISL or stacking links at 100 Gb/s where the devices are close together.
Q: How does a DAC cable differ from an optical transceiver link?
A: A DAC uses passive copper with fixed connectors, so it has lower cost, latency and power draw than optics, but it is limited to short distances.
