HPE R5Z80A | 200G QSFP56 Active Optical Cable, MMF, 850nm, 5m
SKU:R5Z80A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

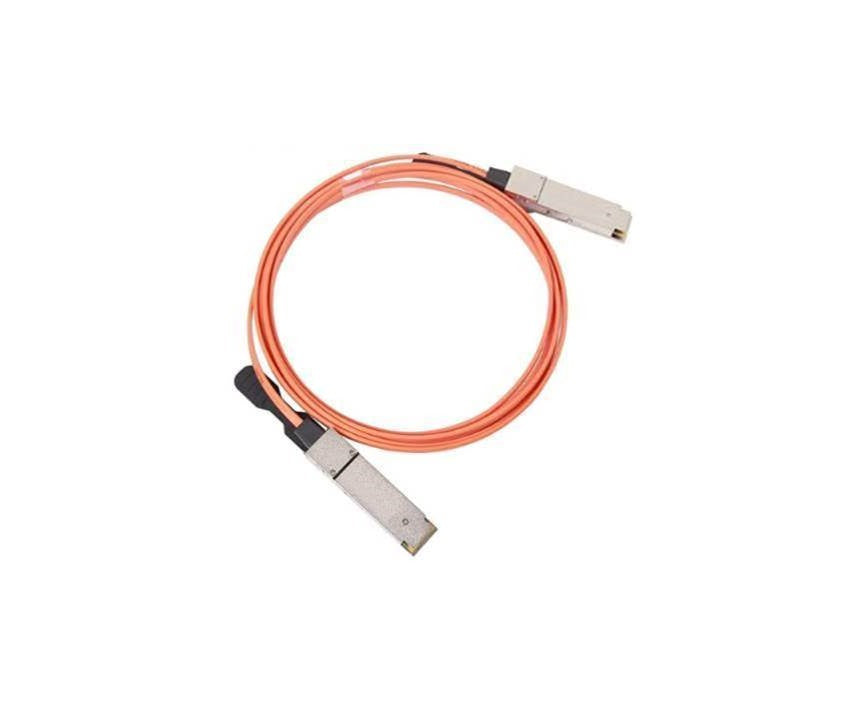

This HPE 200Gb QSFP56 to QSFP56 active optical cable is a fixed multi-mode fibre assembly for short-reach 200GbE links. It suits data centre and HPC/AI environments where servers, adapters and switches sit within a rack or in adjacent racks, up to 5 m apart.
The cable carries four 50G PAM4 lanes at 26.56 GBd per lane over 850 nm multi-mode fibre, giving 200 Gb/s per link with QSFP56 connectors on both ends. Because the optics are built into the cable assembly, no separate transceivers or patch cables are needed. It is not breakout capable, so it connects one QSFP56 port directly to another. Latching is by pull tab for easy removal, and the maximum operating temperature is 70 C. Power consumption is 4.5 W, drawn from the host port with no external power required.
It is intended for QSFP56 200GbE ports on HPE-supported switches and adapters. The same family also includes 10 m (R5Z81A) and 15 m (R5Z82A) lengths if you need a longer run.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 200GbE QSFP56 form factor with 4 x 50G PAM4 lanes
- Fixed active optical cable over multi-mode fibre
- No separate transceivers or patch cables required
- Pull-tab latching for easy removal
- Powered from the host QSFP56 port, no external power needed
- Suited to short-reach links within or between adjacent racks
- Host interface compliant with 200GAUI-4 C2M
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Active Optical Cable (AOC)
- Speed: 200 Gb/s (4x50G PAM4)
- Form factor: QSFP56 to QSFP56
- Media: Multi-mode fibre (MMF)
- Wavelength: 850 nm
- Length: 5 m
- Connector: Fixed cable assembly
- Latching: Pull tab
- Breakout capable: No
- Host lanes: 4 at 26.56 GBd PAM4
- Media lanes: 4 at 26.56 GBd PAM4
- Host compliance: 200GAUI-4 C2M
- Power consumption: 4.5 W
- Maximum operating temperature: 70 C
FAQs
Q: Does this cable need separate transceivers?
A: No. The optics are integrated into the cable assembly, so it plugs directly into QSFP56 ports at both ends.
Q: Can this cable be used for breakout connections?
A: No. It is not breakout capable and provides a single 200Gb/s link between two QSFP56 ports.
Q: Does it need external power?
A: No. It draws about 4.5 W from the host QSFP56 port.
Q: What lengths are available in this family?
A: This is the 5 m model (R5Z80A). The same family includes R5Z81A at 10 m and R5Z82A at 15 m.
Q: What is the maximum reach of this cable?
A: It is a fixed 5 m assembly over multi-mode fibre at 850 nm, intended for short-reach links within or between adjacent racks.
