HPE R5Z78A | 200G QSFP56 to QSFP56 DAC Cable, 2m, 4x50G PAM4
SKU:R5Z78A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

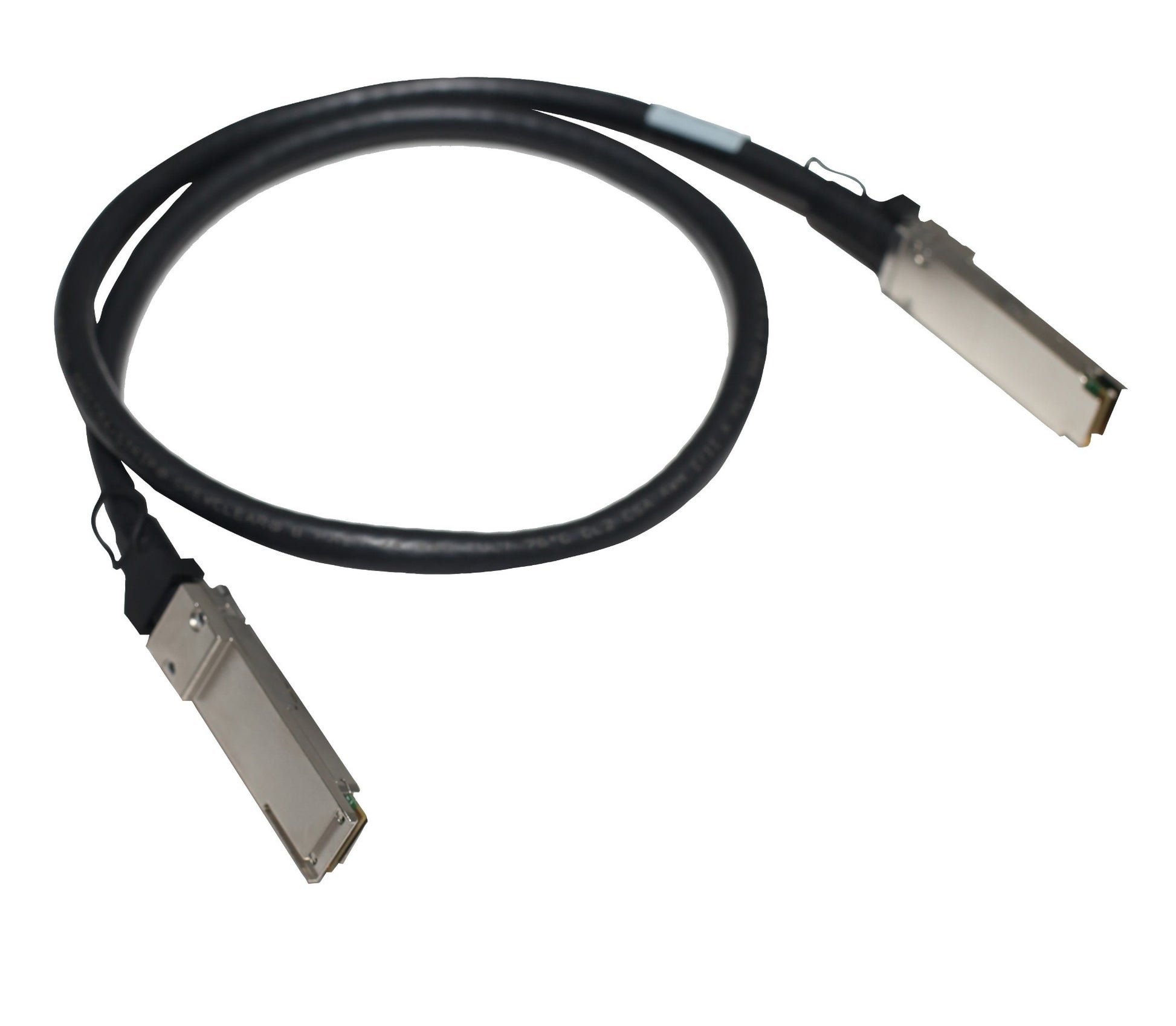

This is a passive 2 m direct attach copper cable with a QSFP56 connector on each end, built for short-reach 200GbE links in the rack. It sits in HPE's 200Gb QSFP56 DAC range, which also covers 0.5 m, 1 m and 2.5 m lengths. Typical uses are top-of-rack switch to server NIC links, or switch to switch connections within or between adjacent racks in data centres and HPC or AI clusters.
The cable carries 4 x 50G PAM4 lanes for 200GbE and uses copper media, so there is no optical wavelength to match. It is powered from the host port with a maximum draw of 0.1 W and a maximum operating temperature of 70 C. For short runs it is a lower-cost alternative to optical transceivers plus fibre.
It is intended for 200GbE QSFP56 ports on HPE and NVIDIA (Mellanox) networking equipment and server adapters, and is listed as a supported cable option for HPE M-series storage switches such as the SN4700M. The NVIDIA equivalent part number is MCP1650-V002E26.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 200GbE connectivity with QSFP56 on both ends
- Passive copper DAC with very low power draw of 0.1 W maximum
- 4 x 50G PAM4 lanes
- Suited to short in-rack and adjacent-rack links
- Lower-cost alternative to optical transceivers plus fibre over short distances
- Listed as a supported cable option for HPE M-series storage switches such as the SN4700M
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Product number: R5Z78A
- Product type: Direct attach copper cable (DAC)
- Speed: 200GbE
- Lanes: 4 x 50G PAM4
- Connectors: QSFP56 on both ends
- Length: 2 m
- Media: Copper (passive)
- Maximum power: 0.1 W
- Maximum operating temperature: 70 C
- OEM cross-reference: NVIDIA MCP1650-V002E26
FAQs
Q: Does this cable need external power?
A: No. It is a passive cable powered from the host port, with a maximum draw of 0.1 W. No external power or PoE is involved.
Q: What ports does it connect to?
A: It connects 200GbE QSFP56 ports on HPE and NVIDIA (Mellanox) switches, server NICs and adapters. It is also a supported cable option for the HPE M-series SN4700M storage switch.
Q: How far can this cable reach?
A: This cable is 2 m long, so it suits links within a rack or between adjacent racks. For longer runs you would use optical transceivers with fibre.
Q: Is there an NVIDIA equivalent part number?
A: Yes. The NVIDIA (Mellanox) equivalent is MCP1650-V002E26.
Q: What other lengths are in this range?
A: HPE's 200Gb QSFP56 DAC range also includes 0.5 m, 1 m and 2.5 m lengths. This SKU is the 2 m version.
