HPE

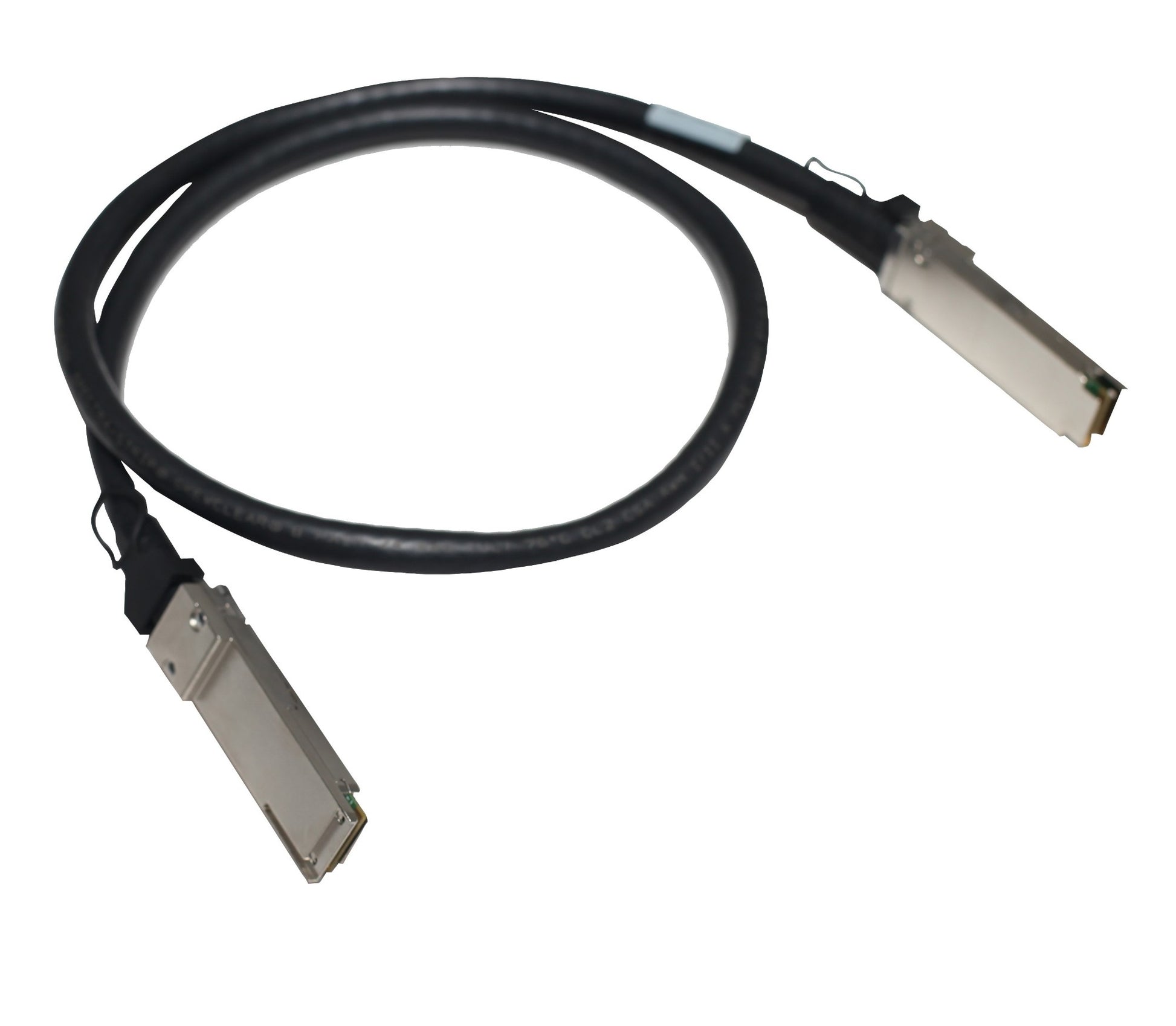

HPE R5Z77A | 200G QSFP56 DAC Cable, 200GBASE-CR4, 1m

SKU:R5Z77A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This HPE 200G QSFP56 to QSFP56 direct attach copper cable is a passive DAC for short-reach 200GbE links. It suits top-of-rack and in-rack connections between switches, servers and adapters in data centre and HPC or AI cluster environments.

The cable is 1m long and carries 200 Gb/s over four 50G PAM4 lanes, conforming to 200GBASE-CR4. It is a passive copper design with QSFP56 connectors at both ends, so there is no optical transmit or receive path and no wavelength to consider. Maximum power draw is 0.1 W and the maximum operating temperature is 70 C. No external power is required.

It connects 200GbE QSFP56 ports on HPE and NVIDIA (Mellanox) 200G switches and adapters. The same family also includes 0.5m (R5Z76A), 2m (R5Z78A) and 2.5m (R5Z79A) lengths, so you can match the cable to the rack layout. Check the HPE Networking Transceiver Options QuickSpecs for the exact platform compatibility matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 200 Gb/s connectivity over passive copper with QSFP56 connectors at both ends
- Four 50G PAM4 lanes for 200GBASE-CR4 operation
- Very low power draw of 0.1 W maximum
- No external power required
- Suited to short-reach top-of-rack and in-rack links
- Available in 0.5m, 2m and 2.5m sibling lengths
- Based on the NVIDIA/Mellanox MCP1650 cable family

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product number: R5Z77A
- Type: Direct attach copper cable (DAC), passive
- Standard: 200GBASE-CR4
- Speed: 200 Gb/s (4x 50G PAM4)
- Connectors: QSFP56 to QSFP56
- Length: 1 m
- Media: Copper
- Maximum power: 0.1 W
- Maximum operating temperature: 70 C
- Wavelength: n/a (copper, no optical TX/RX)
- NVIDIA/Mellanox equivalent: MCP1650-V001E30
- HPE spare part reference: R5Z77-63001

FAQs

Q: Does this cable need external power?
A: No. It is a passive copper cable with a maximum power draw of 0.1 W, so no external power is required.

Q: What ports does it connect to?
A: It connects 200GbE QSFP56 ports on HPE and NVIDIA (Mellanox) 200G switches and adapters. Check the HPE Networking Transceiver Options QuickSpecs for the exact platform compatibility matrix.

Q: Is there an NVIDIA/Mellanox equivalent?
A: Yes. The NVIDIA/Mellanox equivalent is MCP1650-V001E30, and the HPE spare part reference is R5Z77-63001.

Q: Which other lengths are available in this range?
A: The same family includes R5Z76A (0.5m), R5Z78A (2m) and R5Z79A (2.5m). This SKU, R5Z77A, is the 1m length.

Q: Can it be used for long-distance links?
A: No. As a passive copper DAC it is intended for short-reach links such as top-of-rack and in-rack connections. Longer distances need an optical solution.
