HPE

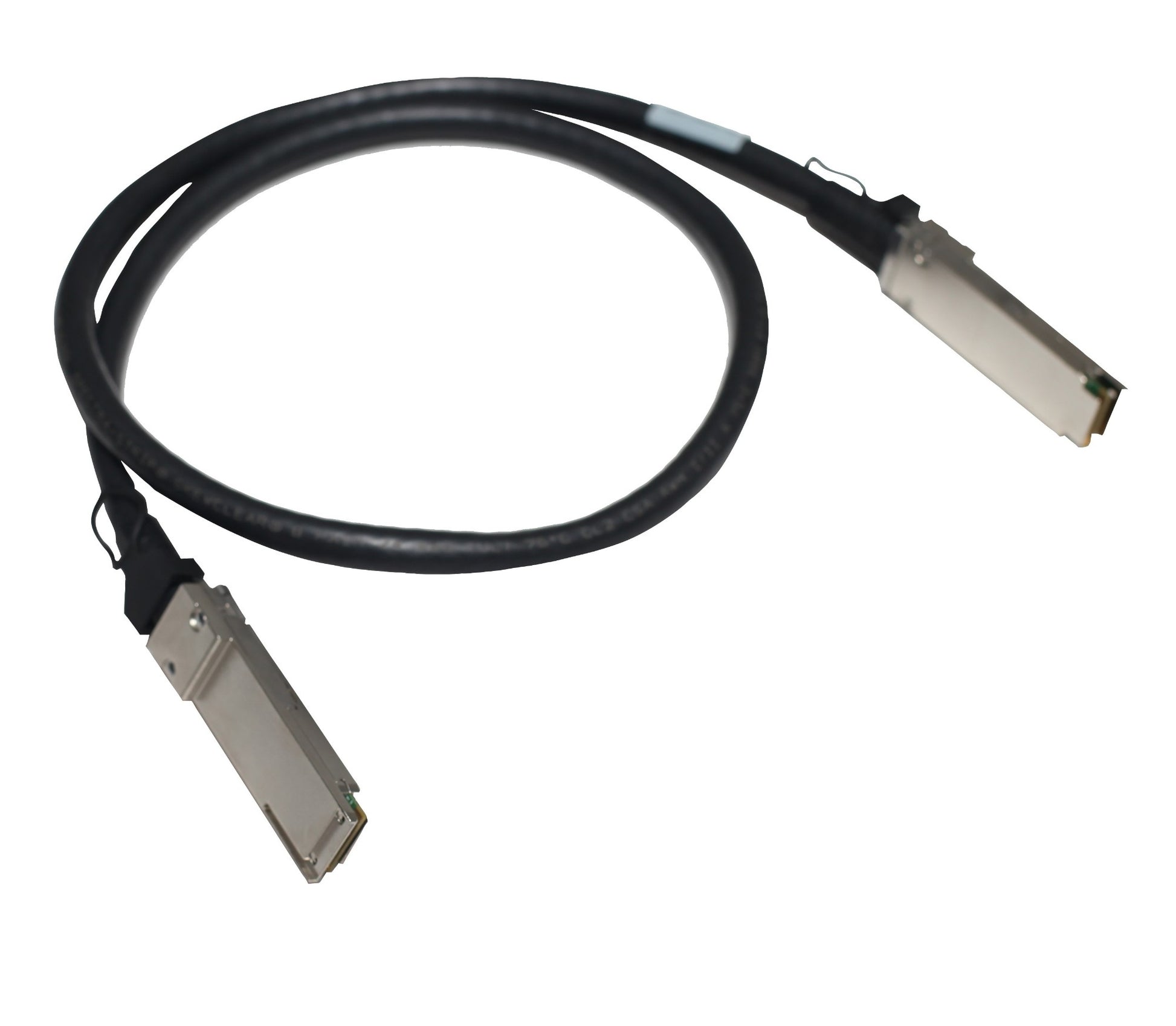

HPE R5Z76A | 200G QSFP56 Passive Copper DAC Cable, 0.5m

SKU:R5Z76A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This HPE 200G QSFP56 direct attach copper cable is built for very short-reach 200GbE links inside a rack. It suits top-of-rack switch to server connections, switch to switch links and AI or HPC cluster interconnect where a low-power, low-cost cable is preferred over optics.

It is a passive 200GBASE-CR4 cable with a QSFP56 connector on both ends, carrying four 50G PAM4 lanes. The cable is 0.5m long, uses copper media with no optical wavelength, and draws a maximum of 0.1 W from the host port. Maximum operating temperature is 70 C. In the 200G DAC range, the 0.5m length is the shortest option, with 1m, 2m and 2.5m lengths available for slightly longer runs.

It fits QSFP56 ports on HPE and NVIDIA (Mellanox) 200GbE switches and network adapters, and is the HPE-branded equivalent of NVIDIA MCP1650-V00AE30. Check the host device's supported-optics list before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Passive copper construction with no optical components and very low power draw
- 4x50G PAM4 lanes for 200GbE throughput
- QSFP56 connector on both ends for direct switch-to-switch or switch-to-server links
- Suited to very short-reach links within a single rack
- Part of HPE's 200G DAC range, with AOC and optical options for longer reach

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product type: Direct attach cable (DAC)
- Standard: 200GBASE-CR4
- Data rate: 200GbE, 4x50G PAM4 lanes
- Connectors: QSFP56 to QSFP56
- Cable type: Passive copper
- Length: 0.5m
- Media: Copper (no optical wavelength)
- Maximum power: 0.1 W
- Maximum operating temperature: 70 C
- Product number: R5Z76A
- Spare/option part number: R5Z76-63001
- OEM cross-reference: NVIDIA MCP1650-V00AE30

FAQs

Q: Does this cable need external power?
A: No. It is a passive copper cable with no external power. It draws a maximum of 0.1 W from the host port.

Q: Which ports and devices does it work with?
A: It fits QSFP56 ports on HPE and NVIDIA (Mellanox) 200GbE switches and network adapters. Check the host device's supported-optics list before ordering.

Q: How does it differ from the other HPE 200G DAC cables?
A: The electrical specification is the same across the range. The difference is length: this R5Z76A is 0.5m, while R5Z77A is 1m, R5Z78A is 2m and R5Z79A is 2.5m.

Q: What is the OEM equivalent of this cable?
A: The NVIDIA and HPE interconnect reference guide lists it as the HPE-branded equivalent of NVIDIA MCP1650-V00AE30.

Q: What should I use if I need a longer run than 0.5m?
A: For slightly longer rack links, HPE offers 1m, 2m and 2.5m DAC options. For longer reach, HPE lists 200G AOC cables from 5m to 15m (R5Z80A to R5Z82A).
