HPE Q9S72A | 100G QSFP28 to 4x 25G SFP28 Breakout DAC, 1m
SKU:Q9S72A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

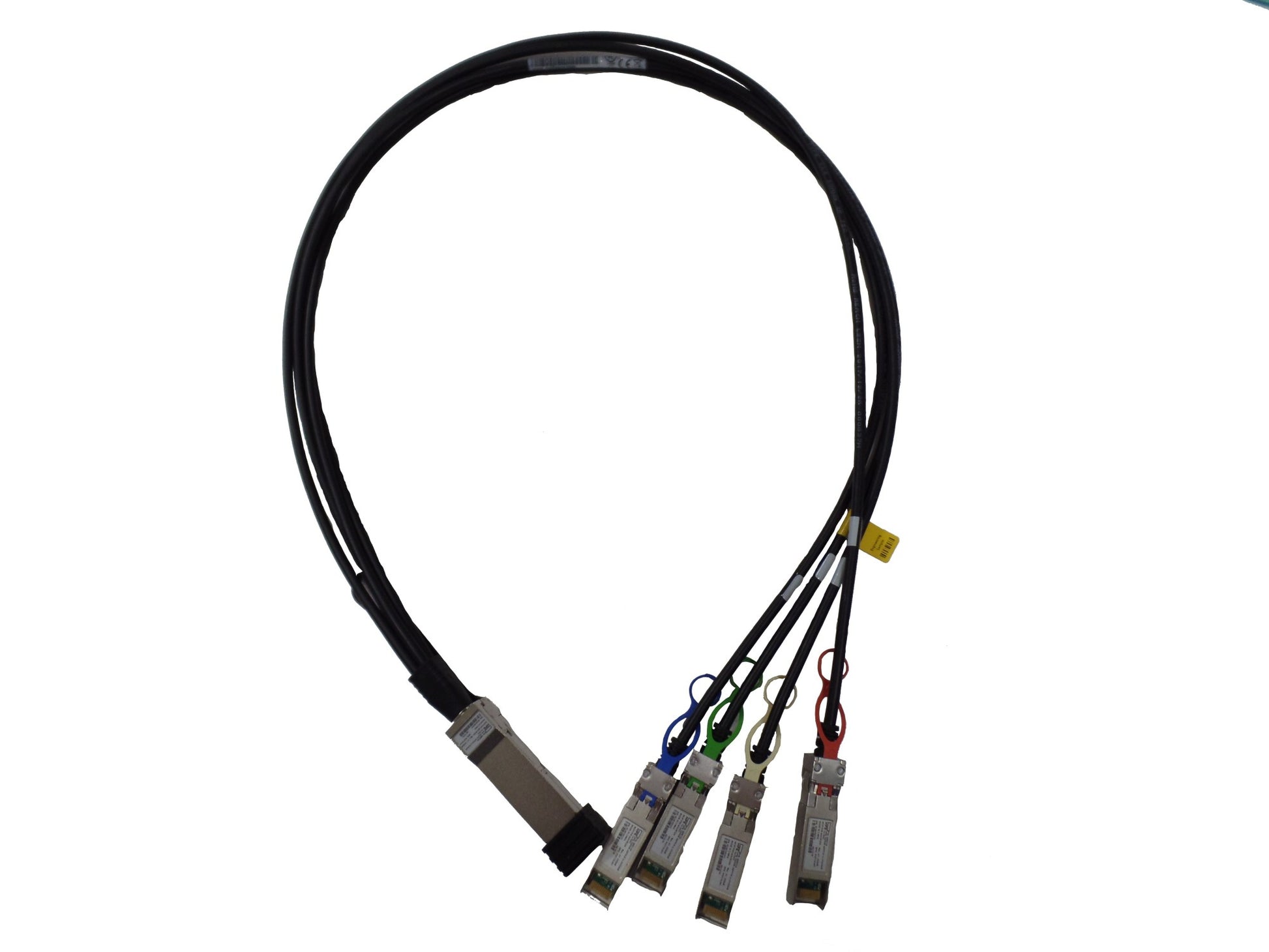

This breakout direct attach cable splits one 100GbE QSFP28 port into four 25GbE SFP28 links over a 1 metre run. It is built for data centre top-of-rack designs where a 100GbE switch port feeds four 25GbE server network adapters within a rack or into an adjacent rack.
The cable uses passive copper twinax construction with no active electronics, so it draws no external power. It follows IEEE 802.3bj and 802.3by (100GBASE-CR4 and 25GBASE-CR) and has a QSFP28 connector on one end. The cable length is 1 m and it has no separable connector, which keeps the assembly simple. The connector measures 18.35 x 72.7 x 8.5 mm and the cable weighs 36 g, and storage temperature range is -40 C to 85 C.
It is intended for HPE networking and server equipment with QSFP28 (100GbE) and SFP28 (25GbE) ports, and is listed under HPE Networking Transceiver Options.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Passive copper twinax construction with no active electronics
- Splits a single 100GbE port into four 25GbE links
- Low-power short-reach connectivity within or between adjacent racks
- Suited to top-of-rack switch to server connections
- Supports data centre and cloud workloads that need high bandwidth
- Complies with 100GBASE-CR4 and 25GBASE-CR
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Connectivity: 1 x 100GbE QSFP28 to 4 x 25GbE SFP28 breakout
- Standards: IEEE 802.3bj and 802.3by (100GBASE-CR4 / 25GBASE-CR)
- Transceiver form factor: QSFP28
- Cable type: passive copper twinax
- Cable length: 1 m
- Connector: no separable connector
- Power consumption: passive, no external power required
- Dimensions: 18.35 x 72.7 x 8.5 mm
- Weight: 36 g
- Storage temperature: -40 to 85 C
- Altitude: up to 3 km (10,000 ft)
FAQs
Q: Does this cable need external power?
A: No. It is a passive copper twinax cable with no active electronics, so it needs no external power.
Q: What equipment does it connect?
A: It connects a QSFP28 100GbE port, such as one on a top-of-rack switch, to four SFP28 25GbE ports, such as server network adapters. It is intended for HPE equipment with QSFP28 and SFP28 ports.
Q: What standards does it support?
A: It supports IEEE 802.3bj and 802.3by, covering 100GBASE-CR4 on the QSFP28 end and 25GBASE-CR on each SFP28 end.
Q: How long is the cable and can the ends be separated?
A: The cable length is 1 m. It has no separable connector, so it is a single fixed breakout assembly.
