HPE Q9S71A | 100G QSFP28 to QSFP28 AOC, 5m, 850nm Multimode
SKU:Q9S71A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

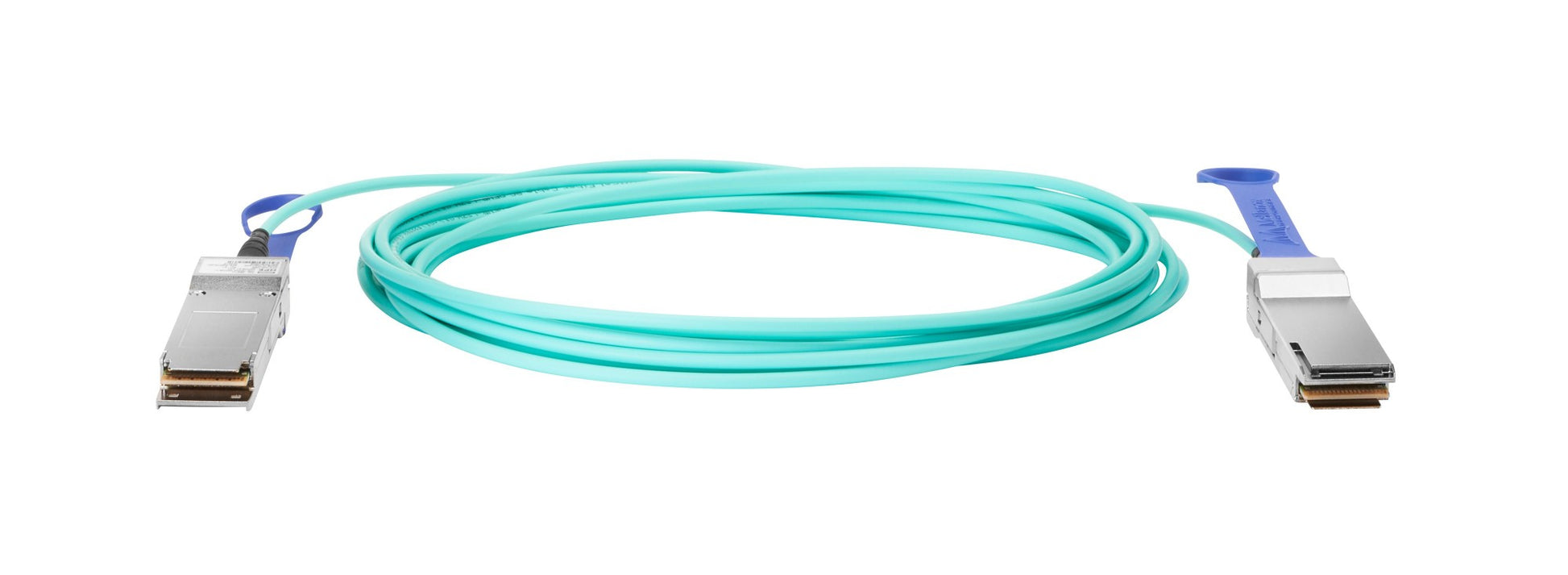

This 5m active optical cable gives 100GbE connectivity with QSFP28 connectors fixed at both ends over 850nm multimode fibre. Because the cable is integrated, no separate transceivers or fibre patch cords are needed. It suits short-reach 100GbE links in data centre racks and between adjacent racks, such as switch-to-switch, switch-to-server and switch-to-storage connections.
The cable carries 4 lanes of 25Gb/s NRZ for a total of 100Gb/s, running at an 850nm wavelength over multimode fibre. It is powered from the host QSFP28 port and draws 2.5W at most, with a maximum operating temperature of 70 C. The QSFP28 connector measures 18.3 x 8.5 x 72.4mm, or around 120mm long including the pull tab.
It is intended for QSFP28 ports on HPE networking switches and 100GbE adapter cards, so confirm host compatibility against the HPE compatibility matrix before ordering.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Integrated QSFP28-to-QSFP28 active optical cable, no separate transceivers or fibre patch cords needed
- Supports 100GbE over 4x25G NRZ lanes at 850nm
- Low power draw of 2.5W maximum, supplied from the host port
- Suited to high-density switches and 100GbE adapter cards
- Designed for short-reach links of up to 5m
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Active optical cable (AOC), QSFP28 to QSFP28, integrated
- Speed: 100GbE, 4x25 Gb/s NRZ
- Length: 5m
- Wavelength: 850nm
- Media: Multimode (MM) fibre
- Maximum power: 2.5W
- Maximum operating temperature: 70 C
- Form factor: QSFP28
- QSFP28 dimensions (W x H x L): 18.3 x 8.5 x 72.4mm
- Length with pull tab: approximately 120mm
- HPE product number: Q9S71A
FAQs
Q: What distance does this cable cover?
A: It is a fixed 5m cable, suited to links within a rack or between adjacent racks. The length cannot be changed because the optics are integrated into the cable.
Q: Does it need separate transceivers?
A: No. The QSFP28 connectors are permanently attached at both ends, so you plug it straight into QSFP28 ports on each device.
Q: How much power does it draw?
A: It draws a maximum of 2.5W, powered from the host QSFP28 port, so no external power supply is needed.
Q: What can I connect it to?
A: It connects QSFP28 ports on HPE networking switches and 100GbE adapter cards. Check the HPE compatibility matrix for your specific host models before ordering.
Q: What fibre type does it use?
A: It uses multimode fibre at 850nm, carrying 4 lanes of 25Gb/s NRZ for 100Gb/s in total.
