HPE Q9S67A | 25GbE SFP28 to SFP28 Active Optical Cable, 3m, MMF
SKU:Q9S67A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

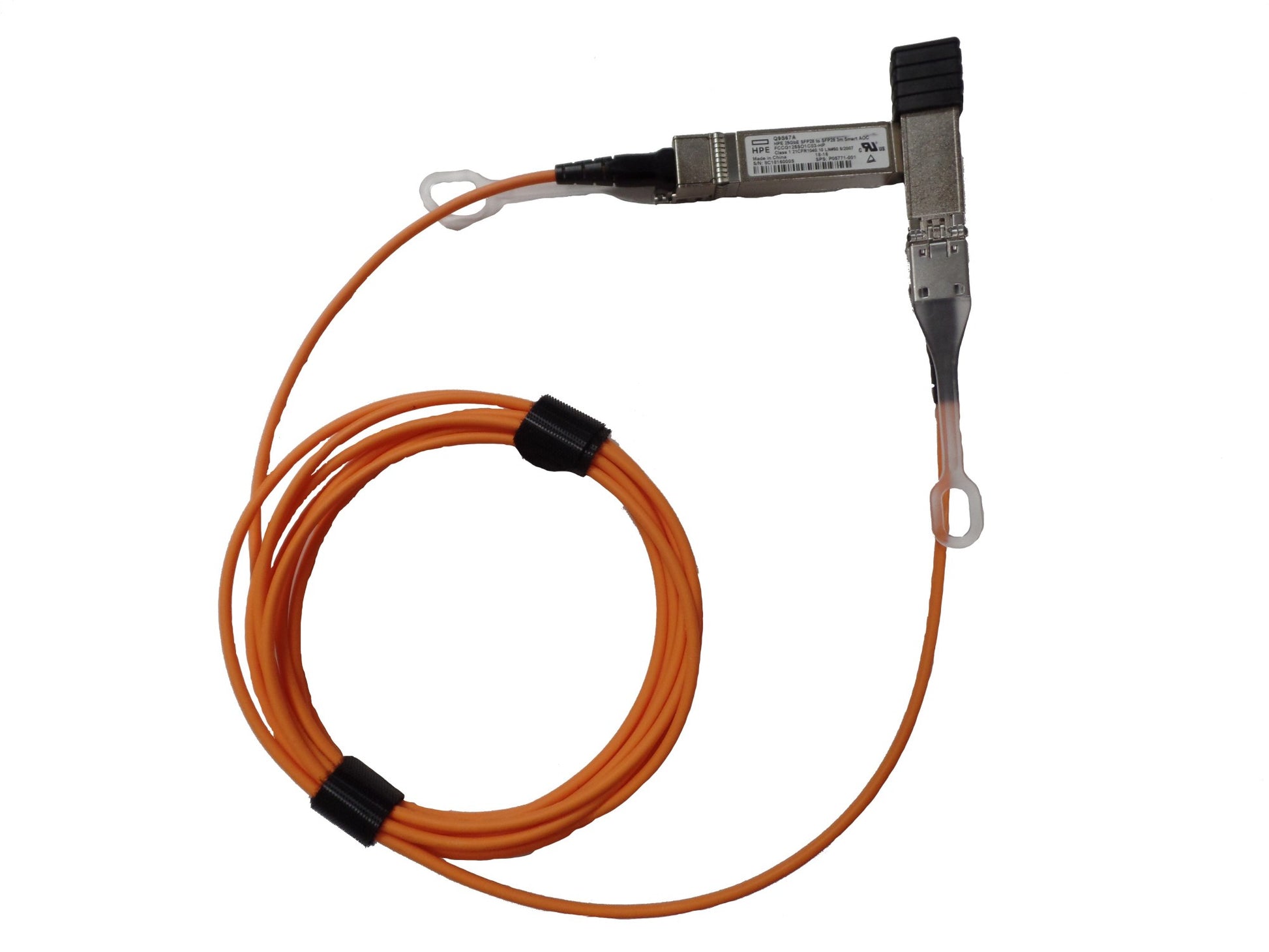

This 25GbE SFP28 to SFP28 Smart Active Optical Cable is built for short-reach links in high-density data centres and HPC environments. It suits server-to-top-of-rack switch connections where a lighter, tighter-bending cable than copper DAC is preferred.
The cable is 3 m long (9.84 ft) with integrated SFP28 connectors at both ends, running over multimode fibre at 850 nm. It carries a 25.78 Gb/s NRZ line rate to the IEEE 802.3by (25GBASE-SR class) standard. It draws a maximum of 1 W from the host SFP28 port, so it needs no separate power supply, and it is rated to a maximum operating temperature of 70 C.
It plugs into SFP28 ports on HPE and Aruba servers, network adapters and switches that support 25GbE. The same range also includes 5 m (Q9S68A), 10 m (Q9S69A) and 15 m (Q9S70A) lengths for longer runs.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Cost-effective alternative to separate transceivers and fibre for short-distance links
- Smaller bend radius than copper DAC for tidier cable routing
- Lower power consumption than traditional copper cables
- Much lighter than copper DAC, easing load on ports and cable management
- SFP28 form factor supporting the SR standard for 25-Gigabit multimode fibre connectivity
- Suited to high-density data centre and HPC applications
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Active Optical Cable (AOC)
- Ends: SFP28 to SFP28, integrated connectors
- Length: 3 m (9.84 ft)
- Speed: 25 Gbit/s, 25.78 Gb/s NRZ line rate
- Wavelength: 850 nm
- Media: multimode fibre (MMF)
- Standard: IEEE 802.3by (25GBASE-SR class)
- Maximum power: 1 W
- Maximum operating temperature: 70 C
- Product number: Q9S67A
FAQs
Q: Does it need a separate power supply?
A: No. The cable is powered from the host SFP28 port and draws a maximum of 1 W.
Q: What does it plug into?
A: It plugs into SFP28 ports on HPE and Aruba servers, network adapters and switches that support 25GbE. Check the device QuickSpecs or the HPE Aruba transceiver guide for per-device support.
Q: How does it differ from the other lengths in the range?
A: Q9S67A is the 3 m cable. The same range includes Q9S68A at 5 m, Q9S69A at 10 m and Q9S70A at 15 m.
Q: Why choose an AOC over a copper DAC?
A: An AOC is lighter, has a smaller bend radius and uses less power than copper DAC, which helps in high-density racks.
