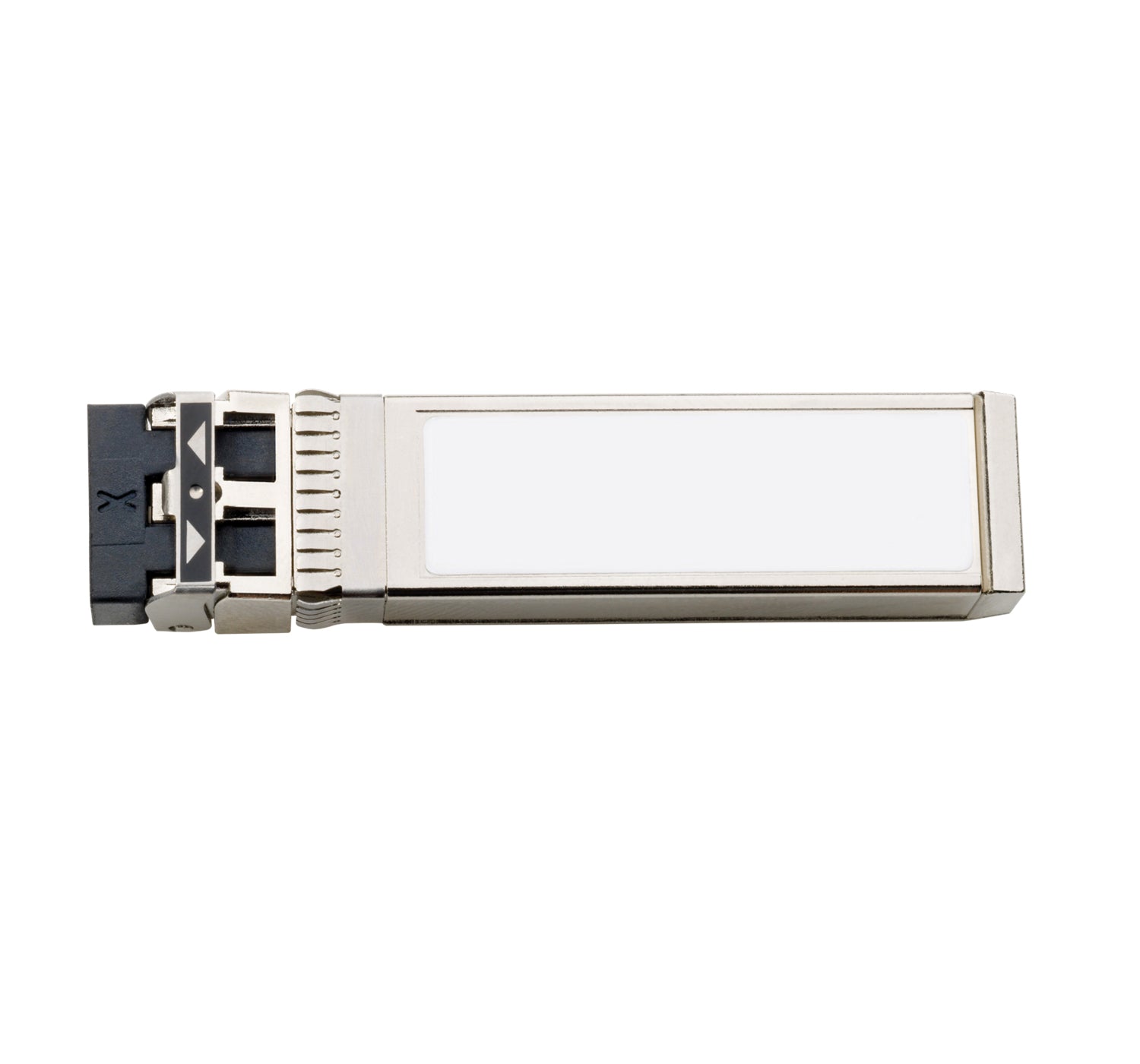

HPE Q9D30A | C-series 32G Fibre Channel SFP+ Transceiver, 850nm SW, 100m
SKU:Q9D30A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This short-wave 32Gb Fibre Channel SFP+ transceiver is built for HPE C-series Fibre Channel switches and directors. It suits short-reach links inside a data centre, such as server-to-SAN-switch, switch-to-storage and inter-switch connections over multimode fibre in storage area networks.
The module carries one 32Gb Fibre Channel (SW) interface at a maximum data rate of 32000 Mbit/s. It operates at 850nm over multimode fibre with an LC duplex connector, and reaches up to 100m on OM4. It uses the SFP+ form factor and is compatible with the SFP28 MSA specification. As a short-wave part, it is the shorter-reach sibling of the Q9D31A long-wave variant, which is rated for 10km.
It is a hot-swappable pluggable module and draws power from the host switch port, so no separate power supply is needed. It is listed as a 32Gb FC transceiver option for C-series switches such as the SN6630C, and is also used in hosts including the SN6610C, SN6710C, SN6720C, SN8500C, SN8700C and StoreFabric SN6620C.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 32Gb Fibre Channel short-wave optical connectivity for SAN fabrics
- Hot-swappable pluggable module
- Compatible with the SFP28 MSA specification
- Designed for HPE C-series (Cisco MDS-based) Fibre Channel switches and directors
- LC duplex connector for multimode fibre cabling
- Powered by the host switch port with no separate power supply
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Device type: SFP+ transceiver module
- Form factor: Plug-in, hot-swappable module
- Data link protocol: 32Gb Fibre Channel (SW)
- Interfaces: 1 x 32Gb Fibre Channel (SW)
- Maximum data transfer rate: 32000 Mbit/s
- Wavelength: 850nm (short wave)
- Media: Multimode optical fibre
- Connector: LC duplex
- Reach: up to 100m on OM4
- Operating temperature: 0 to 70 C
- Power: supplied by the host switch port
- Standards: SFP28 MSA compatible
- EAN/GTIN: 0190017300580
FAQs
Q: How does the Q9D30A differ from the Q9D31A?
A: The Q9D30A is the short-wave (SW) version at 850nm for multimode fibre, with a reach of up to 100m on OM4. The Q9D31A is the long-wave version rated for 10km.
Q: What fibre type does it use?
A: It uses multimode fibre with an LC duplex connector. The 100m reach applies to OM4 cabling.
Q: Which switches is it designed for?
A: It is a 32Gb Fibre Channel option for HPE C-series switches, including the SN6630C, SN6610C, SN6710C, SN6720C, SN8500C, SN8700C and StoreFabric SN6620C.
Q: Does it need a separate power supply?
A: No. The module is powered by the host switch port.
Q: Is it hot-swappable?
A: Yes. It is a hot-swappable pluggable module that can be inserted or removed while the switch is running.
