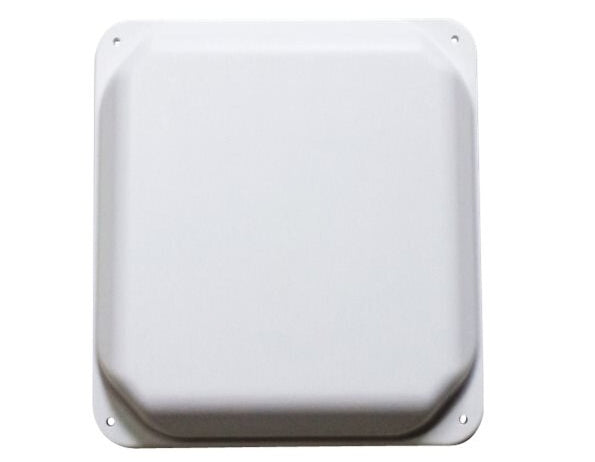

• HPE Q8N50A white square vent cover with metal corners and screws
1 1

HPE

HPE Q8N50A | ANT-4x4-D100 Dual-Band 5dBi Directional Antenna, 4x4 MIMO

Q8N50A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ANT-4x4-D100 is a dual-band directional panel antenna for Aruba outdoor wireless deployments. It is designed to give focused 2.4 GHz and 5 GHz coverage where an omnidirectional pattern would waste signal, such as along buildings, car parks, yards and other defined outdoor areas.

The antenna provides 5 dBi of gain with a 90 x 90 degree beamwidth. It is built for 4x4 MIMO operation with +/-45 degree and vertical polarisation, and uses N-type connectors. A mounting bracket is part of this model, allowing wall or pole mounting to aim the coverage pattern where it is needed.

It is listed for use with HPE Aruba AP-374, AP-584, AP-585 and AP-587 outdoor access points, making it a direct option for sites already built around those platforms.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Directional panel antenna for focused outdoor Wi-Fi coverage
- Dual-band operation across 2.4 GHz and 5 GHz
- 4x4 MIMO support for multi-stream access points
- 90 x 90 degree beamwidth for defined coverage areas
- Mounting bracket for wall or pole installation
- Listed for Aruba AP-374, AP-584, AP-585 and AP-587 outdoor access points

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Type: Directional panel antenna
- Frequency bands: 2.4 GHz and 5 GHz dual-band
- Gain: 5 dBi
- Beamwidth: 90 x 90 degrees
- Polarisation: +/-45 degrees and vertical
- MIMO: 4x4
- Connector: N-type
- Mounting: wall or pole, bracket included
- Application: outdoor use

FAQs

Q: Which access points does this antenna work with?
A: It is listed for HPE Aruba AP-374, AP-584, AP-585 and AP-587 outdoor access points.

Q: How can it be mounted?
A: It can be wall mounted or pole mounted using the bracket supplied with this model.

Q: What coverage pattern does it provide?
A: It is a directional panel antenna with a 90 x 90 degree beamwidth and 5 dBi of gain, suited to targeted outdoor coverage rather than all-round coverage.

Q: How does this model differ from other Aruba antennas?
A: This model is the dual-band 90x90 degree 5 dBi version with +/-45 and vertical polarisation, 4x4 MIMO and N-type connectors, supplied with a mounting bracket.
