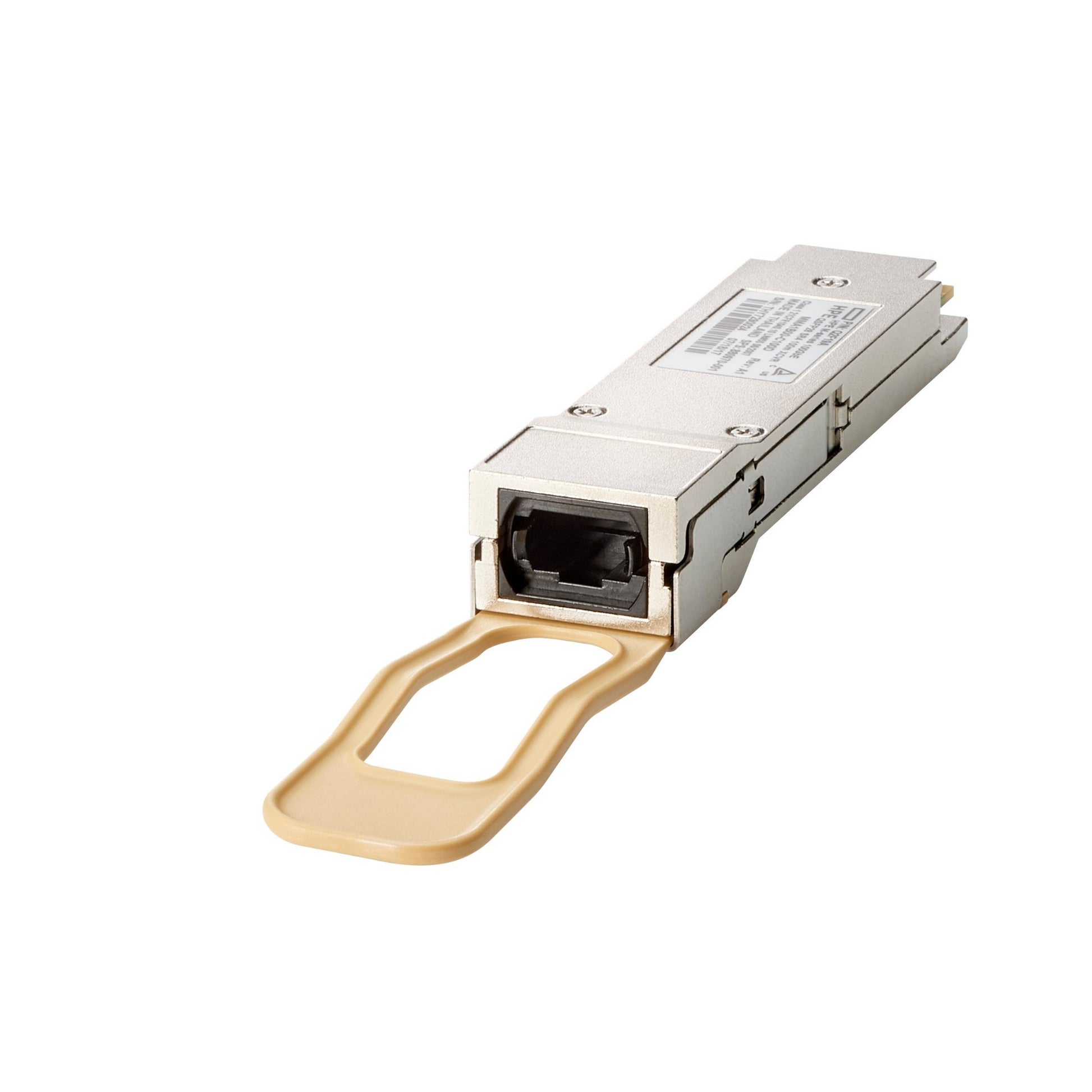

HPE Q2F19A | 100G QSFP28 Transceiver, 100GBASE-SR4, MPO-12, 100m
SKU:Q2F19A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This 100G QSFP28 transceiver is a hot-pluggable optical module for 100GBASE-SR4 links over multimode fibre. It suits short-reach 100GbE connections inside data centres, such as top-of-rack to spine and leaf switch uplinks and server-to-switch links.
The module uses four parallel 25 Gb/s NRZ lanes at 850 nm with an MPO-12 connector. Reach is up to 100 m on OM4 multimode fibre and 70 m on OM3. Maximum power draw is 2.5 W, drawn from the host port, so no separate power supply is needed. This is the standard 70 C temperature variant, with TX power of -2 to 2.4 dBm and RX power of -6 to 2.4 dBm.
It fits QSFP28 ports on HPE switches and adapters that support 100GbE SR4 optics. Cable it with MPO-12 multimode fibre, and check the host device's supported-optics list before deployment.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Hot-pluggable QSFP28 form factor for high-density switches and adapters
- 100GBASE-SR4 over multimode fibre using a standard MPO-12 connector
- Four parallel 25G NRZ lanes at 850 nm
- Low power draw of 2.5 W max
- Suited to high-bandwidth, low-latency links between compute nodes and switch nodes
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Form factor: 100GbE QSFP28
- Standard: 100GBASE-SR4
- Lane speed: 4 x 25 Gb/s NRZ
- Wavelength: 850 nm
- Connector: MPO-12 multimode
- Reach: up to 100 m on OM4, 70 m on OM3
- TX power: -2 dBm min, 2.4 dBm max
- RX power: -6 dBm min, 2.4 dBm max
- Power consumption: 2.5 W max
- Maximum operating temperature: 70 C
- Dimensions (W x H x L): 18.3 x 8.5 x 72.4 mm
FAQs
Q: What fibre does this transceiver need?
A: It needs MPO-12 multimode fibre. Reach is up to 100 m on OM4 and 70 m on OM3.
Q: Does it need a separate power supply?
A: No. It draws a maximum of 2.5 W from the host QSFP28 port.
Q: Which ports is it compatible with?
A: It fits QSFP28 ports on HPE switches and adapters that support 100GbE SR4 optics. Check the host device's supported-optics list before ordering.
Q: How does this differ from the extended temperature variant?
A: This is the standard variant rated to 70 C. The related S2T35A extended temperature pull tab transceiver is rated to 85 C.
