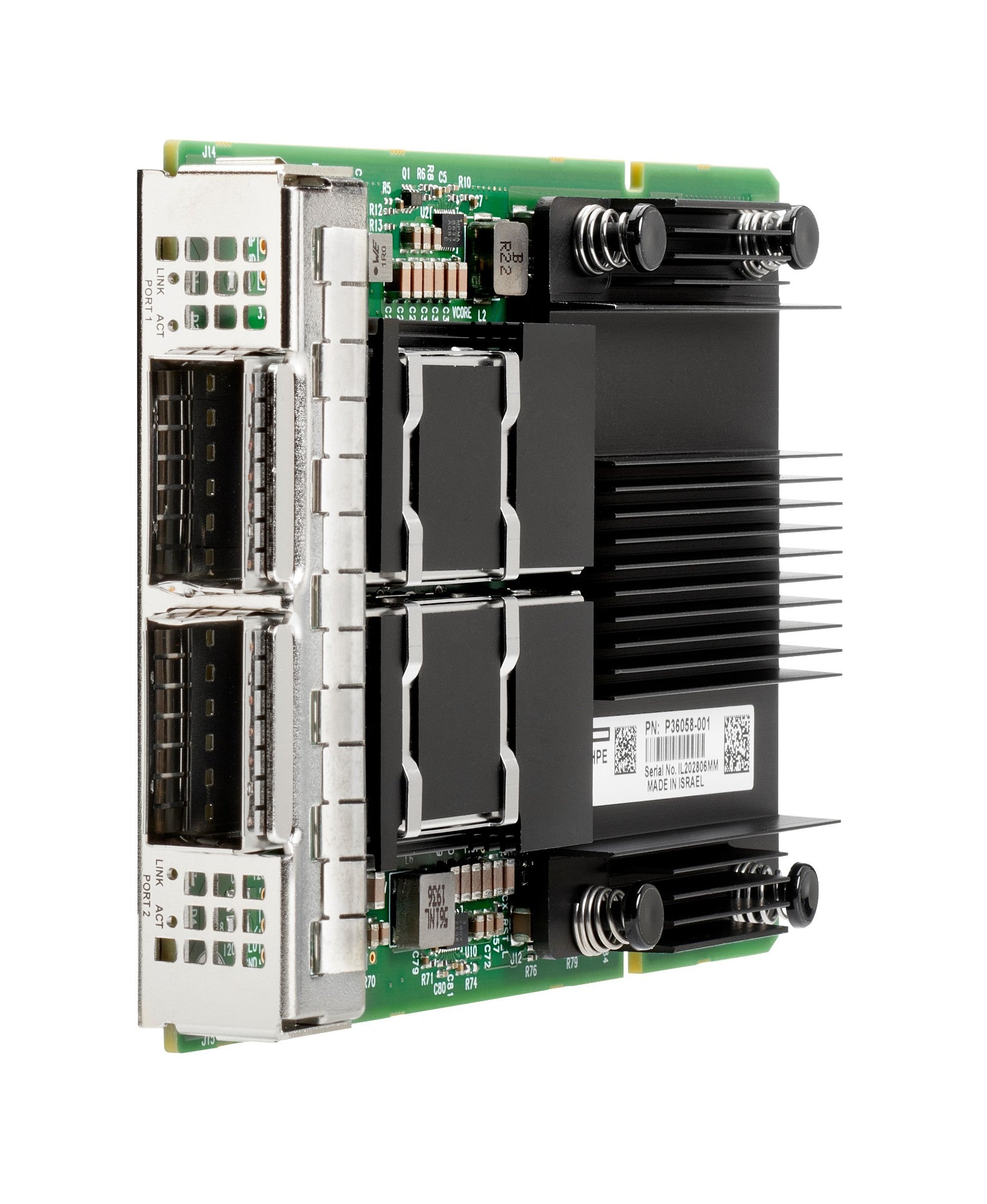

HPE P31348-B21 | 200Gb HDR IB/200GbE 2x QSFP56 | PCIe 4.0 x16 (OCP NIC 3.0) | VPI, RoCEv2/SR‑IOV

SKU:P31348-B21

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

OCP NIC 3.0 dual‑port 200G adapter for density‑optimized servers, supporting HDR InfiniBand and 200GbE in a single device. QSFP56 cages accept HDR optics or DAC to fit HPC, AI, and cloud fabrics. PCIe 4.0 x16 electrical interface via OCP 3.0 ensures high throughput with RDMA/RoCEv2 and advanced offloads for overlay networks and NVMe‑oF storage.

Features

- Space‑efficient OCP NIC 3.0 form factor
- Dual‑mode HDR InfiniBand or 200GbE on two QSFP56 ports
- PCIe 4.0 x16 electrical for high throughput
- Low‑latency RDMA/RoCEv2 acceleration
- SR‑IOV and overlay offloads for cloud and virtualization
- Ideal for HPC, AI, and NVMe‑oF storage fabrics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Will this card fit a standard PCIe slot?
A: No. It is an OCP NIC 3.0 module and requires a compatible OCP 3.0 slot in the server.

Q: Does it support both InfiniBand and Ethernet?
A: Yes. As a VPI adapter it operates in either HDR InfiniBand or 200GbE mode.

Q: What cables/optics are required for 200G links?
A: Use QSFP56 HDR‑capable transceivers or QSFP56 DAC/AOC matched to your required reach.

Q: Is RDMA available in Ethernet mode?
A: Yes, RDMA via RoCEv2 is supported when operating in Ethernet mode.

Q: Are optics included?
A: No, optics and cables must be purchased separately.

Technical Specifications

- Form factor: OCP NIC 3.0
- Port configuration: 2x 200G (HDR InfiniBand or 200GbE)
- Transceiver interface: QSFP56
- Electrical interface: PCI Express 4.0 x16 via OCP slot
- Mode: VPI dual‑protocol (InfiniBand/Ethernet)
- Offloads: RDMA, RoCEv2, SR‑IOV, NVMe‑oF, VXLAN/GENEVE, checksum/TSO/LRO, RSS
- Media support: QSFP56 HDR optics and DAC/AOC
- Compatibility: Requires server with an available OCP NIC 3.0 slot
