HPE

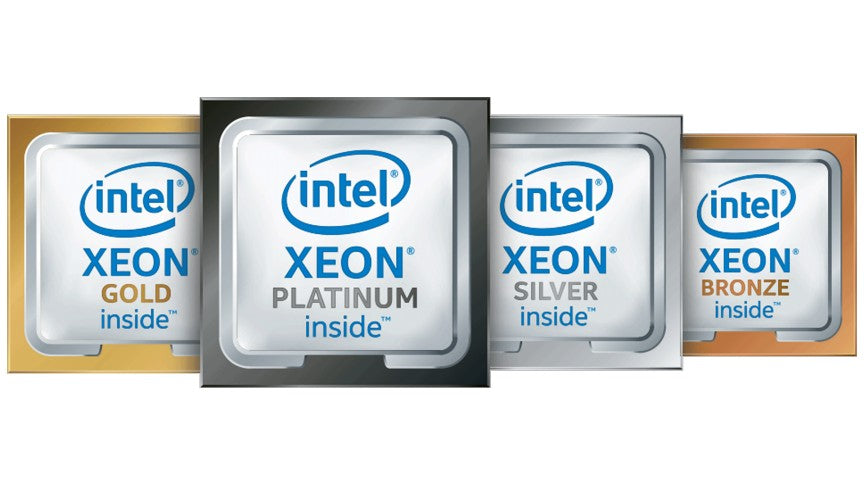

HPE P24471-B21 | Xeon Gold 6242R | 20-core 3.1 GHz, up to 4.1 GHz Turbo | 205W | LGA3647 | DDR4-2933 6-ch | 3x UPI 10.4 GT/s | DL380 Gen10 CPU Kit

SKU:P24471-B21

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Boost your DL380 Gen10 with a 2nd Gen Xeon Scalable R-series processor tuned for high clock and dense cores. The 6242R delivers 20 cores at a 3.1 GHz base with up to 4.1 GHz turbo, 205W TDP, and full support for 6-channel DDR4-2933 and Intel Optane DC Persistent Memory. Ideal for mixed virtualized workloads, databases, and performance-sensitive applications that benefit from strong per-core speed.

Features

- High-frequency 20-core design for balanced throughput and per-core performance
- DL380 Gen10-validated thermals and power at 205W TDP
- Supports DDR4-2933 and Intel Optane DC Persistent Memory for large, fast memory pools
- Enterprise acceleration with AVX-512 and Intel DL Boost (VNNI) for AI-infused workloads
- Scales to dual-CPU configurations for additional cores and I/O

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this compatible with DL380 Gen10 Plus?
A: This kit is intended for DL380 Gen10 (LGA3647). DL380 Gen10 Plus platforms use 3rd Gen Xeon Scalable (LGA4189) and are not compatible.

Q: Do I need a matching second CPU for dual-processor configurations?
A: Yes. Use the same processor model and similar stepping/feature set per the server’s QuickSpecs for proper operation.

Q: Does the kit include a heat sink and installation hardware?
A: HPE option kits typically include required components, but contents can vary by option and region. Check the specific QuickSpecs or contents list for this part.

Q: Will I need a BIOS/firmware update?
A: Updating system ROM/firmware to the latest DL380 Gen10 release is recommended before installing new CPUs.

Q: Can I mix different Xeon models in the same server?
A: Mixing different CPU models is not supported. Both processors must be identical in model and features.

Technical Specifications

- CPU model: Intel Xeon Gold 6242R (Cascade Lake-R, 2nd Gen Xeon Scalable)
- Cores/threads: 20/40
- Base frequency: 3.1 GHz
- Max Turbo frequency: up to 4.1 GHz
- Last-level cache (L3): 27.5 MB
- TDP: 205 W
- Socket: LGA3647
- UPI: 3 links @ 10.4 GT/s
- Memory support: 6-channel DDR4-2933, RDIMM/LRDIMM, ECC
- Intel Optane DC Persistent Memory support (2nd Gen platform)
- PCIe: 48 lanes, PCIe 3.0
- Instruction sets/features: AVX-512 (2 FMA), Intel DL Boost (VNNI), AES-NI, SGX (select SKUs), Intel 64
- Virtualization: Intel VT-x, VT-d, EPT
- Process technology: 14 nm
- Form factor: HPE option kit for DL380 Gen10
- Dual-processor capable: Yes (match model/stepping per server guidelines)
