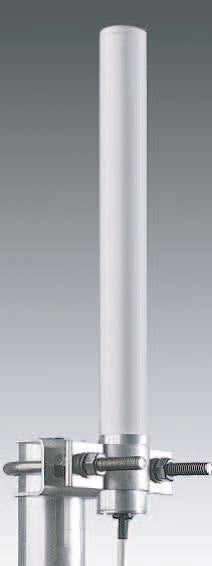

• HPE JW004A dual-band 2.4/5GHz omni AP antenna with RP-SMA, 6dBi white cylindrical design
1 1

Aruba

Aruba JW004A | Dual-Band Omni Antenna, 3/6 dBi, RP-SMA, 36in Pigtail

JW004A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba JW004A is a dual-band omnidirectional antenna for Aruba access points with external RP-SMA antenna connectors. It covers both the 2.4 GHz and 5 GHz bands and supports 802.11b/a/g/n, making it suited to warehouses, campuses and other open areas that need even coverage in all directions. It is rated for both indoor and outdoor installation.

Gain is 3 dBi at 2.4 GHz and 6 dBi at 5 GHz, with vertical polarization and a 360 degree H-plane beamwidth. The E-plane beamwidth is 50 degrees at 2.4 GHz and 20 degrees at 5 GHz. It connects through an integrated 914 mm (36 in) coaxial pigtail cable terminated in RP-SMA, and the polycarbonate enclosure is rated for operation from -40 C to +70 C. This listing is for a single antenna.

The JW004A is a passive antenna with a maximum input power of 10 W, so it needs no power supply. It is documented as an antenna option for the Aruba AP-504 and AP-514, and appears in the AP-530 Series QuickSpecs. Mounting hardware is available for ceiling, I-beam or pole installation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Omnidirectional pattern across both 2.4 GHz and 5 GHz bands without the compromise typical of dual-band antennas
- Supports 802.11b/a/g/n deployments
- Suitable for indoor and outdoor installation
- Ceiling, I-beam and pole mounting options
- 36-inch integrated pigtail cable with RP-SMA connector
- Passive design with no power supply required

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Antenna type: Dual-band omnidirectional
- Frequency and gain: 2.4 - 2.5 GHz at 3 dBi
- Frequency and gain: 5.15 - 5.875 GHz at 6 dBi
- Polarization: Vertical
- Beamwidth E-plane: 50 degrees (2.4 GHz), 20 degrees (5 GHz)
- Beamwidth H-plane: 360 degrees
- Impedance: 50 ohms
- Maximum input power: 10 W
- VSWR (minimum performance): less than 2.0:1
- Connector: RP-SMA
- Pigtail cable: 914 mm (36 in) coaxial
- Height: 245 mm (9.6 in)
- Weight: 140 g (0.30 lb)
- Enclosure: Polycarbonate
- Operating temperature: -40 C to +70 C
- Installation: Indoor and outdoor
- Mounting: Ceiling, I-beam or pole

FAQs

Q: Which Aruba access points is the JW004A used with?
A: It suits Aruba APs with external RP-SMA antenna connectors. It is documented as an antenna option for the AP-504 and AP-514, and is listed in the AP-530 Series QuickSpecs.

Q: Does the JW004A need power?
A: No. It is a passive antenna with no power supply required. Maximum input power is 10 W.

Q: Is this a single antenna or a kit?
A: This listing is for a single antenna. The AP-ANT-19-KIT is a separate kit of three antennas.

Q: Can it be installed outdoors?
A: Yes. It is rated for indoor and outdoor installation and operates from -40 C to +70 C.

Q: What gain does it provide on each band?
A: Gain is 3 dBi on the 2.4 GHz band and 6 dBi on the 5 GHz band, with vertical polarization.
