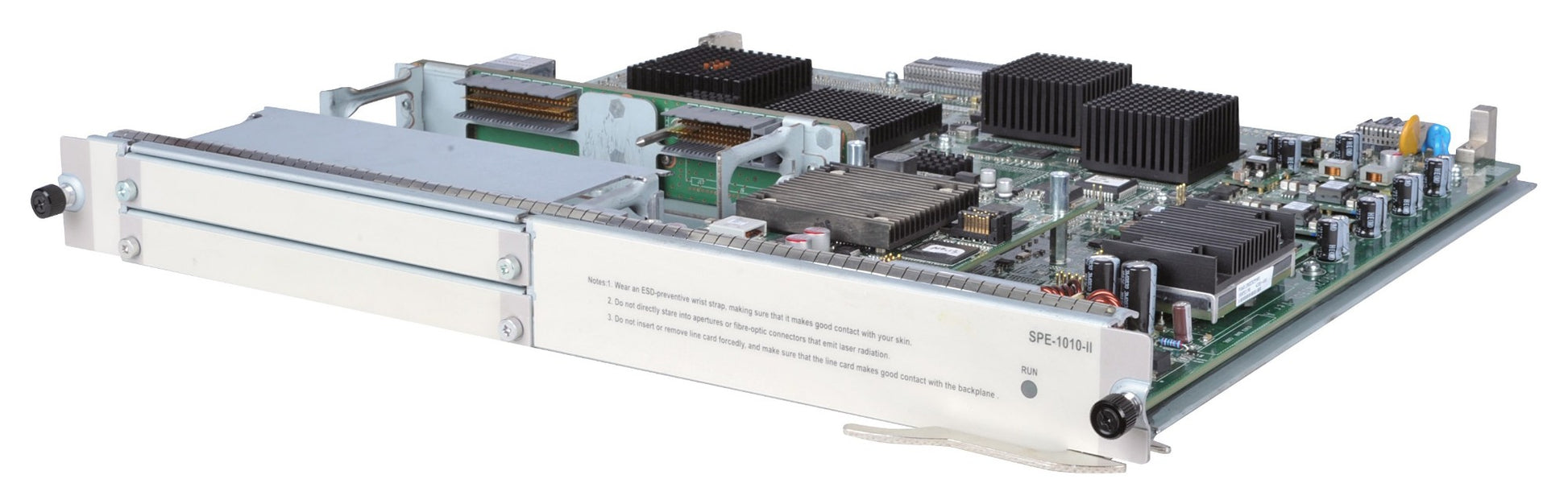

• HPE JM045A MSR4000 MPU router module with silver circuit board
1 1

HPE

HPE JM045A | MSR4000 MPU-100-X1 Main Processing Unit Router Module

JM045A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The MSR4000 MPU-100-X1 is the main processing unit for the MSR4000 series of modular branch routers. It is the control-plane module that handles route calculation and system management, and it provides the 1 GbE management port. It suits extra-large branch offices, headquarters and campus WAN edge deployments where voice, VPN and firewall services run concurrently. The control plane is separated from the data plane for resiliency, and the chassis supports two MPUs for redundancy.

The MPU-100-X1 uses a 2-core RISC processor at 1 GHz with 2 GB of DDR3 SDRAM and 512 MB of flash by default. It is the newer revision of the MPU-100 family and runs Comware v7, with Comware 7 release 242 or higher required on the MSR4060 and MSR4080 chassis. A Multi Gigabit Fabric offloads Layer 2 forwarding from the main processor.

This module installs in the MSR4060 (JG403A) and MSR4080 (JG402A) chassis and works alongside the SPU-100-X1 (R8V30A) and SPU-400-X1 (JM046A) Service Processing Units. One MPU is the minimum per chassis and two are the maximum. All installed MPUs must be the same SKU, so it cannot be mixed with the older MPU-100 (JG412A) or the TAA-compliant JG869A.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Control plane separated from the data plane (SPU) for resiliency
- Dual-MPU support for high reliability
- Multi Gigabit Fabric offloads Layer 2 forwarding from the main processor
- Runs the Comware v7 operating system
- Internal and external CF card storage options on the MSR4000 platform
- Chassis-level feature set including IPv6, MPLS, OpenFlow SDN and IPSec VPN
- Zero-touch deployment with IMC management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: JM045A
- Form factor: Plug-in main processing unit module
- Processor: 2-core RISC at 1 GHz
- Memory: 2 GB DDR3 SDRAM (default)
- Flash capacity: 512 MB (default)
- Management port: 1 x 1 GbE
- Supported chassis: MSR4060 (JG403A) and MSR4080 (JG402A)
- MPU slots per chassis: 2 (minimum 1, maximum 2)
- Configuration rule: all MPUs must be the same SKU, no mixing of MPU types
- Operating system: Comware v7 (release 242 or higher required)
- Power: supplied from the chassis backplane
- Chassis operating temperature: 0 to 45 C
- Chassis operating relative humidity: 5% to 90%, noncondensing
- Chassis storage temperature: -40 to 70 C
- Chassis altitude: up to 5 km

FAQs

Q: Which chassis does the MPU-100-X1 fit?
A: It installs in the MSR4060 (JG403A) and MSR4080 (JG402A) router chassis. Each chassis takes a minimum of one and a maximum of two MPUs.

Q: Can I mix it with the older MPU-100 JG412A?
A: No. All MPUs in a chassis must be the same SKU, so the MPU-100-X1 cannot be mixed with the MPU-100 (JG412A) or the TAA-compliant JG869A.

Q: What software does it need?
A: It runs Comware v7. On the MSR4060 and MSR4080 the MPU-100-X1 requires Comware 7 release 242 or higher.

Q: Does it work with the Service Processing Units?
A: Yes. It works alongside the SPU-100-X1 (R8V30A) and SPU-400-X1 (JM046A) Service Processing Units in the same chassis.

Q: Does it need its own power supply?
A: No. It is powered from the chassis backplane, which takes one to four hot-swappable power supplies.
