HPE

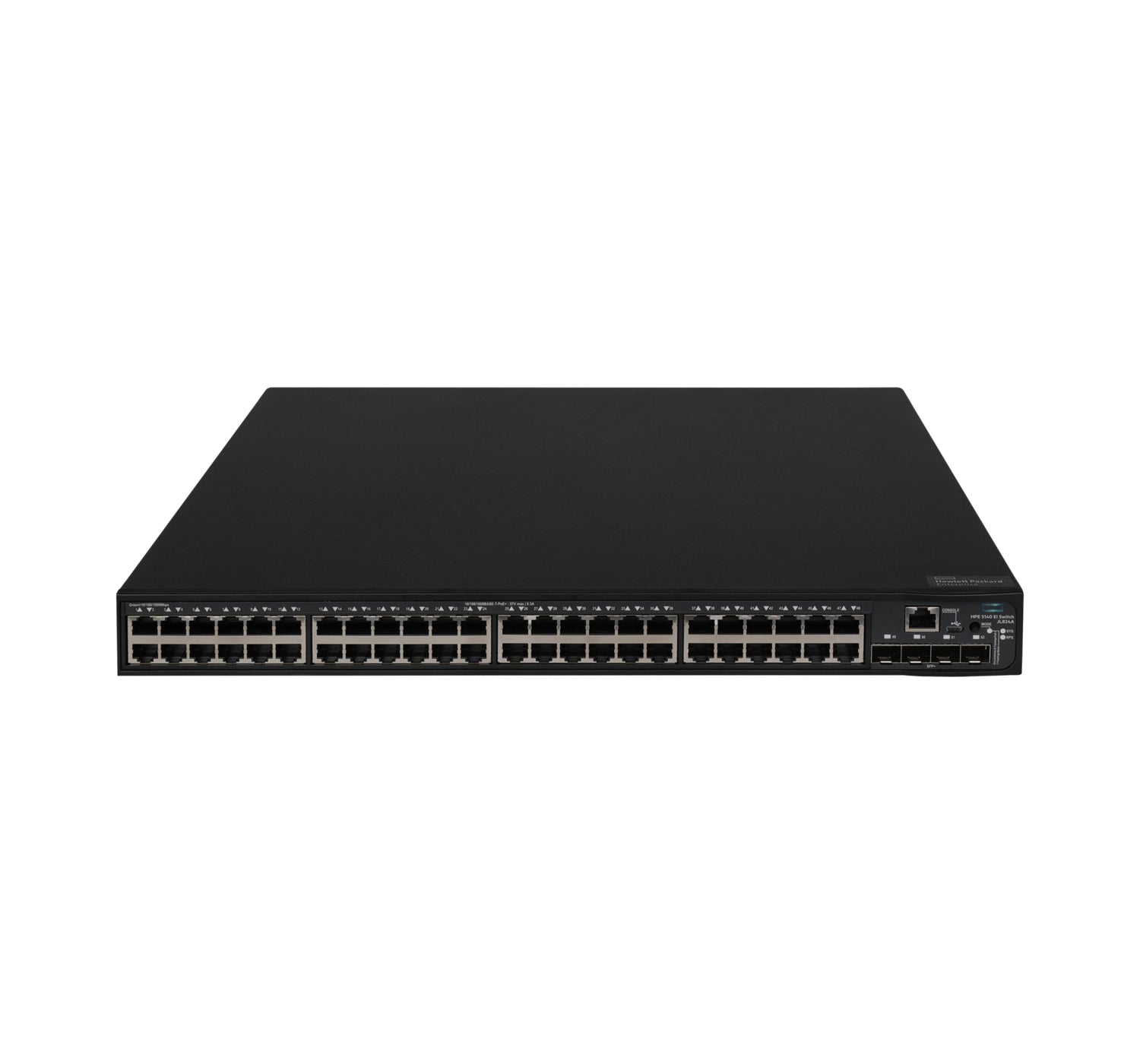

HPE JL824A#ABG | 48x 1G PoE+ | Uplinks: 4x 10G SFP+ | EI L3, IRF stacking, Comware

SKU:JL824A#ABG

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Campus access switch with 48x 10/100/1000 PoE+ ports and 4x 10G SFP+ fiber uplinks for high-speed aggregation. EI software on Comware OS provides advanced Layer 2/3 features, strong security, IRF stacking, and robust QoS for voice, video, and Wi‑Fi edge.

Features

- 48-port PoE+ density for large edge deployments
- 4x 10G SFP+ uplinks for fiber aggregation and redundancy
- EI L3 feature set with OSPF, static routing, and ECMP
- IRF stacking simplifies management and boosts resiliency
- Comprehensive edge security and policy enforcement
- Flexible PoE power allocation for diverse endpoint mixes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this regional variant change hardware capabilities?
A: No, the #ABG regional code primarily reflects localized compliance and accessories; core hardware features are the same.

Q: Are all 48 ports PoE+ capable?
A: Yes, all access ports support IEEE 802.3af/at PoE+ up to 30W per port.

Q: Can I stack this switch with other 5140 EI models?
A: Yes, IRF allows stacking with compatible 5140 EI models to form a single logical switch.

Q: What fiber modules are supported on the SFP+ uplinks?
A: Standard 10G SFP+ optics such as SR, LR, and LRM, plus DAC/AOC for short-reach.

Q: Is IPv6 routing supported?
A: Yes, dual-stack IPv4/IPv6 with Layer 3 features is supported in the EI software.

Technical Specifications

- Access ports: 48x 10/100/1000 Mbps PoE+ (802.3af/at, up to 30W per port)
- Uplinks: 4x 10G SFP+
- Software tier: EI (Enhanced) feature set, Comware OS
- Layer 3: static routing, RIP/OSPF (area), ECMP
- Layer 2: VLANs, MSTP/RSTP, LACP link aggregation
- High availability: IRF stacking, VRRP-like gateway redundancy
- Security: 802.1X (MAC/port-based), DHCP snooping, ARP/ND protection, ACLs
- QoS: multi-queue scheduling, classification/marking, policing/shaping
- Monitoring: sFlow, RMON, SNMPv1/v2c/v3, syslog
- Management: CLI (SSH/console), web GUI, dual image, NTP
- Power: internal AC PSU (overall PoE budget model-dependent); optional RPS (where supported)
- Form factor: 1U rack-mount; operating temperature: 0–45 °C
