HPE

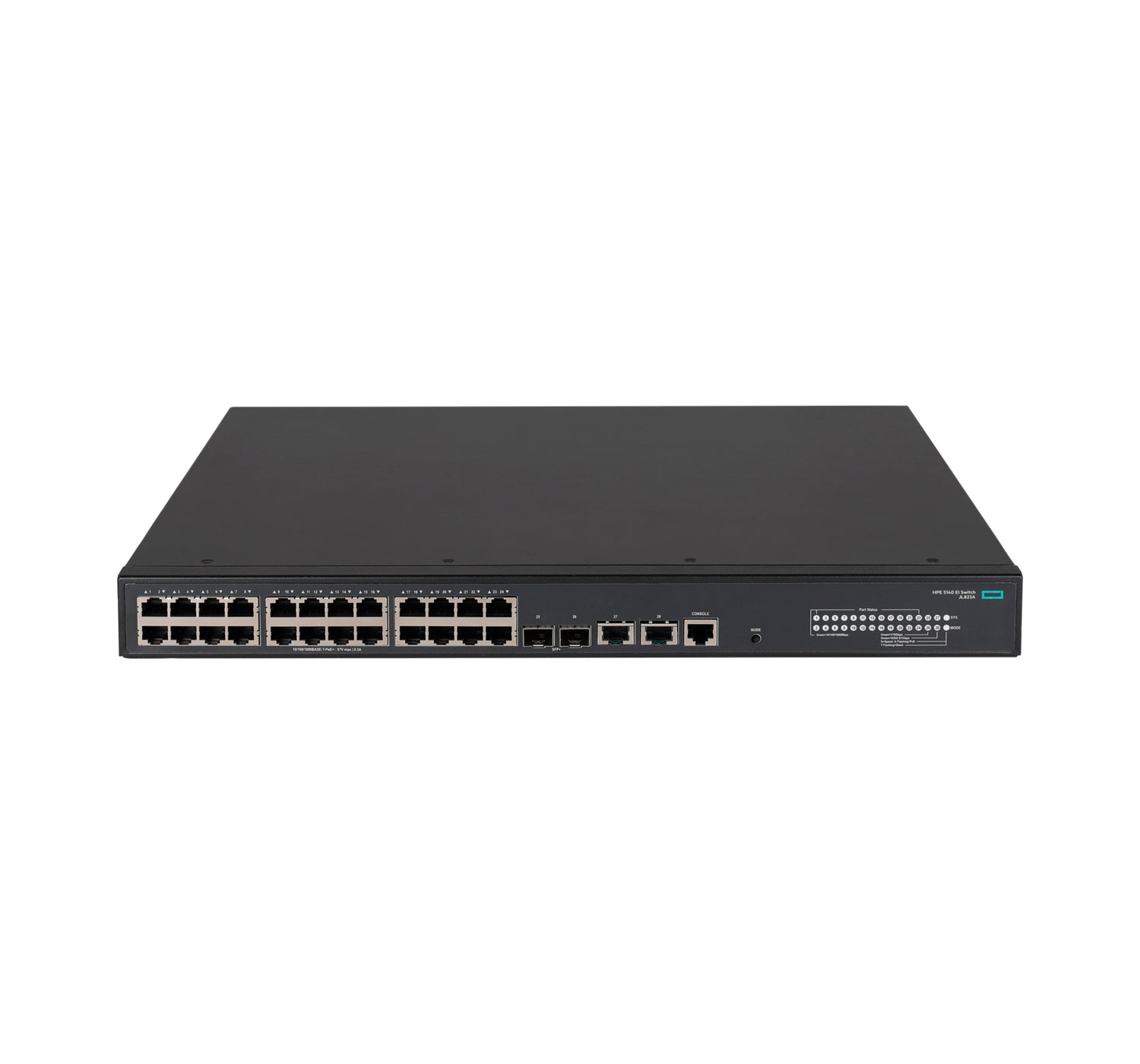

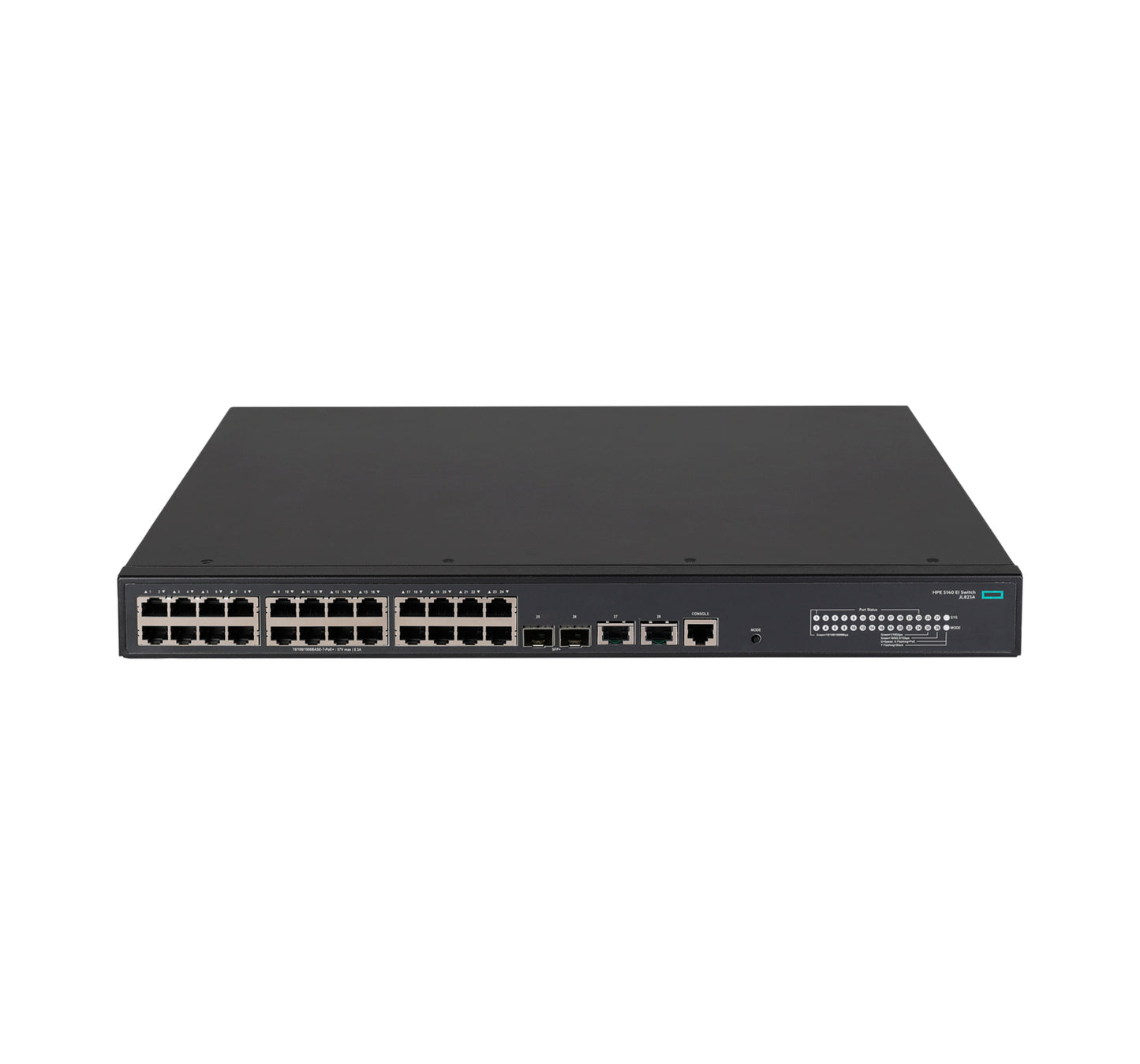

HPE JL823A#ABG | 24x 1G PoE+ | Uplinks: 2x 10G SFP+ + 2x 10GBASE-T | EI L3, IRF stacking, Comware

SKU:JL823A#ABG

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Access-layer L3 switch with 24x 10/100/1000 PoE+ ports and mixed 10GbE uplinks (2x SFP+ fiber + 2x 10GBASE-T copper). EI software delivers advanced Layer 2/3 features, robust QoS and security, and IRF stacking for simplified operations. Fan-cooled 1U design with web/CLI/SNMP management and IPv6 readiness.

Features

- Mixed 10G uplinks (fiber + copper) for flexible aggregation
- EI L3 feature set for advanced campus access deployments
- PoE+ across all access ports to power APs, phones, and IoT
- IRF stacking for single-pane management and fast failover
- Comprehensive security: 802.1X, DHCP snooping, and ACLs
- Rich QoS with hierarchical policies for voice/video prioritization
- Operational visibility via sFlow, RMON, and extensive logging
- Dual image and configuration options to simplify upgrades

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: How many 10G uplinks are available and in which form factors?
A: Four total 10G uplinks: 2x SFP+ for fiber and 2x 10GBASE-T for copper.

Q: Does it support PoE+ on all access ports?
A: Yes, all 24 access ports support IEEE 802.3af/at PoE+ with up to 30W per port (overall budget is model-dependent).

Q: Can this model stack with IRF?
A: Yes, it supports IRF multi-chassis stacking for simplified management and resiliency.

Q: What routing features are included with the EI software tier?
A: EI provides Layer 3 features like static routing, RIP, OSPF (area), ECMP, and VRRP/HSRP-like gateway redundancy.

Q: Is IPv6 supported?
A: Yes, it supports dual-stack IPv4/IPv6 for Layer 2 and Layer 3 features.

Q: Which transceivers are compatible with the SFP+ uplinks?
A: Standard 10G SFP+ optics such as SR, LR, LRM, and DAC/AOC cables are supported (match to your fiber type and reach).

Technical Specifications

- Access ports: 24x 10/100/1000 Mbps PoE+ (802.3af/at, up to 30W per port)
- Uplinks: 2x 10G SFP+ + 2x 10GBASE-T (RJ-45)
- Software tier: EI (Enhanced) feature set, Comware OS
- Layer 3: static routing, RIP/OSPF (area), ECMP
- Layer 2: 802.1Q VLANs, MSTP/RSTP, LACP
- High availability: IRF stacking (multi-chassis), RRPP
- Security: 802.1X, MAC/port security, DHCP snooping, IP source guard, ACLs
- QoS: DSCP/802.1p, policing, shaping, scheduling
- Monitoring: sFlow, RMON, SNMPv1/v2c/v3, syslog
- Management: CLI (console/SSH), web GUI, NTP, dual image
- Power: internal AC PSU (PoE power budget model-dependent); RPS support (where applicable)
- Form factor: 1U rack-mount; operating temperature: 0–45 °C
