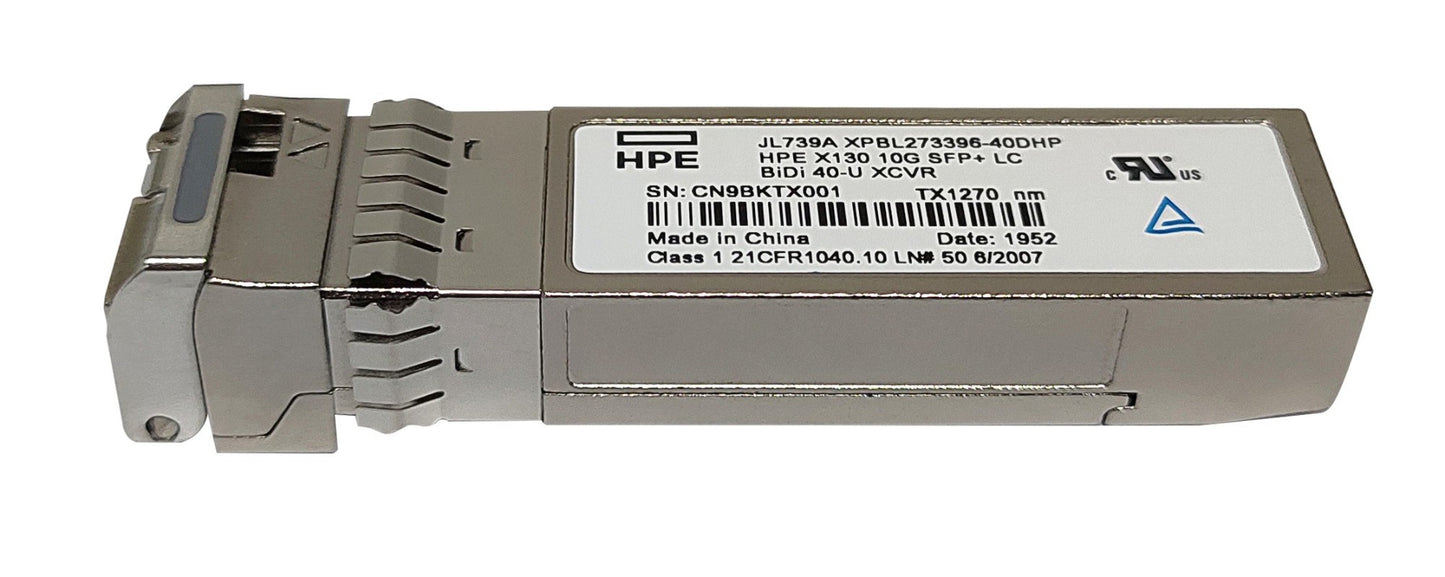

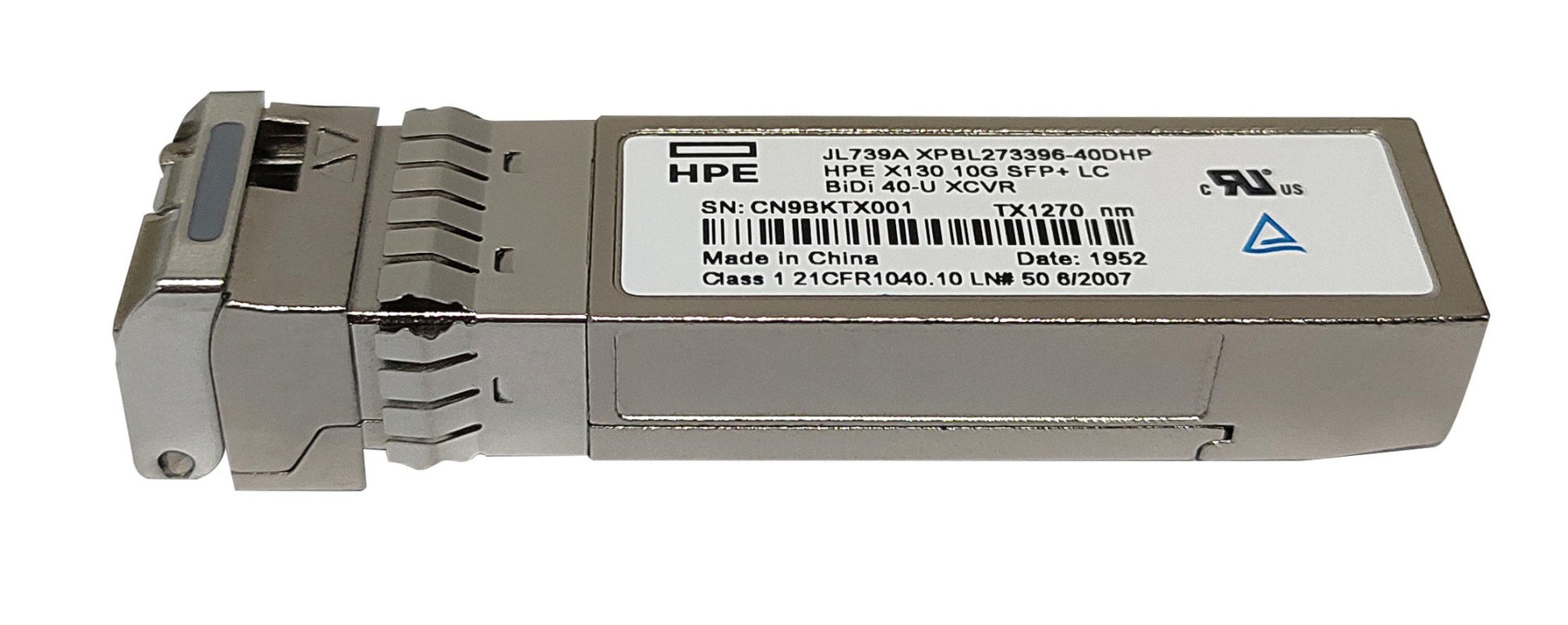

• HPE JL739A 10GbE SFP+ transceiver module with LC connector, 10GBASE-BX40
1 1

Aruba

Aruba JL739A | X130 10G SFP+ Transceiver, BiDi 40km Uplink, LC

JL739A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The X130 10G SFP+ BiDi transceiver is a 10 Gb/s optical module that carries traffic in both directions over a single strand of single-mode fibre with an LC connector. This is the uplink-side module of a BiDi pair, built for campus and metro 10G links where fibre strand count needs to be kept to a minimum.

It delivers 10 Gigabit Ethernet over 10GBase-BiDi with a reach of 40 km, in a hot-pluggable SFP+ form factor with a single LC port. Because it transmits and receives on one fibre, it halves the fibre required compared with a duplex pair, which suits building-to-building or floor-to-core uplinks where fibre is limited.

This uplink module must be paired with the matching 40 km downlink BiDi module at the far end of the link. Check the HPE datasheet or QuickSpecs for the full list of supported switches, including the HPE FlexFabric 12900 Switch Series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Bidirectional transmission over a single fibre strand
- Halves fibre requirements compared with a duplex pair
- Hot-pluggable SFP+ form factor
- Single LC connector for simple cabling
- Uplink-side module for a matched 40 km BiDi pair
- Designed and tested by HPE for critical network deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: SFP+ (plug-in module)
- Connectivity cabling type: Ethernet 10GBase-BiDi
- Data transfer rate: 10 Gbps
- Protocol: 10 Gigabit Ethernet
- Ports/connectors: 1 x LC
- Media type: Optical fibre (single-mode)
- Reach: 40 km
- Variant: BiDi uplink side
- Colour: Silver
- Weight: approx. 0.05 kg

FAQs

Q: Does this module work on its own?
A: No. It is the uplink-side module of a BiDi pair and must be paired with the matching 40 km downlink BiDi module at the other end of the link.

Q: How many fibre strands does it need?
A: One. It sends and receives over a single strand of single-mode fibre with an LC connector.

Q: Which switches is it compatible with?
A: It is listed for the HPE FlexFabric 12900 Switch Series. Check the HPE datasheet or QuickSpecs for the full list of supported switches.

Q: What is the maximum reach?
A: This uplink variant supports a reach of up to 40 km over single-mode fibre.

Q: Can it be installed while the switch is running?
A: Yes. It is a hot-pluggable SFP+ module.
