HPE

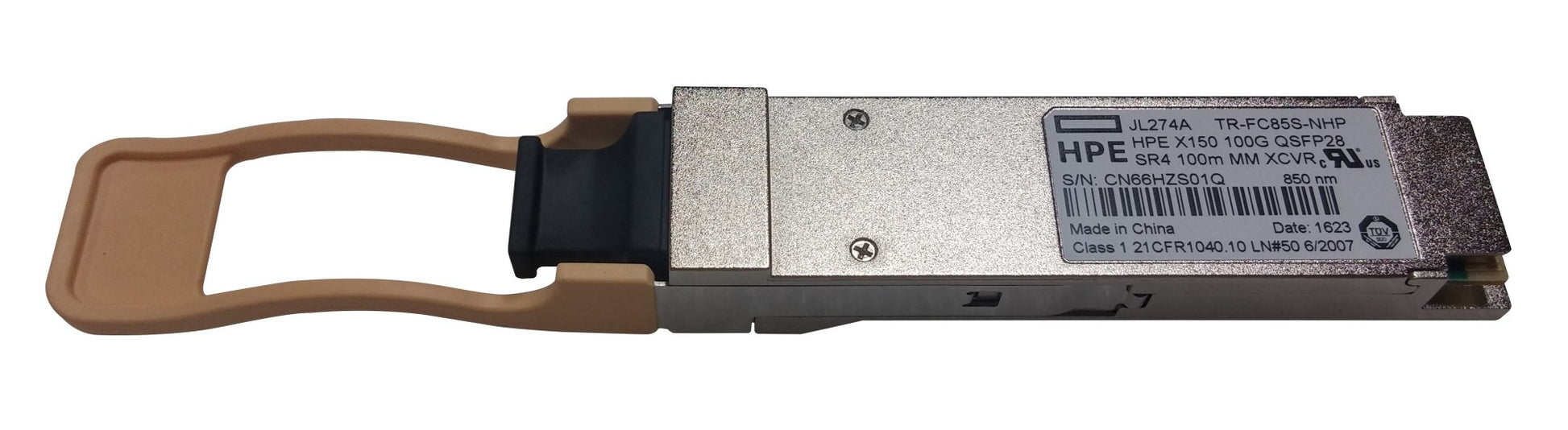

HPE JL274A | 100G QSFP28 transceiver | 100GBASE-SR4 | 850nm | 100m OM4 | MPO-12 (MTP)

SKU:JL274A

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

High-density 100G QSFP28 SR4 optical module for short‑reach multi‑mode fiber links in campus, data center leaf–spine, and aggregation fabrics. Delivers up to 100 m on OM4 (70 m on OM3) via MTP/MPO‑12 connectors with low power and consistent performance. Supports 1x100G or 4x25G breakout on capable platforms.

Features

- High-density 100G over multimode fiber with MPO-12
- Energy-efficient QSFP28 form factor
- Flexible 1x100G or 4x25G deployment options
- Interoperable with IEEE 100GBASE-SR4 equipment
- Fast, tool-less installation and quick turn-up

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What fiber and connectors are required?
A: Use OM4 (preferred) or OM3 multimode fiber with an MTP/MPO-12 trunk. The module has an MPO-12 female interface.

Q: What is the maximum reach?
A: Up to 100 m on OM4 or 70 m on OM3 under IEEE 100GBASE-SR4 specifications.

Q: Can I break out to 4x25G?
A: Yes, many platforms support 4x25G breakout with an MPO-to-4xLC harness and appropriate switch configuration.

Q: Does it support digital diagnostics?
A: Yes, DOM/DDM is supported for real-time monitoring.

Q: Is FEC required?
A: Some hosts recommend or enable RS-FEC to ensure error-free operation at maximum distances.

Technical Specifications

- Type: QSFP28 optical transceiver
- Data rate: 100 GbE (4x25G NRZ lanes)
- Standard: 100GBASE-SR4; IEEE 802.3bm
- Wavelength: 850 nm (VCSEL)
- Reach: up to 100 m (OM4) / 70 m (OM3)
- Connector: MTP/MPO-12 female
- Fiber: MMF (OM3/OM4)
- DDM/DOM: Supported
- FEC: RS-FEC recommended for maximum reach per host capabilities
- Operating temperature: 0 to 70 °C (typical)
- Compliance: MSA-compliant; RoHS
- Breakout: 1x100G or 4x25G on supported switches
