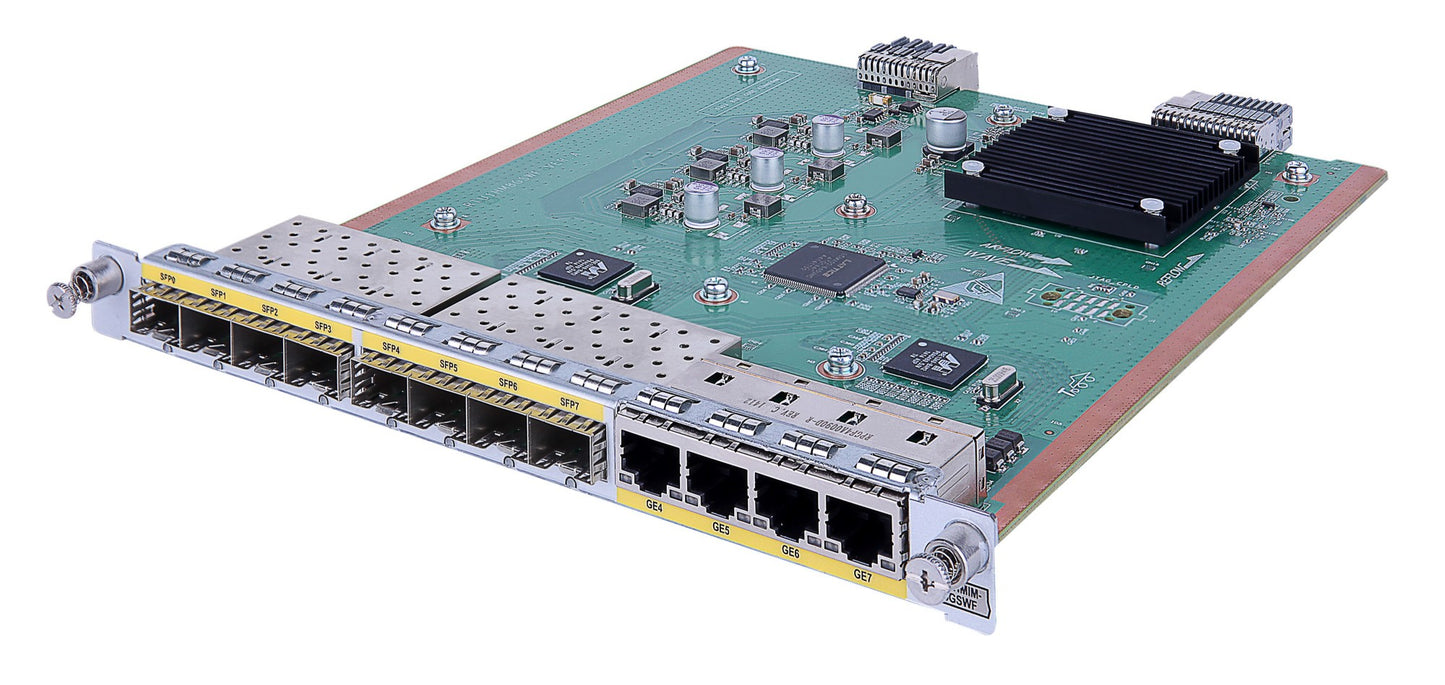

• HPE JH238A MSR HMIM L2/L3 module with 8 SFP and 4 combo ports
1 1

HPE

HPE JH238A | MSR HMIM Module, 8x SFP + 4x 1000BASE-T Combo, L2/L3

JH238A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork MSR HMIM module is a half-height High-performance Multifunction Interface Module for HPE MSR routers. It adds Layer 2/3 switched Ethernet to branch and enterprise WAN routers that need extra Gigabit ports with a mix of fibre and copper connectivity.

The module provides 8 SFP ports supporting 100BASE-FX or 1000BASE-X optics, plus 4 combo 1000BASE-T RJ-45 ports, giving a choice of SFP fibre or copper on the combo ports. It supports between 0 and 8 SFP transceivers, so optics can be fitted to match the links you need. The half-height form factor occupies either one half-height or one full-height HMIM slot. It has no separate power supply and is powered from the host MSR router chassis.

It works with the HPE FlexNetwork MSR1002-4, MSR1003-8, MSR3012, MSR3024, MSR3044, MSR4060 and MSR4080 routers. SFP transceivers are required for the fibre ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds Layer 2/3 Gigabit switching and SFP fibre connectivity to MSR routers
- Half-height HMIM form factor fits either half-height or full-height slots
- Combo ports give a choice of SFP fibre or RJ-45 copper connectivity
- Supports 100BASE-FX and 1000BASE-X SFP optics
- Powered from the host router chassis, no separate power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- I/O ports: 8 x 100BASE-FX/1000BASE-X SFP, 4 x 1000BASE-T (RJ-45) combo
- Switching: Layer 2/3
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Data rates: 100 Mbit/s, 1000 Mbit/s
- Copper cabling technology: 100BASE-FX, 1000BASE-T
- Form factor: Half-height HMIM, occupies 1 half-height or 1 full-height slot
- SFP modules supported: 0 to 8
- Dimensions (W x D x H): 325 x 415 x 91 mm
- Dimensions (imperial): 12.8 x 16.3 x 3.58 in
- Weight: 700 g
- Power: supplied by the host MSR router chassis
- HS code: 85176990

FAQs

Q: Which routers is this module compatible with?
A: It works with the HPE FlexNetwork MSR1002-4, MSR1003-8, MSR3012, MSR3024, MSR3044, MSR4060 and MSR4080 routers.

Q: Does the module need its own power supply?
A: No. It is powered from the host MSR router chassis.

Q: Do I need to buy SFP transceivers separately?
A: SFP transceivers are required for the fibre ports. The module supports between 0 and 8 SFPs, supporting 100BASE-FX and 1000BASE-X optics.

Q: What do the combo ports do?
A: The 4 combo ports give a choice of SFP fibre or 1000BASE-T RJ-45 copper connectivity.

Q: Which slot does it occupy in the router?
A: It is a half-height HMIM and occupies either one half-height or one full-height HMIM slot.
