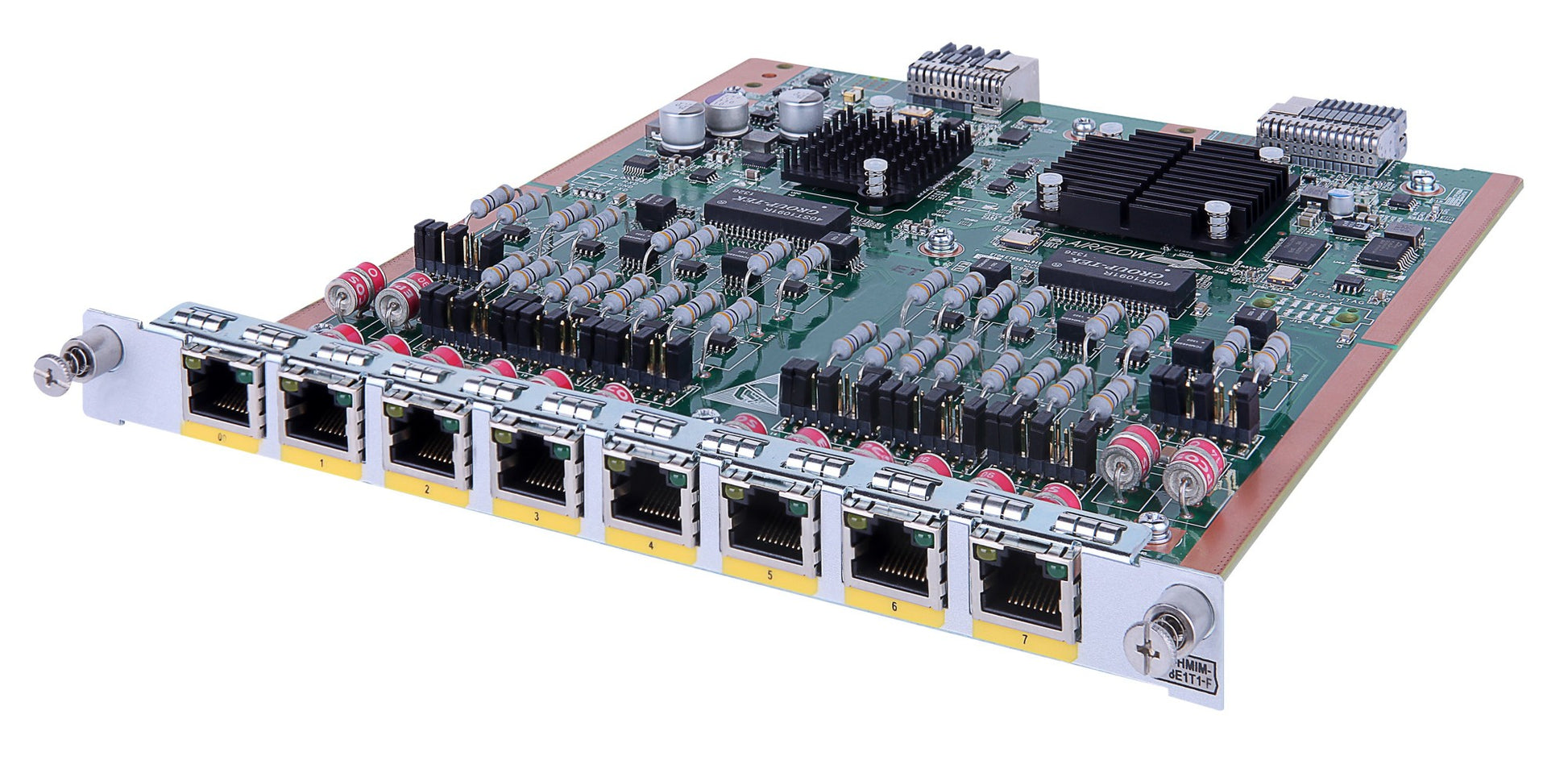

HPE JH172A | MSR4000 8-Port E1/T1 HMIM Router Module, Fractional

SKU:JH172A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The JH172A is a half-height interface module (HMIM) for the MSR4000 series of Comware routers. It adds eight E1/T1 WAN ports to a branch or enterprise edge router, making it suited to sites that terminate carrier E1 or T1 circuits and run voice or PBX gateway traffic alongside data.

Each of the eight RJ-48C ports supports E1, fractional E1, T1 and fractional T1, with channelized Nx64K operation for flexible carrier circuits. Line rates reach 2.048 Mbps on E1 and 1.544 Mbps on T1 per port. This is the 8-port E1/fractional E1/T1/fractional T1 variant, so it is not the PRI-capable sibling model. The module occupies one half-height or one full-height slot.

The JH172A installs in the MSR4060 (JG403A) and MSR4080 (JG402A) chassis, up to 6 and 8 modules respectively. It draws power from the chassis backplane. Supported cabling includes the JD518A T1 cable, the JH294A E1 75 ohm BNC cable and the JC156A E1 120 ohm cable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds high-density E1/T1 WAN connectivity to MSR4000 routers
- Fractional E1/T1 support for flexible channelized carrier circuits
- Data and voice ready for branch voice gateway deployments
- MSR4000 platform supports up to 64 E1 ports per chassis
- Half-height design allows dense mixing of Gigabit, serial and WAN modules in one chassis
- Managed through HPE Comware using CLI, SNMP and IMC

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 8 x E1 / Fractional E1 / T1 / Fractional T1
- Port connector: RJ-48C
- WAN mode: Channelized Nx64K, data and voice ready
- Module type: HMIM, half height
- Slot usage: 1 half-height or 1 full-height slot
- Data rate: up to 2.048 Mbps (E1), up to 1.544 Mbps (T1) per port
- Standards: G.703 and G.704
- Cables per module: 0 to 8 E1/T1 cables
- Supported T1 cable: JD518A
- Supported E1 cable (RJ45 to 2xBNC 75 ohm, 3m): JH294A
- Supported E1 cable (RJ45 120 ohm, 2m): JC156A
- Max modules per MSR4060 (JG403A): 6
- Max modules per MSR4080 (JG402A): 8
- Power: supplied by the router chassis backplane
- Chassis operating temperature: 0 to 45 C
- Chassis operating humidity: 5% to 90%, noncondensing
- Chassis storage temperature: -40 to 70 C
- Chassis telecom approvals: FCC part 68, CS-03
- Weight: 0.75 kg

FAQs

Q: Which routers does the JH172A install in?
A: It installs in the HPE MSR4060 (JG403A) and MSR4080 (JG402A) router chassis. The MSR4060 takes up to 6 modules and the MSR4080 up to 8.

Q: Does the module need a separate licence?
A: No separate licence is identified for the module. It is supported by the HPE Comware v7 software that runs on the MSR4000 chassis.

Q: How is the module powered?
A: It draws power from the router chassis backplane and has no separate power supply. The chassis needs 1 to 4 power supplies, in 100-240 VAC or -36 to -75 VDC.

Q: Which cables are used with the JH172A?
A: Use the JD518A for T1 links, the JH294A (RJ45 to 2xBNC, 75 ohm, 3m) or the JC156A (RJ45, 120 ohm, 2m) for E1 links.

Q: How does the JH172A differ from the JH169A?
A: The JH172A supports E1, fractional E1, T1 and fractional T1. The JH169A is the sibling with E1, CE1, T1, CT1 and PRI support.
