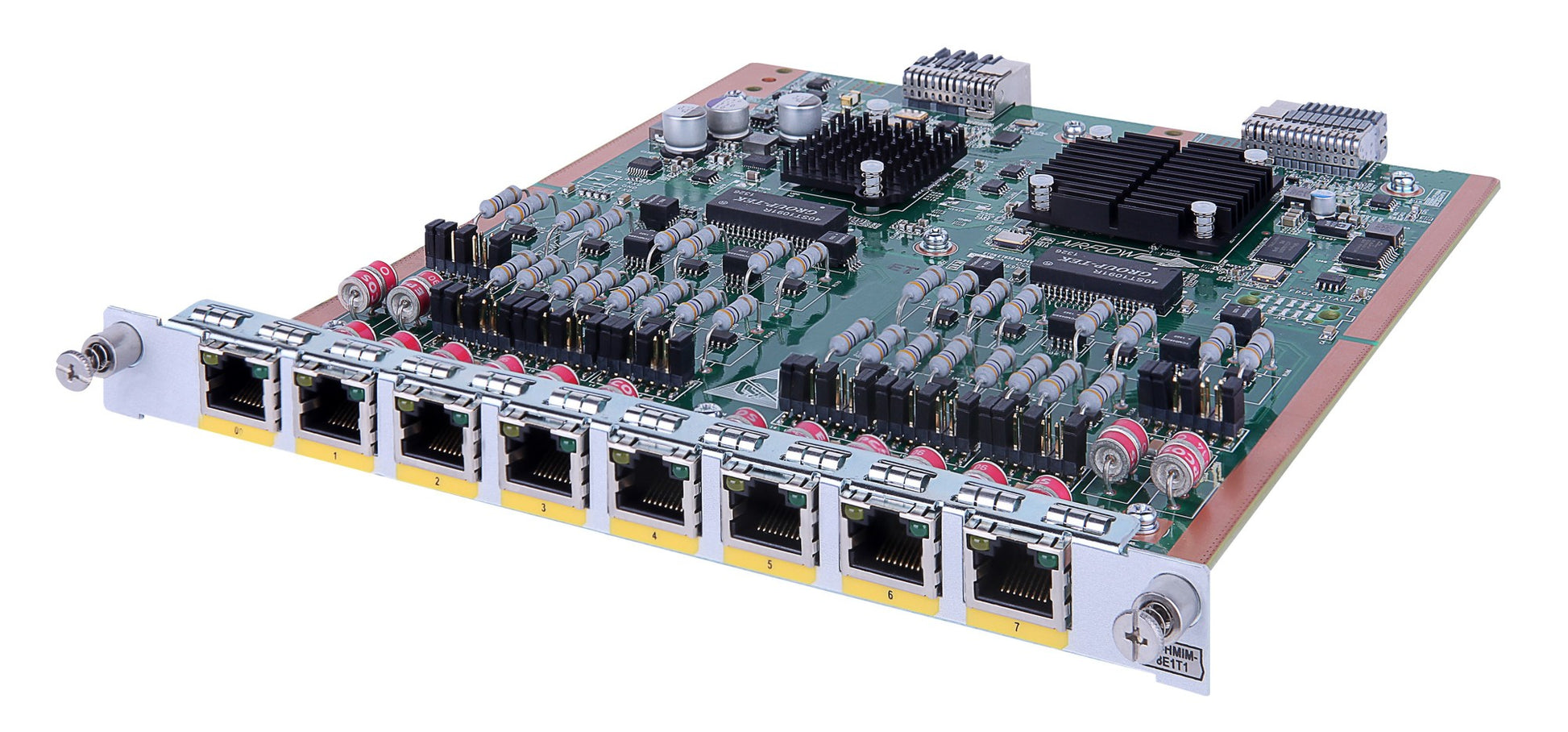

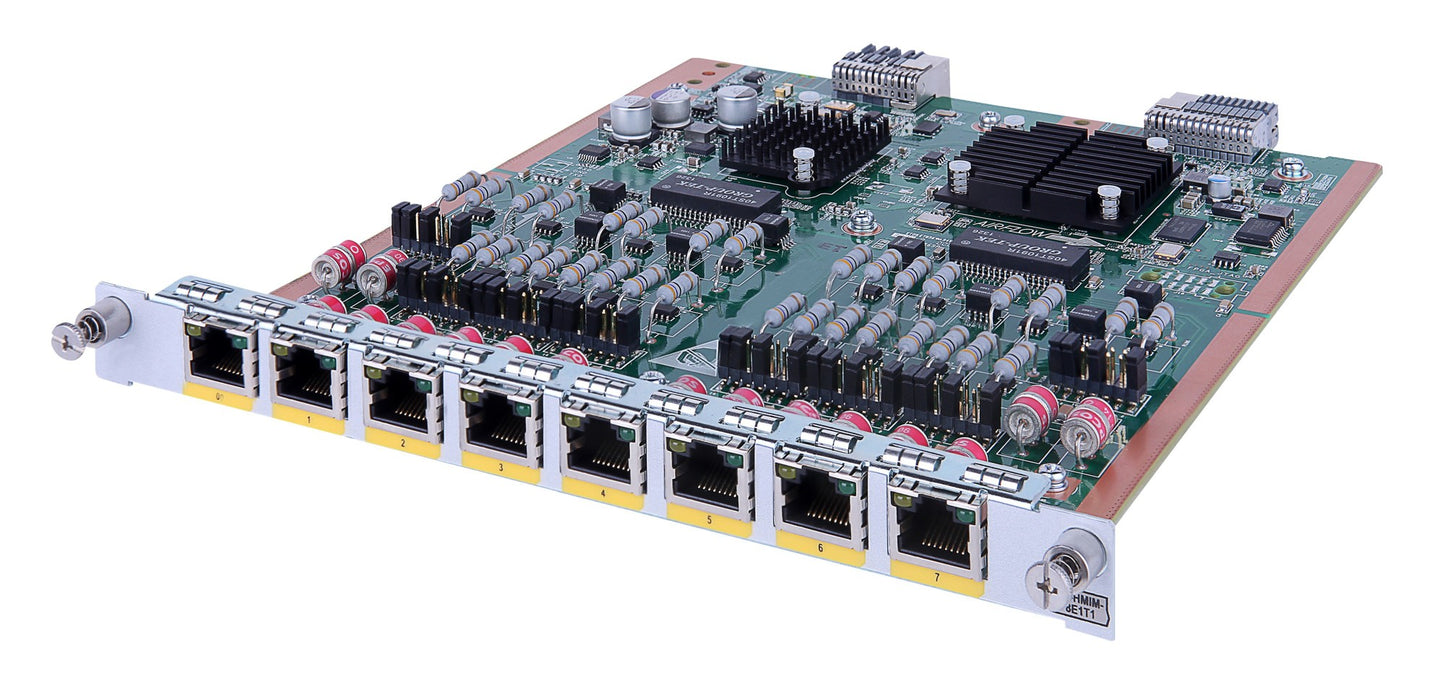

HPE JH169A | MSR HMIM 8-Port E1/T1 PRI Router Module, RJ-48C
SKU:JH169A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The HPE JH169A is a half-height high-performance multifunction interface module (HMIM) for the HPE MSR router family. It adds TDM voice and WAN connectivity to branch and WAN edge routers that need E1 or T1 PRI trunks, whether as a voice gateway or for channelized WAN links.
The module provides 8 x E1/CE1/T1/CT1/PRI ports over twisted pair media with RJ-48C connectors. It supports E1, channelized E1, T1, channelized T1, G.703 and G.704. The half-height form factor occupies one half-height or one full-height slot, so several modules can be fitted in an MSR4000 chassis, aggregating up to 64 E1 ports per chassis.
It is listed for the HPE MSR4060 (JG403A) and MSR4080 (JG402A), and in the MSR3000 QuickSpecs. It is powered from the host router chassis and operates under the host router's Comware 7 software, with no separate licence stated for the module itself. Up to 8 E1/T1 cables can be used per module, including JC156A, JH294A, JD175A, JD511A and JD518A (T1).
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Adds high-density TDM E1/T1 connectivity with PRI support to MSR routers
- Channelized E1 and T1 for WAN and voice deployments
- SIP and TDM voice gateway use cases
- Half-height design allows several modules in an MSR4000 chassis
- Operates under the host router's Comware 7 software
- Supports G.703 and G.704 interface standards
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Part number: JH169A
- Product type: Router expansion module (HMIM)
- Total ports: 8
- Port details: 8 x E1/CE1/T1/CT1/PRI
- Network technology: E1/CE1/T1/CT1/PRI
- Supported standards: E1, channelized E1, T1, channelized T1, G.703, G.704
- Media type: Twisted pair
- Connector: RJ-48C
- Form factor: Half-height module, occupies 1 half-height or 1 full-height slot
- Cables: 0 to 8 E1/T1 cables per module
- Power: Supplied from the host router chassis backplane
FAQs
Q: Which HPE routers is the JH169A designed for?
A: It is listed for the HPE MSR4060 (JG403A) and MSR4080 (JG402A) in the MSR4000 QuickSpecs, and in the MSR3000 QuickSpecs.
Q: Does the module need its own licence?
A: No separate licence for the module is stated. It operates under the host MSR router's Comware 7 software.
Q: How is the module powered?
A: It draws power from the host MSR router chassis backplane, so no separate power supply is needed.
Q: Which cables can be used with the E1/T1 ports?
A: Compatible cables include JC156A (E1 RJ45 120 ohm), JH294A (E1 RJ45 to 2xBNC 75 ohm), JD175A, JD511A and JD518A (T1). Up to 8 cables can be used per module.
Q: How many slots does the module occupy?
A: It is a half-height HMIM and takes up either one half-height or one full-height slot.
