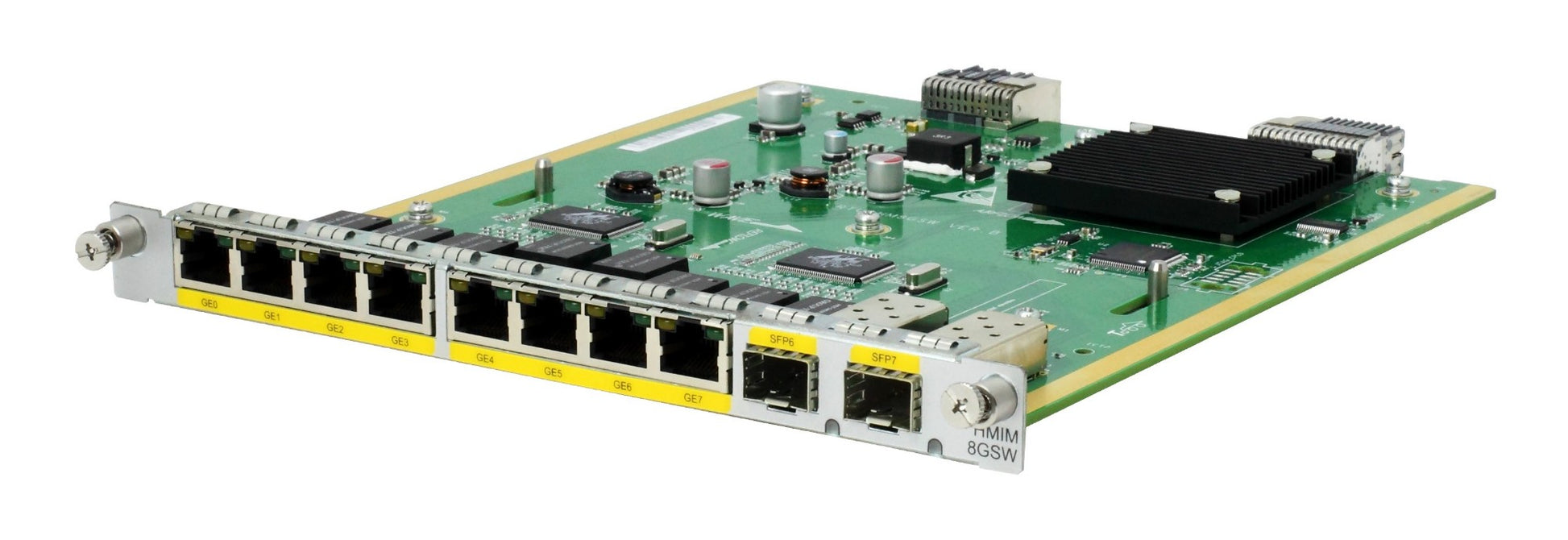

• HPE JG741A MSR Router HMIM with 8x 1G RJ45 ports
1 1

HPE

HPE JG741A | MSR 8-Port 10/100/1000 + 2-Port SFP Combo HMIM Module

JG741A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The JG741A is a half-height High-performance Multifunction Interface Module (HMIM) from the HPE MSR router family. It adds an integrated 8-port Gigabit Ethernet switching block to a supported modular MSR router, making it a fit for branch and enterprise edge sites that want LAN switching built into the router rather than a separate switch.

The module provides 8 x 10/100/1000BASE-T RJ-45 switched ports plus 2 x 1000BASE-X combo ports, so each uplink can be run over copper or over fibre with a standard SFP transceiver (0 to 2 supported). It occupies one half-height or one full-height slot, and on the host Comware platform it supports IEEE 802.1Q VLANs, up to 4,094 VLANs, and sFlow traffic sampling.

It is listed for the HPE MSR3000 series (MSR3012, MSR3024, MSR3044, MSR3064) and the MSR4000 series (MSR4060, MSR4080), with up to 2 modules per chassis. No separate licence is identified for the module, and it is powered from the host router chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds 8 Gigabit switched LAN ports to a modular MSR router through a single HMIM slot
- Two combo ports allow copper RJ-45 or fibre SFP uplinks
- Switched ports can be changed to routed ports by command on the host MSR router
- Supports IEEE 802.1Q VLANs on the host Comware platform
- Supports sFlow traffic sampling
- Accepts standard 1000BASE-X SFP transceivers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: Switching module (HMIM)
- Form factor: Half-height HMIM
- Ethernet LAN ports: 8 x 10/100/1000BASE-T RJ-45
- Fibre ports: 2 x 1000BASE-X combo (SFP)
- Ethernet data rates: 10/100/1000 Mbit/s
- SFP transceivers supported: 0 to 2
- Slot requirement: 1 half-height or 1 full-height slot
- VLAN support: up to 4,094 VLANs, IEEE 802.1Q
- Traffic sampling: sFlow (on host platform)
- Host platforms: HPE MSR3000 and MSR4000 series
- Maximum per chassis: 2
- Power: supplied from host router chassis
- Package dimensions: 32.51 x 41.4 x 9.14 cm
- Package weight: 1.09 kg

FAQs

Q: Which routers is the JG741A compatible with?
A: It is listed for the HPE MSR3000 series (MSR3012, MSR3024, MSR3044, MSR3064) and the MSR4000 series (MSR4060, MSR4080 chassis), with up to 2 modules per chassis.

Q: Does it need a separate licence?
A: No separate licence is identified for the module. Its features run under the host MSR router's Comware operating system.

Q: How is the module powered?
A: It draws power from the host router chassis backplane, so no separate power supply is required.

Q: What does the 2-port combo uplink mean?
A: Each of the two combo ports can be used as either a copper 10/100/1000BASE-T connection or a 1000BASE-X SFP fibre connection, giving flexible uplink options.

Q: Can the switched ports be used as routed ports?
A: Yes. On the host MSR router the switched ports can be changed to routed ports using a command.
