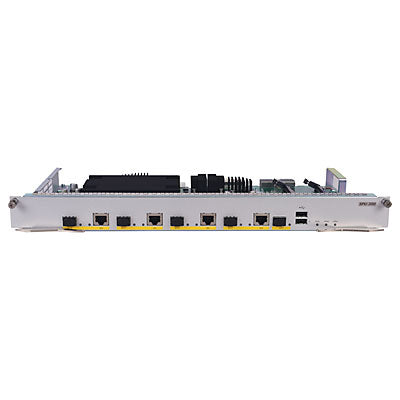

• HPE JG670A MSR4000 SPU-300 silver server rack with network ports and USB
1 1

HPE

HPE JG670A | MSR4000 SPU-300 Services Processor, 36 Mpps, 4GB DDR3

JG670A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE MSR4000 SPU-300 is a service processing unit for the MSR4060 and MSR4080 modular routers in the FlexNetwork MSR4000 range. It handles data forwarding, encryption and decryption, and packet analysis and filtering, and is the highest-performance SPU in the family. It suits branch, campus and WAN-edge deployments where a modular router needs high-throughput forwarding, VPN encryption and packet filtering.

The SPU-300 has a 32-core RISC processor running at 1 GHz with 4 GB of DDR3 SDRAM. Forwarding performance is 36 Mpps, compared with 20 Mpps for the SPU-200 and 10 Mpps for the SPU-100. NAT, QoS and ACL performance reaches 8 Gbps (IMIX), and the forwarding table holds 1,000,000 entries each for IPv4 and IPv6. Onboard connectivity is 4 x combo 1000M RJ45/SFP ports and 1 x 10GbE SFP+ port, with two VPM slots for voice processing modules.

It installs in the single SPU slot of the MSR4060 or MSR4080 chassis alongside MPU-100 main processing units (JG412A), and draws its power from the chassis. It accepts SFP and SFP+ transceivers as well as VPM voice modules such as the JG417A 128-channel voice processing module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dedicated service plane that offloads forwarding, encryption and decryption, and packet filtering from the main processing units
- Highest-performance SPU in the MSR4000 family at 36 Mpps
- Onboard 4 x combo GE and 1 x 10GbE SFP+ uplink
- Two VPM slots for voice processing modules
- Full software feature set supported
- Multi Gigabit Fabric in the chassis raises I/O module slot bandwidth from 100 Mb/s to 1000 Mb/s and uplink performance from 1 Gb/s to 10 Gb/s

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Service processing unit (SPU) module
- Processor: 32-core RISC at 1 GHz
- Memory: 4 GB DDR3 SDRAM (default and maximum)
- Fixed ports: 4 x combo 1000M RJ45/SFP
- 10GbE port: 1 x SFP+
- SFP transceivers supported: up to 4
- SFP+ transceivers supported: up to 1
- VPM module slots: 2
- Forwarding performance: 36 Mpps
- NAT + QoS + ACL performance (IMIX): 8 Gbps
- Forwarding table size: 1,000,000 IPv4 entries and 1,000,000 IPv6 entries
- Chassis SPU slots: 1
- Compatible chassis: MSR4060 (6 HMIM slots), MSR4080 (8 HMIM slots)
- Operating temperature (chassis): 0 to 45 C
- Relative humidity, non-condensing (chassis): 5% to 90%

FAQs

Q: Which chassis does the SPU-300 fit?
A: It installs in the SPU slot of the HPE MSR4060 and MSR4080 chassis. Each chassis has one SPU slot.

Q: How does the SPU-300 differ from the SPU-100 and SPU-200?
A: The SPU-300 is the highest-performance option at 36 Mpps forwarding and 8 Gbps NAT, QoS and ACL performance. The SPU-200 (JG414A) is rated at 20 Mpps and 3 Gbps, and the SPU-100 (JG413A) at 10 Mpps and 1 Gbps.

Q: Does it need its own power supply?
A: No. It draws power from the MSR4060 or MSR4080 chassis, which has 4 power supply slots.

Q: What can be fitted to the SPU-300 itself?
A: It takes SFP and SFP+ transceivers in its combo and 10GbE ports, and has two VPM slots for voice processing modules such as the JG417A 128-channel module.

Q: Can it run alongside the main processing unit?
A: Yes. It is installed alongside MPU-100 main processing units (JG412A) in the same chassis.
