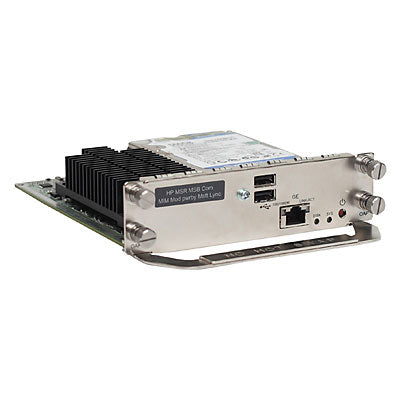

• HPE JG588A MSR MIM silver server motherboard with ports and heatsink
1 1

HPE

HPE JG588A | MSR30 Survivable Branch MIM, Medium, 4GB, 1000 Users

JG588A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE MSR Medium Survivable Branch Communication module is a plug-in Multifunction Interface Module (MIM) for the MSR30 router family. It hosts a Microsoft Lync Survivable Branch Appliance, keeping voice, IM, video and desktop sharing running at a branch site when the WAN link is unavailable. It suits medium branch offices standardised on Microsoft Lync or Skype for Business that need local call control and continued unified communications service during outages.

This medium-scale model is built around a 1.66 GHz Intel i7-620UE dual-core processor with 4 GB DRAM and a 500 GB hard drive, and supports up to 1000 users. It provides one 10/100/1000BASE-T RJ-45 network interface and two USB ports, with configuration through a command-line menu and out-of-band management over the RJ-45 Ethernet port. The module is qualified by Microsoft as a Lync Survivable Branch Appliance and requires appropriate Microsoft Lync or Skype for Business server and client licensing.

The module draws power from the host MSR router through the MIM slot, so it has no separate power supply. It is supported in selected MSR30-20, MSR30-40 and MSR30-60 models, with up to two modules per router on the MSR30-20 and MSR30-40.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Keeps voice, IM, video and desktop sharing running at the branch when the WAN is down
- Hosts a Microsoft Lync survivable branch application combined with HPE software
- Intel i7 dual-core architecture with 4 GB memory for medium-scale branch deployments
- Integrates with MSR routing and voice features
- Qualified by Microsoft as a Lync Survivable Branch Appliance (HP MSR OAP SBA 1.0.2217.0 and 2.0)
- Supports up to 1000 users per module
- Dedicated Gigabit RJ-45 interface for out-of-band management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: JG588A, Medium Survivable Branch MIM module
- Form factor: Plug-in MIM module, 1U height
- Processor: 1.66 GHz Intel i7-620UE, dual-core
- Memory: 4 GB DRAM
- Hard drive: 500 GB
- User capacity: up to 1000 users
- Network interface: 1 x 10/100/1000BASE-T RJ-45
- USB ports: 2
- Dimensions (W x D x H): 15 x 21.07 x 4 cm (5.91 x 8.3 x 1.57 in)
- Operating temperature: 0 to 45 C (32 to 113 F)
- Operating relative humidity: 5% to 90% at 45 C, noncondensing
- Storage relative humidity: 5% to 90% at 70 C, noncondensing
- Altitude: up to 5 km (16,404 ft)
- Management: command-line interface configuration menu, out-of-band management via RJ-45 Ethernet
- Power: supplied by the host MSR router through the MIM slot
- Chassis note: if installed on the right side of the chassis, the chassis operating temperature specification is 45 C

FAQs

Q: Does this module need a licence?
A: Yes. It hosts the Microsoft Lync Survivable Branch Appliance software, so appropriate Microsoft Lync or Skype for Business server and client licensing is required. Refer to HPE and Microsoft documentation for the exact licence tier.

Q: Which routers is the JG588A supported in?
A: It is supported in selected MSR30 routers, including the MSR30-20 (JF284A), MSR30-20 TAA (JG729A), MSR30-20 DC (JF235A), MSR30-20 TAA DC (JG728A), MSR30-40 (JF229A), MSR30-40 PoE (JF803A), MSR30-40 DC (JF287A), MSR30-60 PoE (JF804A) and MSR30-60 DC (JF801A). Up to two modules can be fitted in the MSR30-20 and MSR30-40.

Q: Does it need its own power supply?
A: No. The module is powered from the host MSR router chassis through the MIM slot, so it has no separate power supply.

Q: How does it differ from the other survivable branch modules?
A: The JG588A is the Medium model in MIM form, with 4 GB RAM and support for up to 1000 users. The JG587A is the Small MIM model and the JG589A is the Large model in FIC form.

Q: Can it be used as a general-purpose application server?
A: No. It is intended for use as a Microsoft Lync Survivable Branch Module only and is not recommended for a general application environment.
