HPE JG442A | FlexNetwork MSR 4-Port Sync/Async Serial HMIM Module

JG442A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

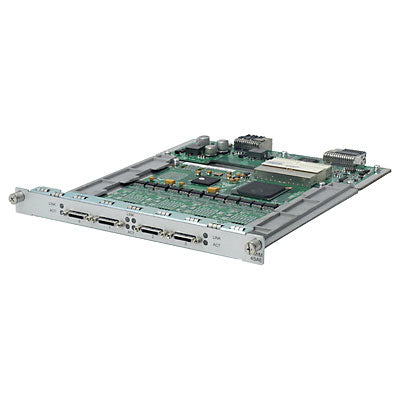

The HPE FlexNetwork MSR 4-port Enhanced Sync/Async Serial HMIM module adds four enhanced synchronous and asynchronous serial WAN ports to compatible HPE MSR routers. It is aimed at branch and WAN edge deployments that still depend on legacy serial connectivity, including WAN aggregation, serial protocol transport, console server and dial access server applications.

The module uses the half-height HMIM form factor and occupies one half-height or one full-height HMIM slot in the host router. It provides four serial ports, with up to four serial port cables supported per module, one for each port. Supported cables cover V.24, V.35, RS-449 and RS-530 in both DTE and DCE variants. It draws power from the host router chassis, so no separate power supply is needed.

This module installs in HPE MSR4000 series routers, including the MSR4060 (JG403A) and MSR4080 (JG402A) chassis, and is also compatible with MSR3000 series routers via their HMIM slots. The 4-port JG442A is the smaller sibling of the 8-port JG443A, suited to sites that need fewer serial links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enhanced high-speed synchronous and asynchronous serial interface
- Supports WAN aggregation over serial links
- Transports traditional serial protocols
- Suitable for console server and dial access server applications
- Half-height design for high-density router chassis configurations
- Works with V.24, V.35, RS-449 and RS-530 serial cables

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product number: JG442A
- Device type: Router expansion module (HMIM)
- Ports: 4 x enhanced synchronous/asynchronous serial
- Form factor: Half-height HMIM
- Slot usage: 1 half-height or 1 full-height HMIM slot
- Maximum serial port cables per module: 4
- Supported cable types: V.24, V.35, RS-449, RS-530 (DTE and DCE)
- Compatible cables: JD519A, JD521A, JD523A, JD525A, JF825A, JF826A, JF827A, JF828A
- Compatible chassis: MSR4080 (JG402A), MSR4060 (JG403A)
- Compatible series: HPE MSR3000 and MSR4000 routers
- Power: Supplied by the host router chassis

FAQs

Q: Which routers is this module compatible with?
A: It installs in HMIM slots on HPE MSR4000 series routers, including the MSR4060 (JG403A) and MSR4080 (JG402A), and is compatible with MSR3000 series routers.

Q: Which serial cables can I use with it?
A: It supports V.24, V.35, RS-449 and RS-530 cables in DTE and DCE variants. Part numbers are JD519A, JD521A, JD523A, JD525A, JF825A, JF826A, JF827A and JF828A.

Q: How many serial cables can be connected?
A: Up to four serial port cables, one for each of the four serial ports on the module.

Q: Does the module need its own power supply?
A: No. It is powered from the host router chassis.

Q: How does JG442A differ from JG443A?
A: JG442A provides four enhanced sync/async serial ports, while JG443A is the 8-port version of the same module.
