HPE JG426A | FlexNetwork MSR 24-Port Gigabit Layer 2 Switch Module

SKU:JG426A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

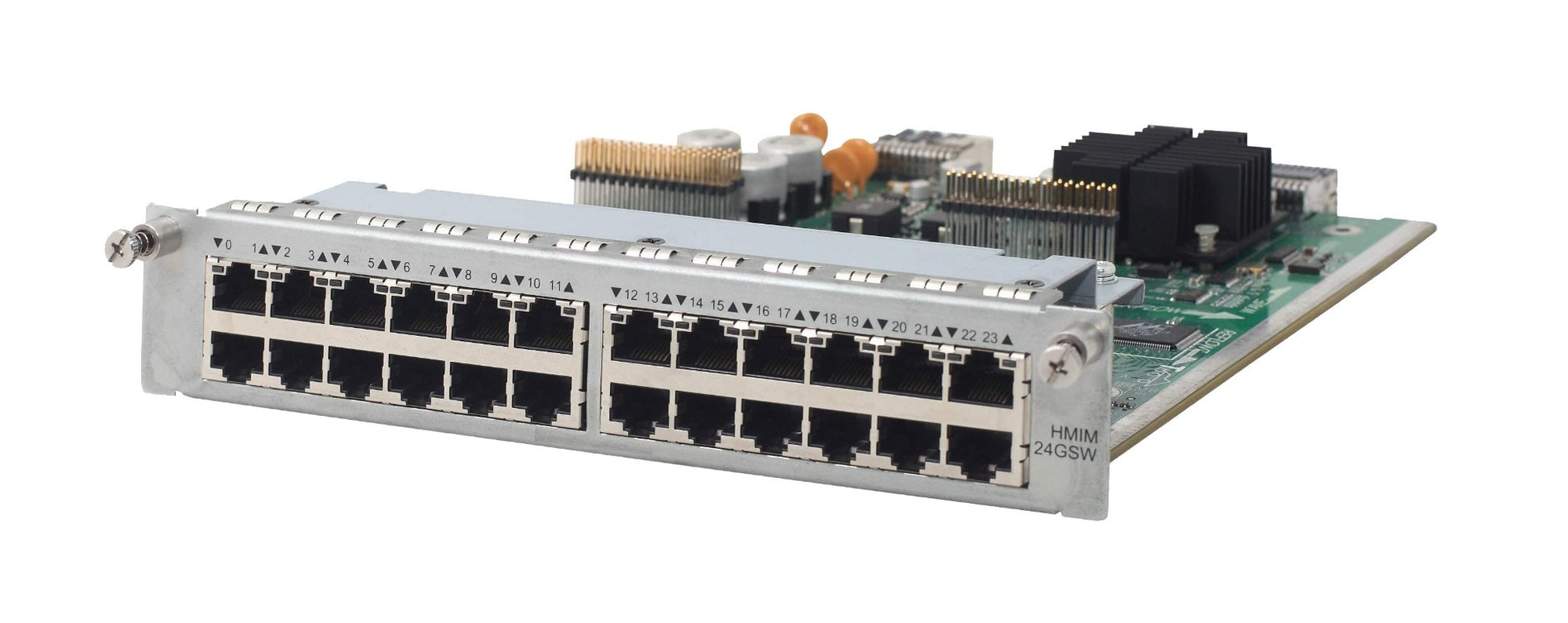

The JG426A is a Layer 2 HMIM (High-performance Multifunction Interface Module) from the HPE FlexNetwork MSR Series. It fits the modular slot of select MSR routers and adds LAN access switching directly into the router chassis, which suits branch and enterprise-edge sites that want to reduce the need for a separate switch.

The module provides 24 RJ-45 10/100/1000Base-T ports over twisted pair copper, giving Gigabit Ethernet port density for workstations, printers, access points and other wired endpoints. It is a non-PoE design, so it does not supply power to connected devices. Switching is Layer 2, and the module draws its operating power from the host MSR router chassis.

The module is installed in a modular HMIM slot rather than mounted on its own. It is intended for select HPE MSR Series routers, so confirm that your router model has a suitable HMIM slot before ordering.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 24-port Gigabit Layer 2 switching for MSR routers
- Integrates LAN switching into the router chassis
- Reduces the need for a separate access switch at branch sites
- RJ-45 10/100/1000Base-T ports with auto-negotiating copper connectivity
- Modular HMIM form factor for select MSR Series routers
- Non-PoE design for standard wired endpoints

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Product code: JG426A
- Type: HMIM (High-performance Multifunction Interface Module)
- Ports: 24 x RJ-45 10/100/1000Base-T
- Media type: Twisted pair copper
- Technology: Gigabit Ethernet
- Switching: Layer 2
- PoE: Not supported (non-PoE)
- Mounting: Modular slot in select HPE MSR Series routers
- Power: Drawn from the host MSR router chassis
- Weight: 1.05 kg
- Dimensions: 21 x 23.99 x 4.01 cm

FAQs

Q: Does this module provide PoE?
A: No. The JG426A is a non-PoE module, so it does not supply power to connected devices. Powered devices need a separate PoE source or power adapter.

Q: Where is the module installed?
A: It fits a modular HMIM slot in select HPE MSR Series routers. Check that your router model has a compatible HMIM slot before ordering.

Q: What is its power source?
A: The module draws its operating power from the host MSR router chassis, so it does not need its own power connection.

Q: What switching layer does it support?
A: It provides Layer 2 switching across its 24 Gigabit Ethernet ports.

Q: How does it differ from other MSR switch modules?
A: This SKU is the 24-port Gigabit, Layer 2, non-PoE variant. Other modules in the family may use different port counts or add PoE.
