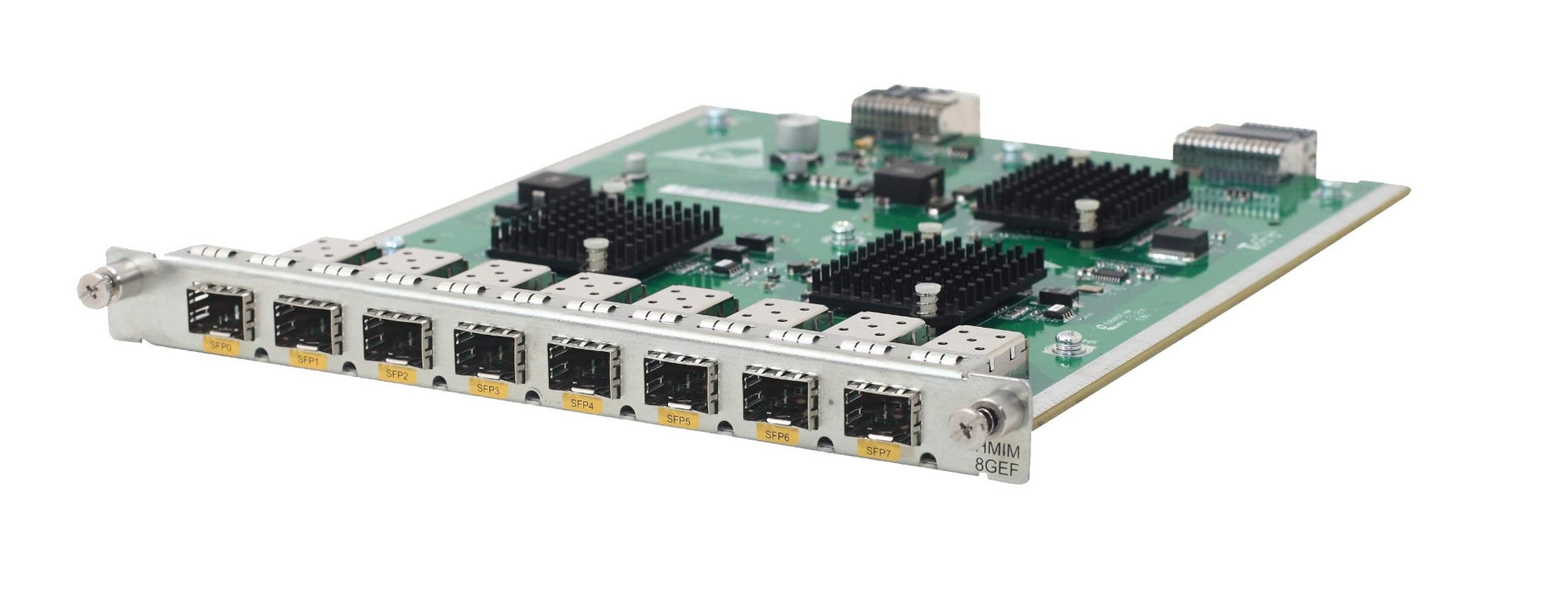

• HPE JG425A HMIM module with 8x 1GbE SFP ports on green circuit board
1 1

HPE

HPE JG425A | MSR 8-Port 1000BASE-X SFP LC Half-Height HMIM Module

JG425A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE JG425A is a half-height HMIM router module from the HPE FlexNetwork MSR family. It adds eight SFP-based Gigabit fibre ports with LC connectivity to selected MSR routers, and suits branch office, campus and data-centre edge deployments where fibre uplinks are needed and copper cabling is not suitable.

Each of the eight 1000BASE-X ports runs Gigabit Ethernet at 1 Gbps and accepts standard SFP transceivers, so the reach can be matched to the link. The module measures 210 x 239.9 x 19.8 mm and weighs about 0.8 kg. It is powered from the host router chassis through the HMIM slot, so it needs no separate power supply.

It is intended for HPE MSR3000 and MSR4000 series routers with HMIM slots. On the MSR4000 it takes up one half-height or one full-height slot, and up to eight modules can be installed per chassis. SFP transceivers are selected separately for the distance required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Adds eight Gigabit SFP fibre ports to selected MSR routers
- Accepts standard SFP transceivers for a choice of reach and distance
- Installs directly into the router HMIM slot
- Half-height form factor allows multiple modules in one chassis
- Powered by the host router, with no separate power supply
- Suited to fibre uplinks and switching at the WAN and LAN edge

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Manufacturer part number: JG425A
- Product type: Router expansion module (HMIM)
- Ports: 8 x 1000BASE-X SFP
- Connector type: LC (SFP)
- Ethernet technology: Gigabit Ethernet
- Maximum data transfer rate: 1 Gbps
- Form factor: Half-height HMIM
- Slot usage (MSR4000): 1 half-height or 1 full-height slot
- Compatibility: HPE MSR3000 and MSR4000 series routers
- Dimensions (W x D x H): 210 x 239.9 x 19.8 mm
- Weight: 800 g (0.798 kg)
- Power: Supplied by the host router chassis
- Environmental certification: REACH

FAQs

Q: Which routers does the JG425A work with?
A: It is designed for selected HPE MSR routers with HMIM slots, including the MSR3000 and MSR4000 series.

Q: Does it need a separate power supply?
A: No. The module is powered by the host MSR router chassis through the HMIM slot.

Q: Are SFP transceivers needed for the ports?
A: Yes. The eight 1000BASE-X ports use SFP transceivers with LC connectivity, chosen to suit the fibre type and distance of each link.

Q: How many can I install in an MSR4000 chassis?
A: Up to eight modules can be installed per MSR4000 chassis. Each takes up one half-height or one full-height slot.

Q: Is this a copper or fibre module?
A: It is a fibre module with eight SFP-based 1000BASE-X Gigabit ports and LC connectivity.
